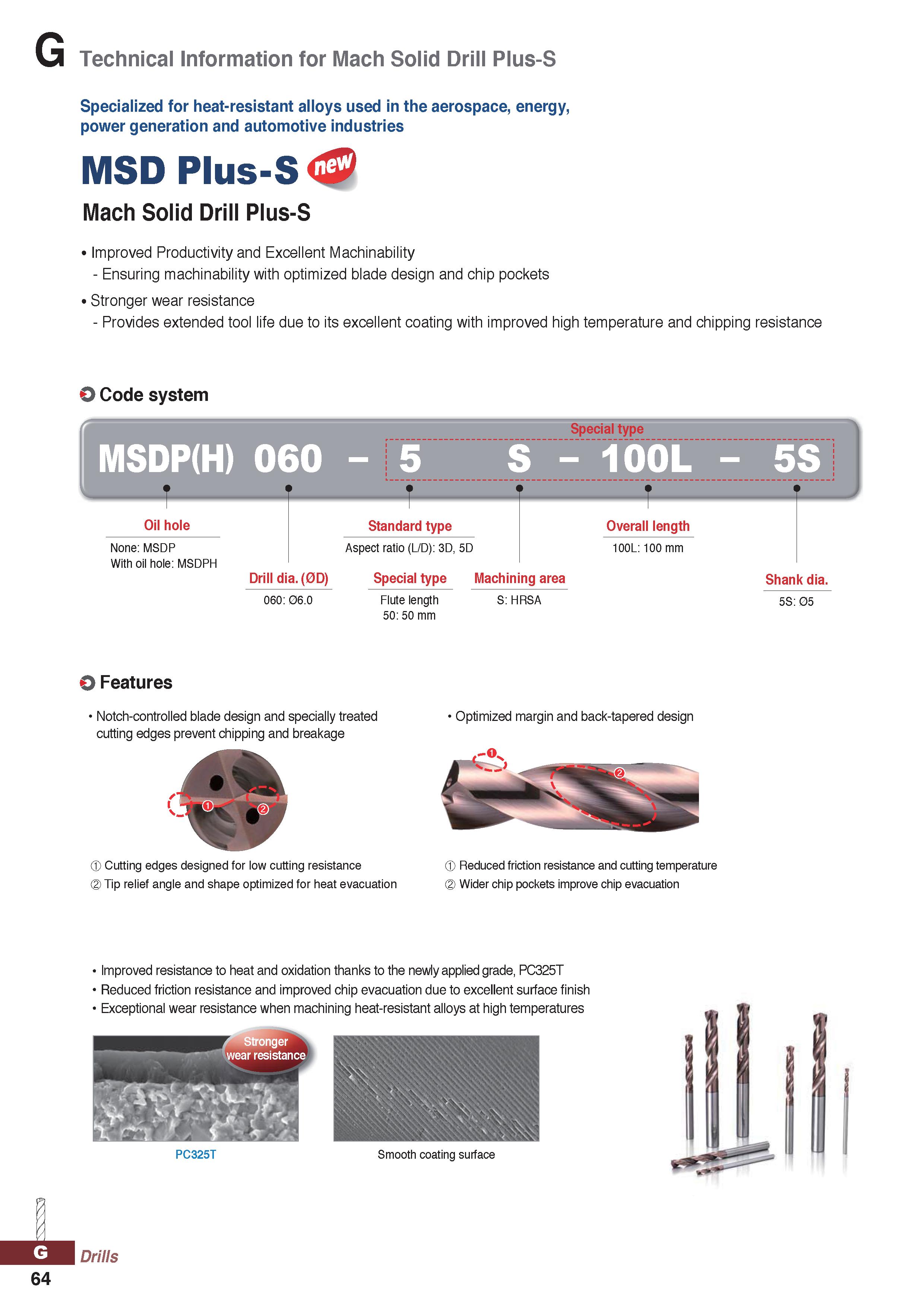

G Technical Information for Mach Solid Drill Plus-S Specialized for heat-resistant alloys used in the aerospace, energy, power generation and automotive industries MSD Plus-S Mach Solid Drill Plus-S Improved Productivity and Excellent Machinability - Ensuring machinability with optimized blade design and chip pockets Stronger wear resistance - Provides extended tool life due to its excellent coating with improved high temperature and chipping resistance O Code system MSDP(H) 060 - 5 Oil hole None: MSDP With oil hole: MSDPH Special type S - 100L - 5S Standard type Overall length Aspect ratio (L/D): 3D, 5D 1OOL: 1OO mm Drill dia. (0D) O6O: 06.O Special type Flute length 5O: 50 mm Machining area S: HRSA Shank dia. 5S: 05 O Features Notch-controlled blade design and specially treated cutting edges prevent chipping and breakage Cutting edges designed for low cutting resistance Tip relief angle and shape optimized for heat evacuation Optimized margin and back-tapered design -T Reduced friction resistance and cutting temperature Wider chip pockets improve chip evacuation Improved resistance to heat and oxidation thanks to the newly applied grade, PC325T Reduced friction resistance and improved chip evacuation due to excellent surface finish JL G Drills 64
