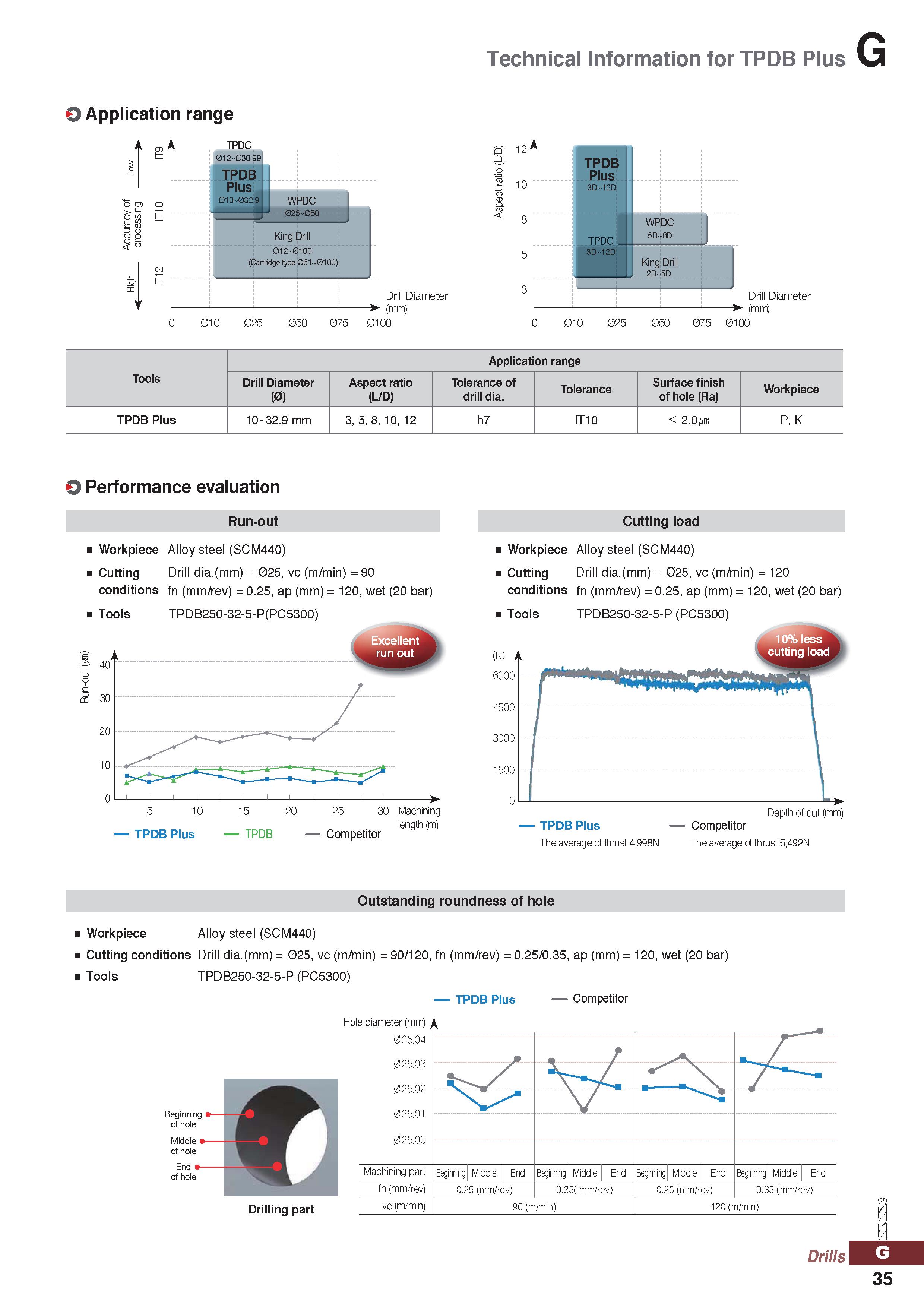

Technical Information for TPDB Plus Application range o CT &'S TPDC 012-030.99 I TPDB Plus 010-032.9 WPDC - 025-080 King Drill 012-0100 (Cartridge type 061-0100) Drill Diameter -> (mm) 010 025 050 075 0100 12 10 TPDB Plus 3D 12D TPDC . 3D-12D 010 WPDC 5D-8D King Drill 2D-5D 025 050 Drill Diameter -> (mm) 075 0100 8 5 3 0 0 Tools Application range Drill Diameter (0) Aspect ratio (L/D) Tolerance of drill dia. Tolerance Surface finish of hole (Ra) Workpiece TPDB Plus 10 - 32.9 mm 3, 5, 8, 10, 12 h7 IT10 2.0 Mm P, K O Performance evaluation Run-out Workpiece Alloy steel (SCM440) Cutti ng Drill dia.(mm) = 025, vc (m/min) = 90 cond itio ns fn (mm/rev) = 0.25, ap (mm) = 120, wet (20 bar) Tools TPDB250-32-5-P(PC5300) TPDB Plus TPDB Competitor Cutting load Workpiece Alloy steel (SCM440) Cutti ng Drill dia.(mm) = 025, vc (m/min) = 120 cond itio ns fn (mm/rev) = 0.25, ap (mm) = 120, wet (20 bar) Tools TPDB250-32-5-P (PC5300) Depth of cut (mm) TPDB Plus Competitor The average of thrust 4,998N The average of thrust 5,492N Outstanding roundness of hole Workpiece Alloy steel (SCM440) Cutting conditions Drill dia.(mm) = 025, vc (m/min) = 90/120, fn (mm/rev) = 0.25/0.35, ap (mm) = 120, wet (20 bar) Tools TPDB250-32-5-P (PC5300) Beginning of hole Middle i of hole Drilling part TPDB Plus Competitor Drills J. 35 End of hole
