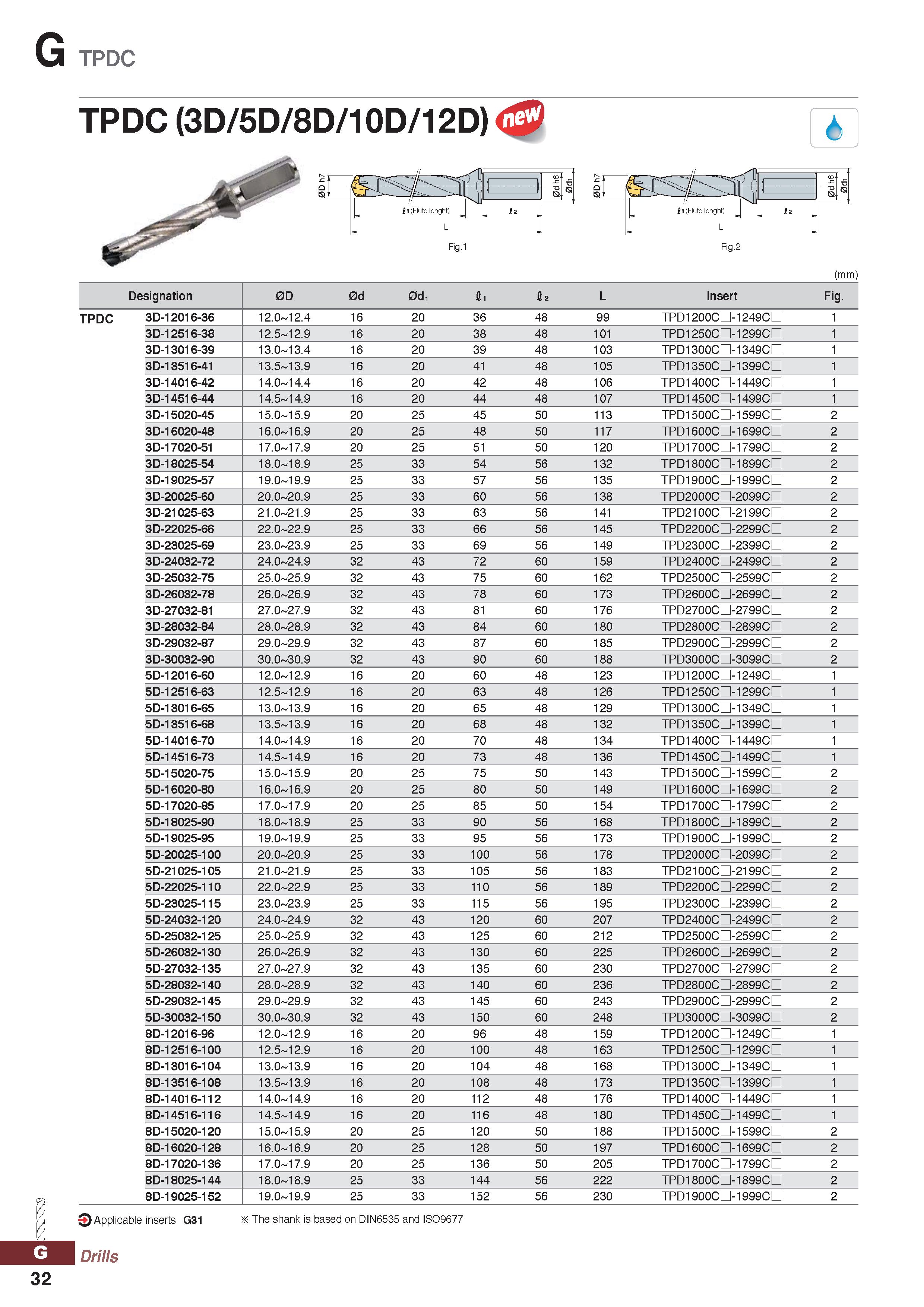

G TPDC TP DC (3D/5D/8D/1OD/12D) Fig.1 Fig.2 1 4 T l IS) £i (Flute lenght) i 2 L (mm) Designation 0D 0d 0d, Si S2 L Insert Fig. TPDC 3D-12016-36 12.0-12.4 16 20 36 48 99 TPD1200CD-1249CD 1 3D-12516-38 12.5-12.9 16 20 38 48 101 TPD1250CD-1299CD 1 3D-13016-39 13.0-13.4 16 20 39 48 103 TPD1300CD-1349CD 1 3D-13516-41 13.5-13.9 16 20 41 48 105 TPD1350CD-1399CD 1 3D-14016-42 14.0-14.4 16 20 42 48 106 TPD1400CD-1449CD 1 3D-14516-44 14.5-14.9 16 20 44 48 107 TPD1450CD-1499CD 1 3D-15020-45 15.0-15.9 20 25 45 50 113 TPD1500CD-1599CD 2 3D-16020-48 16.0-16.9 20 25 48 50 117 TPD1600CD-1699CD 2 3D-17020-51 17.0-17.9 20 25 51 50 120 TPD1700CD-1799CD 2 3D-18025-54 18.0-18.9 25 33 54 56 132 TPD1800CD-1899CD 2 3D-19025-57 19.0-19.9 25 33 57 56 135 TPD1900CD-1999CD 2 3D-20025-60 20.0-20.9 25 33 60 56 138 TPD2000CD-2099CD 2 3D-21025-63 21.0-21.9 25 33 63 56 141 TPD2100CD-2199CD 2 3D-22025-66 22.0-22.9 25 33 66 56 145 TPD2200CD-2299CD 2 3D-23025-69 23.0-23.9 25 33 69 56 149 TPD2300CD-2399CD 2 3D-24032-72 24.0-24.9 32 43 72 60 159 TPD2400CD-2499CD 2 3D-25032-75 25.0-25.9 32 43 75 60 162 TPD2500CD-2599CD 2 3D-26032-78 26.0-26.9 32 43 78 60 173 TPD2600CD-2699CD 2 3D-27032-81 27.0-27.9 32 43 81 60 176 TPD2700CD-2799CD 2 3D-28032-84 28.0-28.9 32 43 84 60 180 TPD2800CD-2899CD 2 3D-29032-87 29.0-29.9 32 43 87 60 185 TPD2900CD-2999CD 2 3D-30032-90 30.0-30.9 32 43 90 60 188 TPD3000CD-3099CD 2 5D-12016-60 12.0-12.9 16 20 60 48 123 TPD1200CD-1249CD 1 5D-12516-63 12.5-12.9 16 20 63 48 126 TPD1250CD-1299CD 1 5D-13016-65 13.0-13.9 16 20 65 48 129 TPD1300CD-1349CD 1 5D-13516-68 13.5-13.9 16 20 68 48 132 TPD1350CD-1399CD 1 5D-14016-70 14.0-14.9 16 20 70 48 134 TPD1400CD-1449CD 1 5D-14516-73 14.5-14.9 16 20 73 48 136 TPD1450CD-1499CD 1 5D-15020-75 15.0-15.9 20 25 75 50 143 TPD1500CD-1599CD 2 5D-16020-80 16.0-16.9 20 25 80 50 149 TPD1600CD-1699CD 2 5D-17020-85 17.0-17.9 20 25 85 50 154 TPD1700CD-1799CD 2 5D-18025-90 18.0-18.9 25 33 90 56 168 TPD1800CD-1899CD 2 5D-19025-95 19.0-19.9 25 33 95 56 173 TPD1900CD-1999CD 2 5D-20025-100 20.0-20.9 25 33 100 56 178 TPD2000CD-2099CD 2 5D-21025-105 21.0-21.9 25 33 105 56 183 TPD2100CD-2199CD 2 5D-22025-110 22.0-22.9 25 33 110 56 189 TPD2200CD-2299CD 2 5D-23025-115 23.0-23.9 25 33 115 56 195 TPD2300CD-2399CD 2 5D-24032-120 24.0-24.9 32 43 120 60 207 TPD2400CD-2499CD 2 5D-25032-125 25.0-25.9 32 43 125 60 212 TPD2500CD-2599CD 2 5D-26032-130 26.0-26.9 32 43 130 60 225 TPD2600CD-2699CD 2 5D-27032-135 27.0-27.9 32 43 135 60 230 TPD2700CD-2799CD 2 5D-28032-140 28.0-28.9 32 43 140 60 236 TPD2800CD-2899CD 2 5D-29032-145 29.0-29.9 32 43 145 60 243 TPD2900CD-2999CD 2 5D-30032-150 30.0-30.9 32 43 150 60 248 TPD3000CD-3099CD 2 8D-12016-96 12.0-12.9 16 20 96 48 159 TPD1200CD-1249CD 1 8D-12516-100 12.5-12.9 16 20 100 48 163 TPD1250CD-1299CD 1 8D-13016-104 13.0-13.9 16 20 104 48 168 TPD1300CD-1349CD 1 8D-13516-108 13.5-13.9 16 20 108 48 173 TPD1350CD-1399CD 1 8D-14016-112 14.0-14.9 16 20 112 48 176 TPD1400CD-1449CD 1 8D-14516-116 14.5-14.9 16 20 116 48 180 TPD1450CD-1499CD 1 8D-15020-120 15.0-15.9 20 25 120 50 188 TPD1500CD-1599CD 2 8D-16020-128 16.0-16.9 20 25 128 50 197 TPD1600CD-1699CD 2 8D-17020-136 17.0-17.9 20 25 136 50 205 TPD1700CD-1799CD 2 8D-18025-144 18.0-18.9 25 33 144 56 222 TPD1800CD-1899CD 2 8D-19025-152 19.0-19.9 25 33 152 56 230 TPD1900CD-1999CD 2 J. 3 Applicable inserts G31 Drills The shank is based on DIN6535 and IS09677 32
