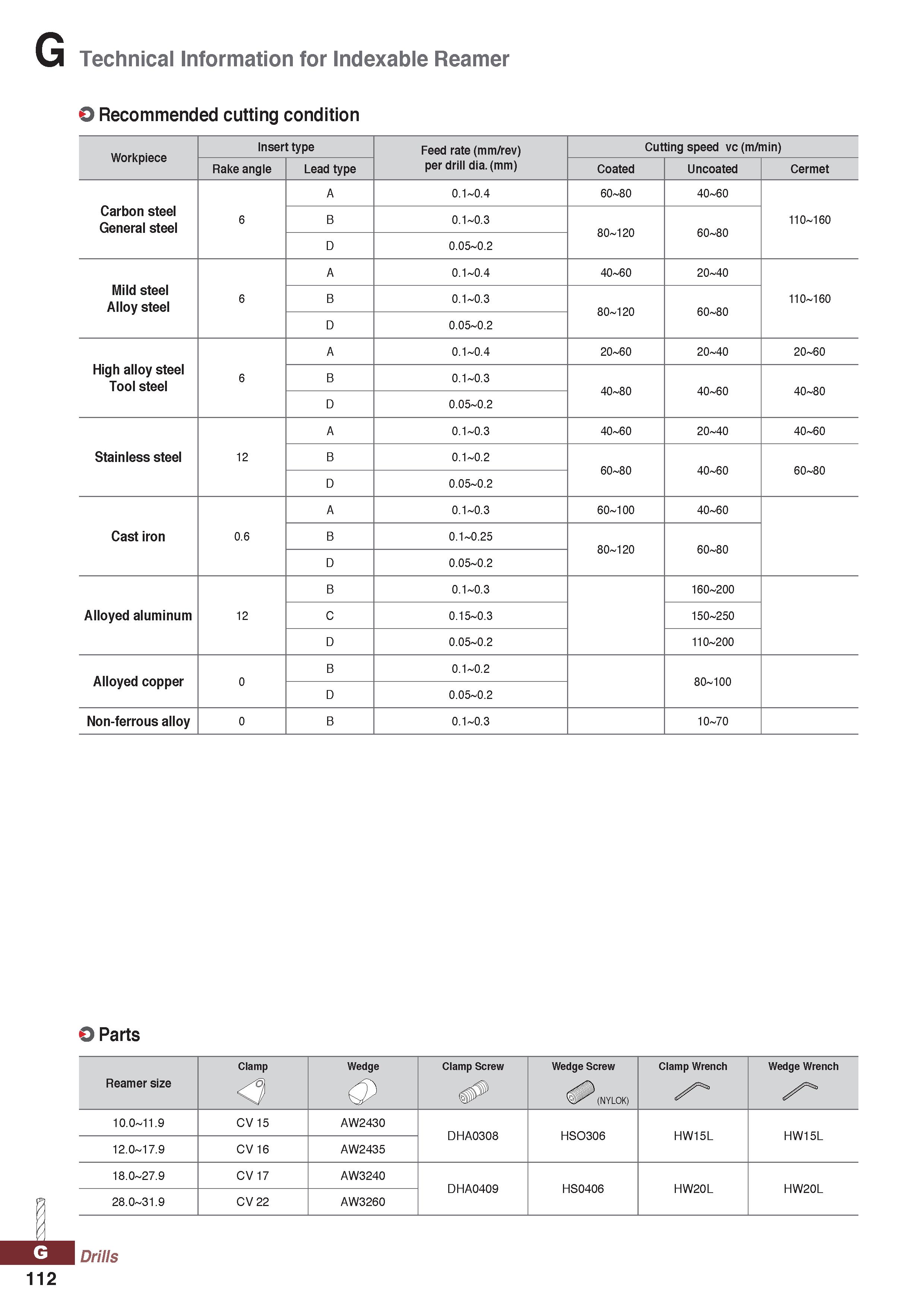

G Technical Information for Indexable Reamer O Recommended cutting condition Workpiece Insert type Feed rate (mm/rev) per drill dia. (mm) Cutting speed vc (m/min) Rake angle Lead type Coated Uncoated Cermet Carbon steel General steel 6 A 0.1-0.4 60-80 40-60 110-160 B 0.1-0.3 80-120 60-80 D 0.05-0.2 Mild steel Alloy steel 6 A 0.1-0.4 40-60 20-40 110-160 B 0.1-0.3 80-120 60-80 D 0.05-0.2 High alloy steel Tool steel 6 A 0.1-0.4 20-60 20-40 20-60 B 0.1-0.3 40-80 40-60 40-80 D 0.05-0.2 Stainless steel 12 A 0.1-0.3 40-60 20-40 40-60 B 0.1-0.2 60-80 40-60 60-80 D 0.05-0.2 Cast iron 0.6 A 0.1-0.3 60-100 40-60 B 0.1-0.25 80-120 60-80 D 0.05-0.2 Alloyed aluminum 12 B 0.1-0.3 160-200 C 0.15-0.3 150-250 D 0.05-0.2 110-200 Alloyed copper 0 B 0.1-0.2 80-100 D 0.05-0.2 Non-ferrous alloy 0 B 0.1-0.3 10-70 Parts Reamer size Clamp 3 Wedge a' Clamp Screw Wedge Screw (NYLOK) Clamp Wrench Wedge Wrench 10.0-11.9 CV 15 AW2430 DHA0308 HSO306 HW15L HW15L 12.0-17.9 CV 16 AW2435 18.0-27.9 CV 17 AW3240 DHA0409 HS0406 HW20L HW20L 28.0-31.9 CV 22 AW3260 112 .1 Drills
