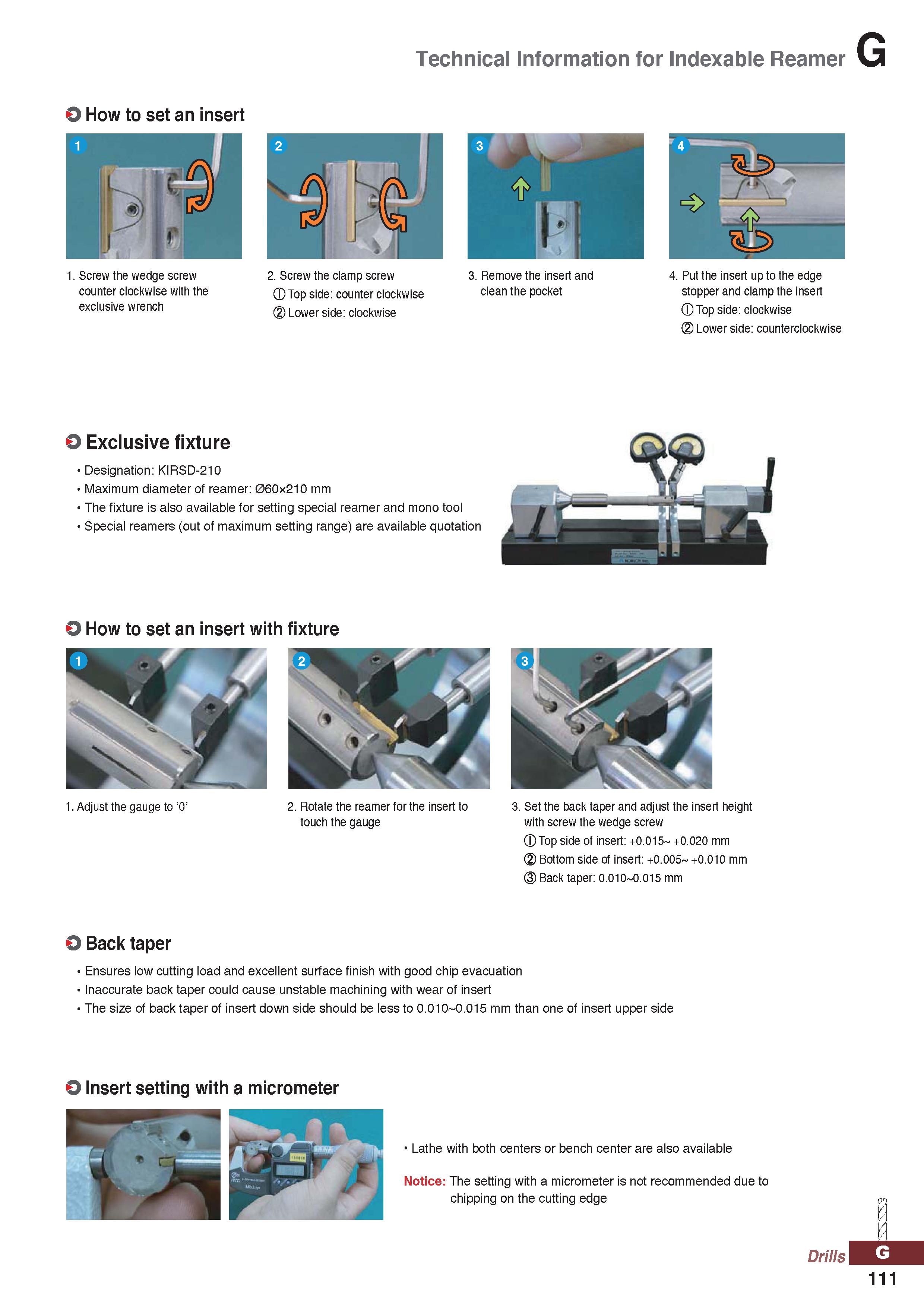

Technical Information for Indexable Reamer O How to set an insert 1. Screw the wedge screw counter clockwise with the exclusive wrench 2. Screw the clamp screw Top side: counter clockwise 2) Lower side: clockwise 3. Remove the insert and clean the pocket 4. Put the insert up to the edge stopper and clamp the insert 0 Top side: clockwise Lower side: counterclockwise O Exclusive fixture Designation: KIRSD-210 Maximum diameter of reamer: 060x210 mm The fixture is also available for setting special reamer and mono tool Special reamers (out of maximum setting range) are available quotation O How to set an insert with fixture 1. Adjust the gauge to ‘0’ 2. Rotate the reamer for the insert to 3. Set the back taper and adjust the insert height touch the gauge with screw the wedge screw Top side of insert: +0.015- +0.020 mm Bottom side of insert: +0.005- +0.010 mm Back taper: 0.010-0.015 mm O Back taper Ensures low cutting load and excellent surface finish with good chip evacuation Inaccurate back taper could cause unstable machining with wear of insert The size of back taper of insert down side should be less to 0.010-0.015 mm than one of insert upper side O Insert setting with a micrometer Lathe with both centers or bench center are also available Notice: The setting with a micrometer is not recommended due to chipping on the cutting edge J. Drills 111
