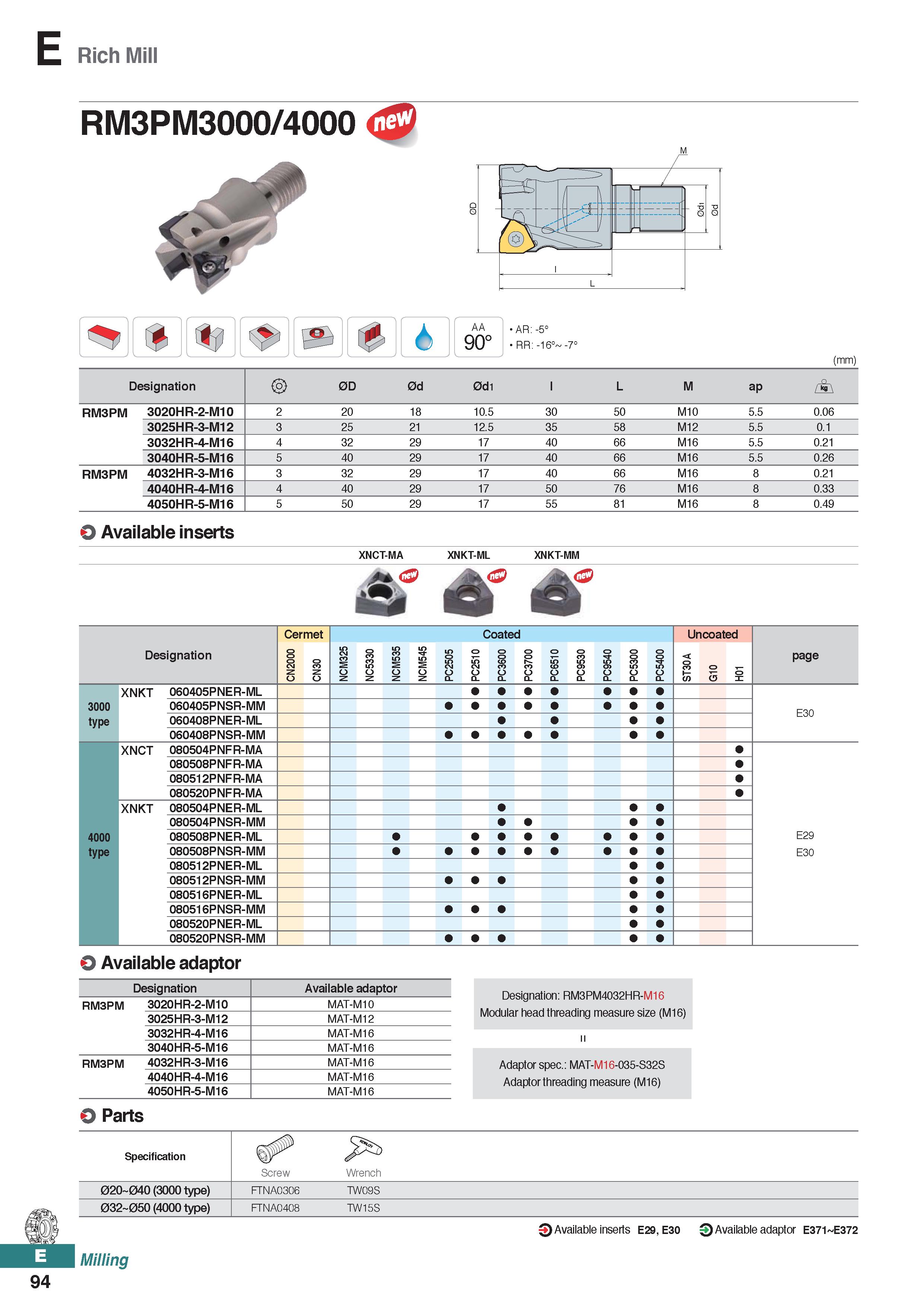

E Rich Mill RM3PM3000/4000 AA 90° AR: -5° RR: -16° -7° (mm) Designation 0D 0d 0d1 l L M ap /i\ RM3PM 3020HR-2-M10 2 20 18 10.5 30 50 M10 5.5 0.06 3025HR-3-M12 3 25 21 12.5 35 58 M12 5.5 0.1 3032HR-4-M16 4 32 29 17 40 66 M16 5.5 0.21 3040HR-5-M16 5 40 29 17 40 66 M16 5.5 0.26 RM3PM 4032HR-3-M16 3 32 29 17 40 66 M16 8 0.21 4040HR-4-M16 4 40 29 17 50 76 M16 8 0.33 4050HR-5-M16 5 50 29 17 55 81 M16 8 0.49 O Available inserts XNCT-MA XNKT-ML XNKT-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 XNKT 060405PNER-ML 3000 060405PNSR-MM type 060408PNER-ML 060408PNSR-MM XNCT 080504PNFR-MA 080508PNFR-MA 080512PNFR-MA 080520PNFR-MA XNKT 080504PNER-ML 080504PNSR-MM 4000 080508PNER-ML E29 type 080508PNSR-MM E30 080512PNER-ML 080512PNSR-MM 080516PNER-ML 080516PNSR-MM 080520PNER-ML 080520PNSR-MM O Available adaptor Designation Available adaptor RM3PM 3020HR-2-M10 MAT-M10 3025HR-3-M12 MAT-M12 3032HR-4-M16 MAT-M16 3040HR-5-M16 MAT-M16 RM3PM 4032HR-3-M16 MAT-M16 4040HR-4-M16 MAT-M16 4050HR-5-M16 MAT-M16 Designation: RM3PM4032HR-M16 Modular head threading measure size (M16) Adaptor spec.: MAT-M16-035-S32S Adaptor threading measure (M16) O Parts Specification Screw Wrench 02O 04O (3000 type) FTNA0306 TW09S 032 05O (4000 type) FTNA0408 TW15S Milling Q Available inserts E29, E30 O Available adaptor E371 E372 94
