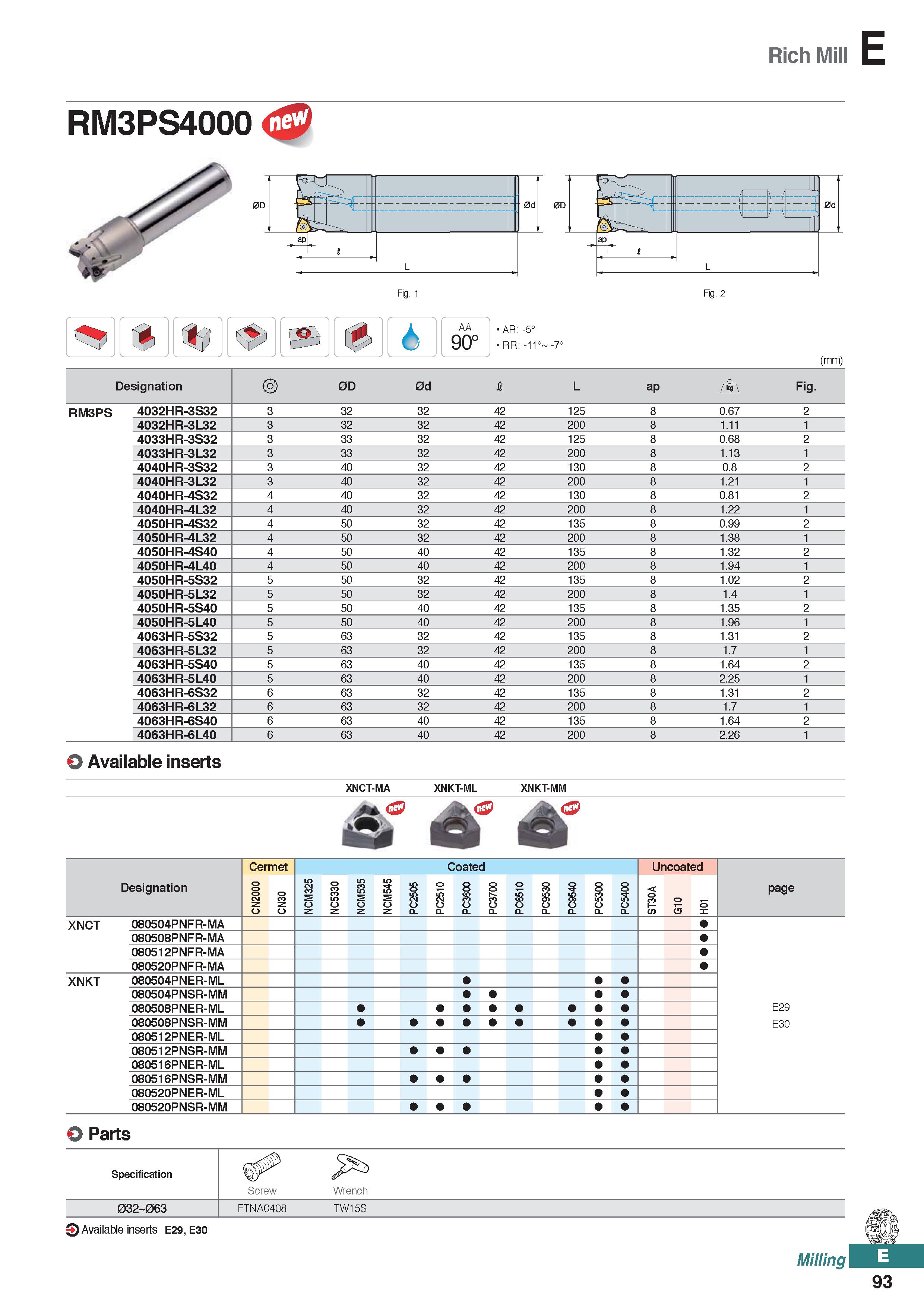

Rich Mill E if' 6 AA 90° AR: -5° RR: -11°- -7° (mm) Designation 0D 0d I L ap Fig. RM3PS 4032HR-3S32 3 32 32 42 125 8 0.67 2 4032HR-3L32 3 32 32 42 200 8 1.11 1 4033HR-3S32 3 33 32 42 125 8 0.68 2 4033HR-3L32 3 33 32 42 200 8 1.13 1 4040HR-3S32 3 40 32 42 130 8 0.8 2 4040HR-3L32 3 40 32 42 200 8 1.21 1 4040HR-4S32 4 40 32 42 130 8 0.81 2 4040HR-4L32 4 40 32 42 200 8 1.22 1 4050HR-4S32 4 50 32 42 135 8 0.99 2 4050HR-4L32 4 50 32 42 200 8 1.38 1 4050HR-4S40 4 50 40 42 135 8 1.32 2 4050HR-4L40 4 50 40 42 200 8 1.94 1 4050HR-5S32 5 50 32 42 135 8 1.02 2 4050HR-5L32 5 50 32 42 200 8 1.4 1 4050HR-5S40 5 50 40 42 135 8 1.35 2 4050HR-5L40 5 50 40 42 200 8 1.96 1 4063HR-5S32 5 63 32 42 135 8 1.31 2 4063HR-5L32 5 63 32 42 200 8 1.7 1 4063HR-5S40 5 63 40 42 135 8 1.64 2 4063HR-5L40 5 63 40 42 200 8 2.25 1 4063HR-6S32 6 63 32 42 135 8 1.31 2 4063HR-6L32 6 63 32 42 200 8 1.7 1 4063HR-6S40 6 63 40 42 135 8 1.64 2 4063HR-6L40 6 63 40 42 200 8 2.26 1 O Available inserts XNCT-MA XNKT-ML XNKT-MM Q Designation Cermet Coated Uncoated page CN2000 CN30 5 3 S C N 0 3 3 5 C N 55 34 55 MM CC z z 5 0 5 C P 0 51 CN C CL 6 3 C P 0 0 7 3 C CL 0000 1 CO o 5553 6995 CCCC CL CL CL CL 0 0 4 5 C CL A o 3 T 0) 01 10 O I XNCT 080504PNFR-MA 080508PNFR-MA 080512PNFR-MA 080520PNFR-MA XNKT 080504PNER-ML 080504PNSR-MM 080508PNER-ML E29 080508PNSR-MM E30 080512PNER-ML 080512PNSR-MM 080516PNER-ML 080516PNSR-MM 080520PNER-ML 080520PNSR-MM O Parts Specification Screw Wrench 032 063 FTNA0408 TW15S Q Available inserts E29, E30 Milling 93
