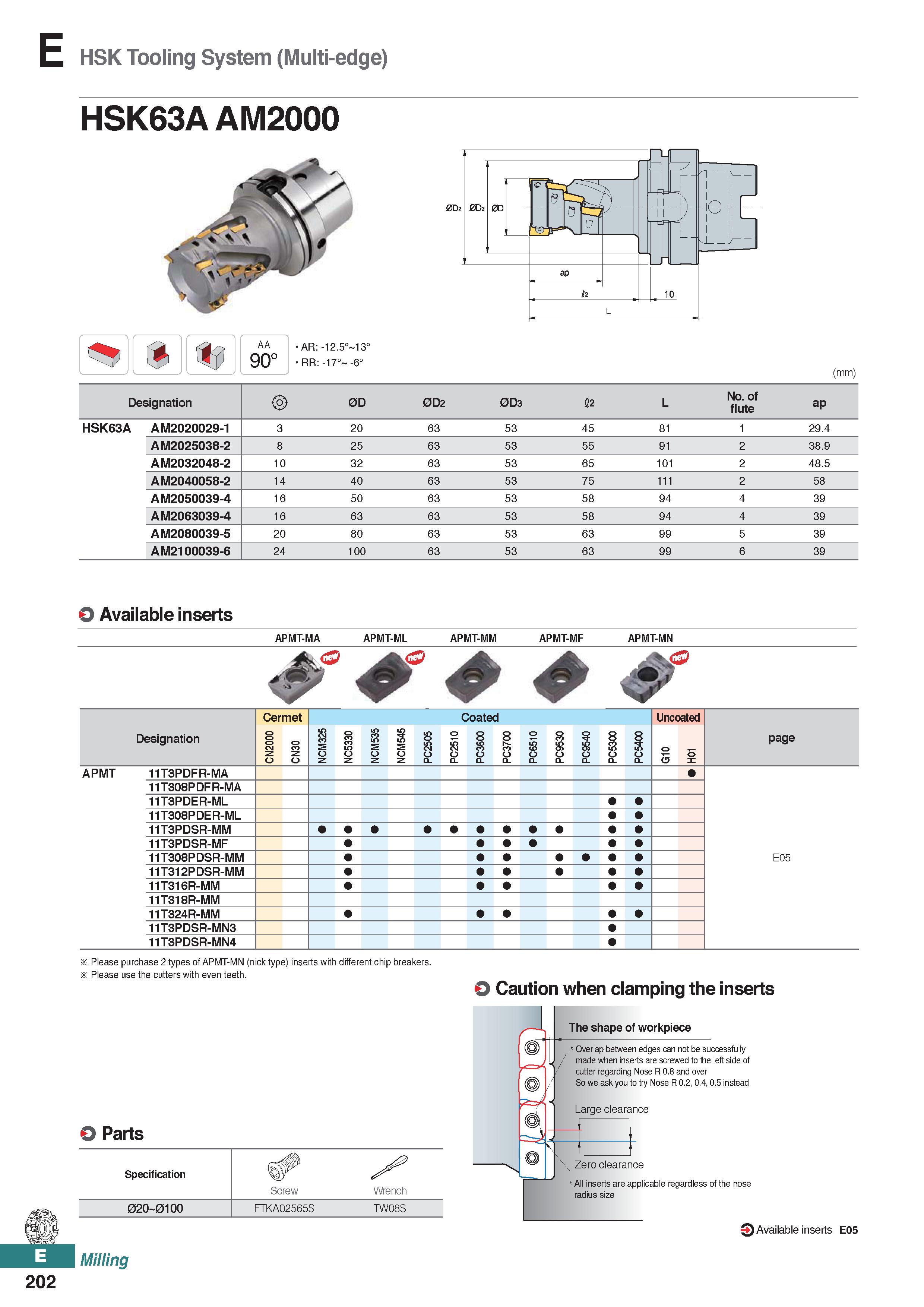

E HSK Tooling System (Multi-edge) HSK63A AM2000 AA 90° AR: -12.5° 13° RR: -17° -6° (mm) Designation 2> 0D 0D2 0D3 12 L No. of flute ap HSK63A AM2020029-1 3 20 63 53 45 81 1 29.4 AM2025038-2 8 25 63 53 55 91 2 38.9 AM2032048-2 10 32 63 53 65 101 2 48.5 AM2040058-2 14 40 63 53 75 111 2 58 AM2050039-4 16 50 63 53 58 94 4 39 AM2063039-4 16 63 63 53 58 94 4 39 AM2080039-5 20 80 63 53 63 99 5 39 AM2100039-6 24 100 63 53 63 99 6 39 O Available inserts APMT-MA APMT-ML APMT-MM APMT-MF APMT-MN Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 O 5 01 X APMT 11T3PDFR-MA 11T308PDFR-MA 11T3PDER-ML 11T308PDER-ML 11T3PDSR-MM 11T3PDSR-MF 11T308PDSR-MM E05 11T312PDSR-MM 11T316R-MM 11T318R-MM 11T324R-MM 11T3PDSR-MN3 11T3PDSR-MN4 Please purchase 2 types of APMT-MN (nick type) inserts with different chip breakers. Please use the cutters with even teeth. O Caution when clamping the inserts O Parts Specification Screw Wrench 02O 01 OO FTKA02565S TW08S The shape of workpiece Overlap between edges can not be successfully made when inserts are screwed to the left side of cutter regarding Nose R 0.8 and over So we ask you to try Nose R 0.2, 0.4,0.5 instead Large clearance Zero clearance All inserts are applicable regardless of the nose radius size 9 Available inserts E05 Milling 202
