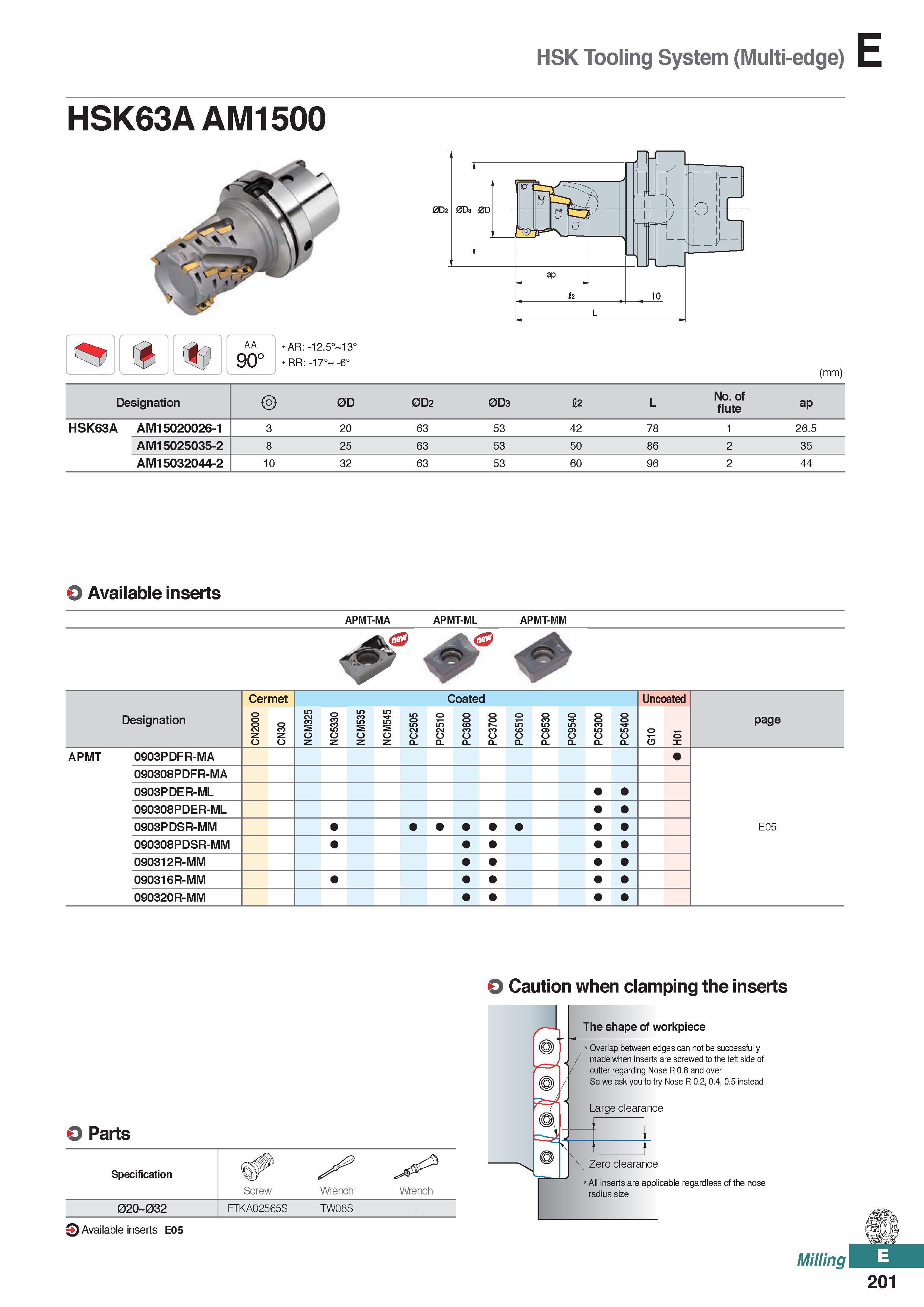

HSK Tooling System (Multi-edge) HSK63A AM1500 AA 90° AR: -12.5° 13° RR: -17° -6° (mm) Designation 0D 0D2 0D3 12 L No. of flute ap HSK63A AM15020026-1 3 20 63 53 42 78 1 26.5 AM15025035-2 8 25 63 53 50 86 2 35 AM15032044-2 10 32 63 53 60 96 2 44 O Available inserts APMT-MA APMT-ML APMT-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 O G1 01 X APMT 0903PDFR-MA 090308PDFR-MA 0903PDER-ML 090308PDER-ML 0903PDSR-MM E05 090308PDSR-MM 090312R-MM 090316R-MM 090320R-MM O Parts Specification Screw Wrench Wrench 02O 032 FTKA02565S TW08S - 9 Available inserts E05 O Caution when clamping the inserts The shape of workpiece Overlap between edges can not be successfully made when inserts are screwed to the left side of cutter regarding Nose R 0.8 and over So we ask you to try Nose R 0.2,0.4, 0.5 instead Large clearance Zero clearance All inserts are applicable regardless of the nose radius size Milling 201
