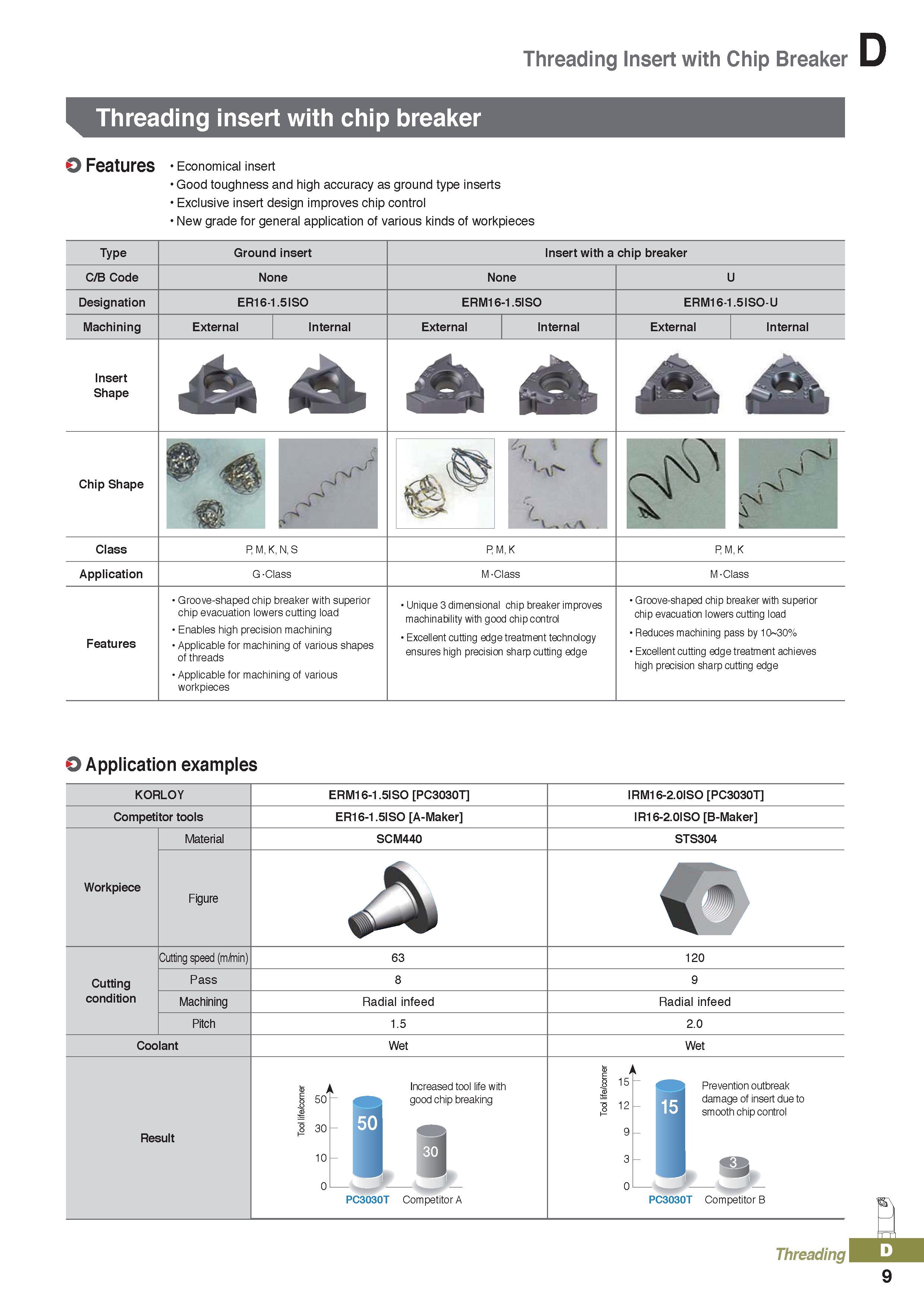

Threading Insert with Chip Breaker Threading insert with chip breaker Features Economical insert Good toughness and high accuracy as ground type inserts Exclusive insert design improves chip control New grade for general application of various kinds of workpieces Type Ground insert Insert with a chip breaker C/B Code None None Designation ER16-1.5ISO ERM16-1.5ISO ERM16-1.5ISO-U Machining External Internal External Internal External Internal Insert Shape in , Chip Shape Class P M, K, N, S P M, K P, M, K Application G-Class M-Class M-Class Features Groove-shaped chip breaker with superior chip evacuation lowers cutting load Enables high precision machining Applicable for machining of various shapes of threads Applicable for machining of various workpieces Unique 3 dimensional chip breaker improves machinability with good chip control Excellent cutting edge treatment technology ensures high precision sharp cutting edge Groove-shaped chip breaker with superior chip evacuation lowers cutting load Reduces machining pass by 10 30% Excellent cutting edge treatment achieves high precision sharp cutting edge U Application examples KORLOY ERM16-1.5ISO PC3030T IRM16-2.0ISO PC3030T Competitor tools ER16-1.5ISO A-Maker IR16-2.0ISO B-Maker Workpiece Material SCM440 STS304 Figure A (5 Cutting condition Cutting speed (m/min) 63 120 Pass 8 9 Machining Radial infeed Radial infeed Pitch 1.5 2.0 Coolant Wet Wet Result is A Increased tool life with 1 50 good chip breaking ° 30 50 10 - oL PC3030T Competitor A > 15 IB "s 12 o 1 £9 3 0 Prevention outbreak damage of insert due to 15 smooth chip control L p PC3030T Competitor B Threading Jm 9
