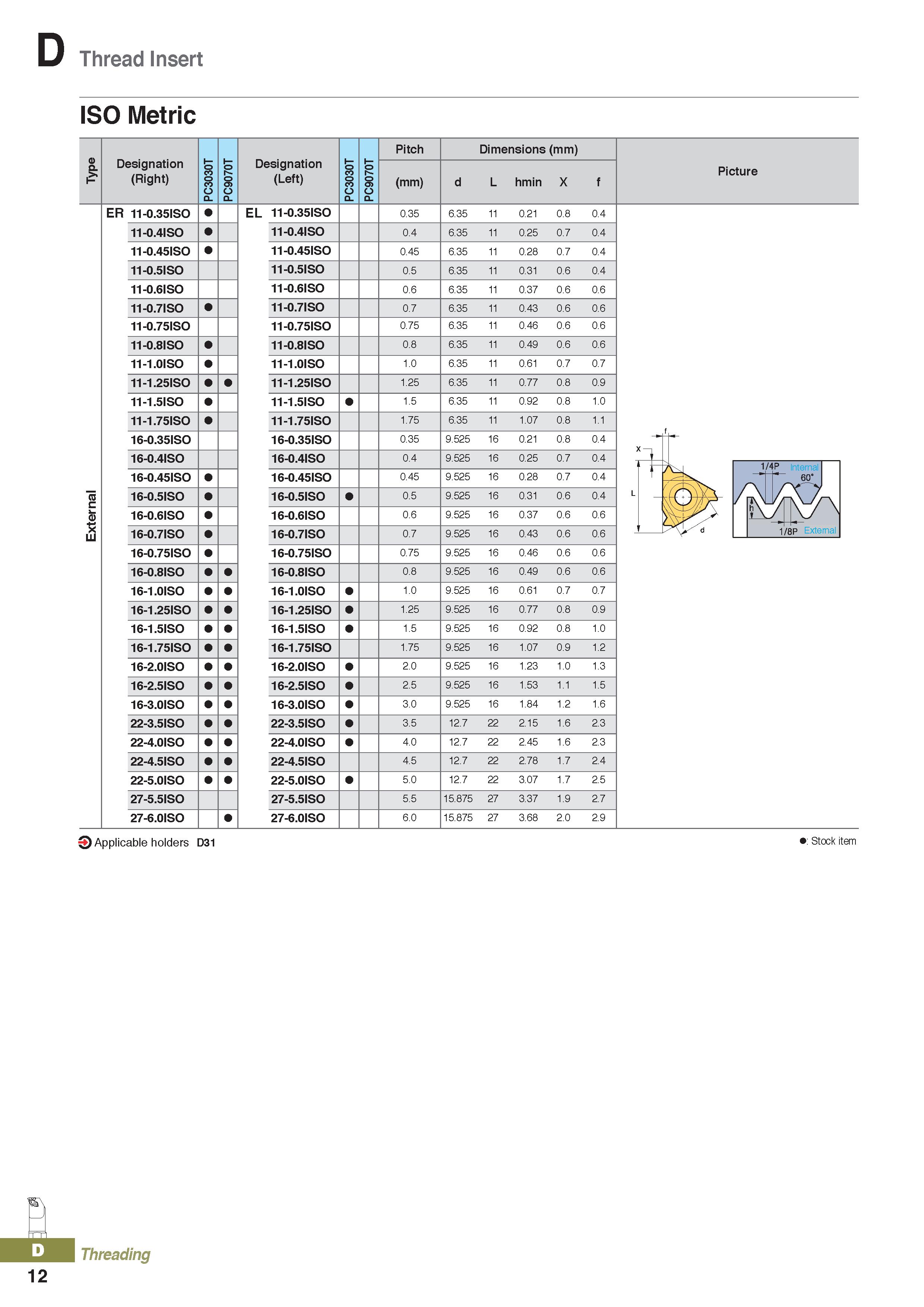

396 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.D12

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. D12 0396 Lab2u

Thread Insert ISO Metric Designation (Right) PC3030T PC9070T Designation (Left) PC3030T PC9070T Pitch Dimensions (mm) (mm) d L hmin X f ER 11-0.35ISO EL 11-0.35ISO 0.35 6.35 11 0.21 0.8 0.4 11-0.4ISO 11-0.4ISO 0.4 6.35 11 0.25 0.7 0.4 11-0.45ISO 11-0.45ISO 0.45 6.35 11 0.28 0.7 0.4 11-0.5ISO 11-0.5ISO 0.5 6.35 11 0.31 0.6 0.4 11-0.6ISO 11-0.6ISO 0.6 6.35 11 0.37 0.6 0.6 11-0.7ISO 11-0.7ISO 0.7 6.35 11 0.43 0.6 0.6 11-0.75ISO 11-0.75ISO 0.75 6.35 11 0.46 0.6 0.6 11-0.8ISO 11-0.8ISO 0.8 6.35 11 0.49 0.6 0.6 11-1.0ISO 11-1.0ISO 1.0 6.35 11 0.61 0.7 0.7 11-1.25ISO 11-1.25ISO 1.25 6.35 11 0.77 0.8 0.9 11-1.5ISO 11-1.5ISO 1.5 6.35 11 0.92 0.8 1.0 11-1.75ISO 11-1.75ISO 1.75 6.35 11 1.07 0.8 1.1 16-0.35ISO 16-0.35ISO 0.35 9.525 16 0.21 0.8 0.4 16-0.4ISO 16-0.4ISO 0.4 9.525 16 0.25 0.7 0.4 16-0.45ISO 16-0.45ISO 0.45 9.525 16 0.28 0.7 0.4 16-0.5ISO 16-0.5ISO 0.5 9.525 16 0.31 0.6 0.4 16-0.6ISO 16-0.6ISO 0.6 9.525 16 0.37 0.6 0.6 16-0.7ISO 16-0.7ISO 0.7 9.525 16 0.43 0.6 0.6 16-0.75ISO 16-0.75ISO 0.75 9.525 16 0.46 0.6 0.6 16-0.8ISO 16-0.8ISO 0.8 9.525 16 0.49 0.6 0.6 16-1.0ISO 16-1.0ISO 1.0 9.525 16 0.61 0.7 0.7 16-1.25ISO 16-1.25ISO 1.25 9.525 16 0.77 0.8 0.9 16-1.5ISO 16-1.5ISO 1.5 9.525 16 0.92 0.8 1.0 16-1.75ISO 16-1.75ISO 1.75 9.525 16 1.07 0.9 1.2 16-2.0ISO 16-2.0ISO 2.0 9.525 16 1.23 1.0 1.3 16-2.5ISO 16-2.5ISO 2.5 9.525 16 1.53 1.1 1.5 16-3.0ISO 16-3.0ISO 3.0 9.525 16 1.84 1.2 1.6 22-3.5ISO 22-3.5ISO 3.5 12.7 22 2.15 1.6 2.3 22-4.0ISO 22-4.0ISO 4.0 12.7 22 2.45 1.6 2.3 22-4.5ISO 22-4.5ISO 4.5 12.7 22 2.78 1.7 2.4 22-5.0ISO 22-5.0ISO 5.0 12.7 22 3.07 1.7 2.5 27-5.5ISO 27-5.5ISO 5.5 15.875 27 3.37 1.9 2.7 27-6.0ISO 27-6.0ISO 6.0 15.875 27 3.68 2.0 2.9 Picture Internal External 0 Applicable holders D31 : Stock item .L Threading 12
