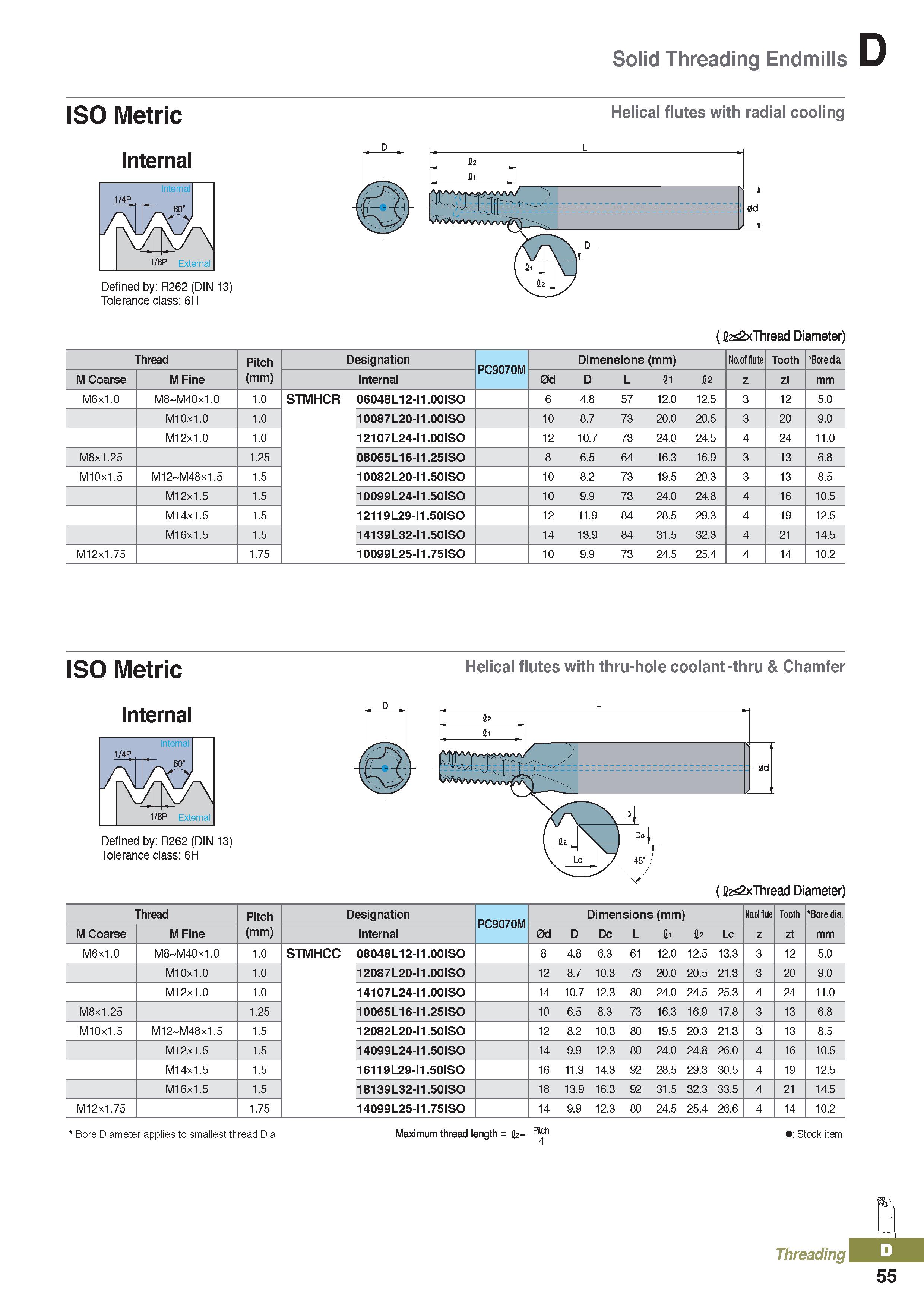

Solid Threading Endmills ISO Metric Internal Helical flutes with radial cooling Defined by: R262 (DIN 13) Tolerance class: 6H (flz xThread Diameter) Thread Pitch Designation PC9070M Dimensions (mm) No.of flute Tooth Bore dia. M Coarse M Fine (mm) Internal 0d D L 11 12 z zt mm M6x1.0 M8 M40x1.0 1.0 STMHCR 06048L12-I1.00ISO 6 4.8 57 12.0 12.5 3 12 5.0 M10x1.0 1.0 10087L20-I1.00ISO 10 8.7 73 20.0 20.5 3 20 9.0 M12x1.0 1.0 12107L24-I1.00ISO 12 10.7 73 24.0 24.5 4 24 11.0 M8x1.25 1.25 08065L16-I1.25ISO 8 6.5 64 16.3 16.9 3 13 6.8 M10x1.5 M12 M48x1.5 1.5 10082L20-I1.50ISO 10 8.2 73 19.5 20.3 3 13 8.5 M12x1.5 1.5 10099L24-I1.50ISO 10 9.9 73 24.0 24.8 4 16 10.5 M14x1.5 1.5 12119L29-I1.50ISO 12 11.9 84 28.5 29.3 4 19 12.5 M16x1.5 1.5 14139L32-I1.50ISO 14 13.9 84 31.5 32.3 4 21 14.5 M12x1.75 1.75 10099L25-I1.75ISO 10 9.9 73 24.5 25.4 4 14 10.2 ISO Metric Internal Helical flutes with thru-hole coolant-thru & Chamfer Defined by: R262 (DIN 13) Tolerance class: 6H (fl2s2xThread Diameter) Thread Pitch Designation PC9070M Dimensions (mm) No.of flute Tooth Bore dia. M Coarse M Fine (mm) Internal 0d D Dc L I fe Lc z zt mm M6x1.0 M8 M40x1.0 1.0 STMHCC 08048L12-I1.00ISO 8 4.8 6.3 61 12.0 12.5 13.3 3 12 5.0 M10x1.0 1.0 12087L20-I1.00ISO 12 8.7 10.3 73 20.0 20.5 21.3 3 20 9.0 M12x1.0 1.0 14107L24-I1.00ISO 14 10.7 12.3 80 24.0 24.5 25.3 4 24 11.0 M8x1.25 1.25 10065L16-I1.25ISO 10 6.5 8.3 73 16.3 16.9 17.8 3 13 6.8 M10x1.5 M12 M48x1.5 1.5 12082L20-I1.50ISO 12 8.2 10.3 80 19.5 20.3 21.3 3 13 8.5 M12x1.5 1.5 14099L24-I1.50ISO 14 9.9 12.3 80 24.0 24.8 26.0 4 16 10.5 M14x1.5 1.5 16119L29-I1.50ISO 16 11.9 14.3 92 28.5 29.3 30.5 4 19 12.5 M16x1.5 1.5 18139L32-I1.50ISO 18 13.9 16.3 92 31.5 32.3 33.5 4 21 14.5 M12x1.75 1.75 14099L25-I1.75ISO 14 9.9 12.3 80 24.5 25.4 26.6 4 14 10.2 Bore Diameter applies to smallest thread Dia Maximum thread length = Qz- Pitch 4 : Stock item Jm Threading 55
