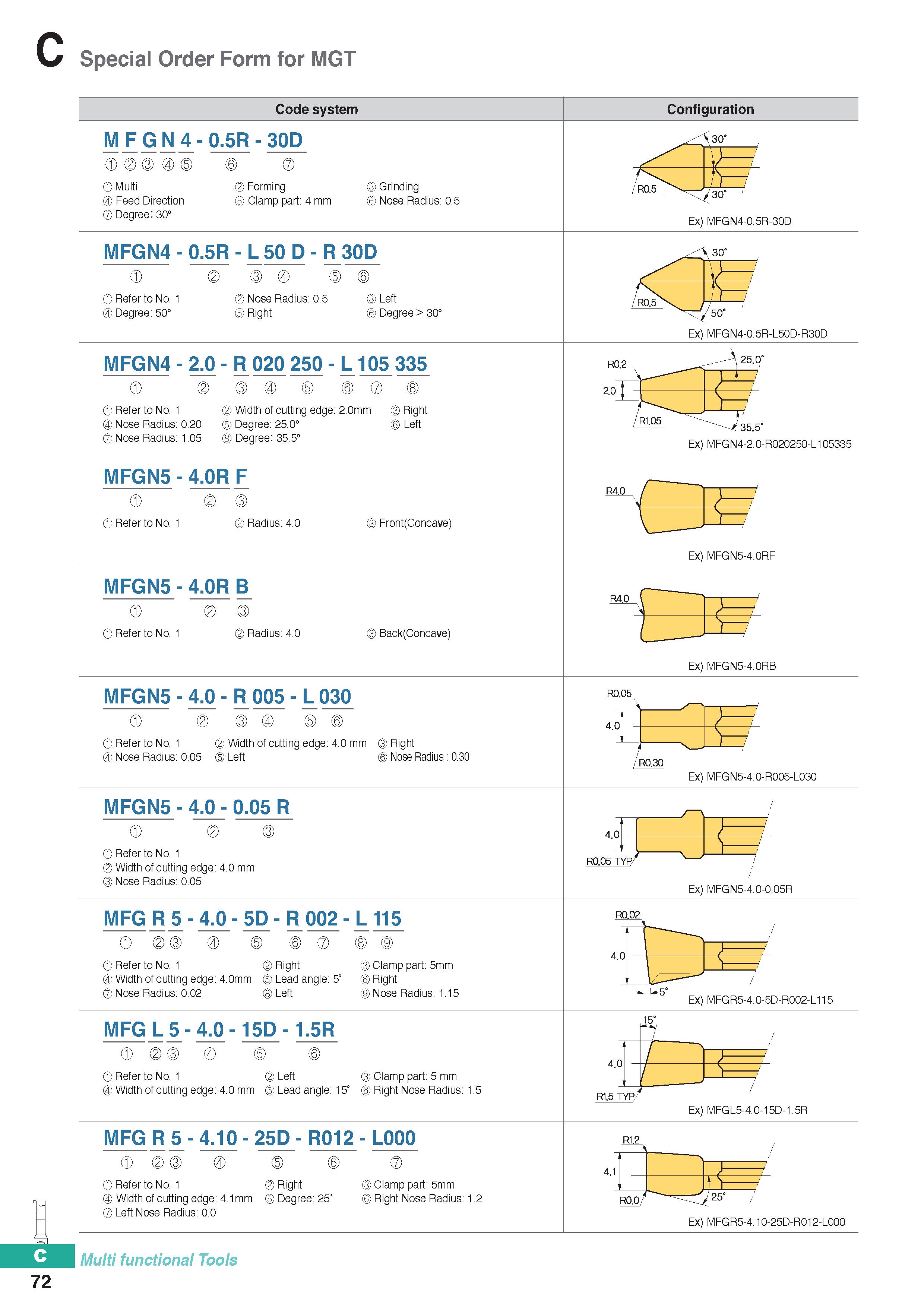

Special Order Form for MGT Code system Configuration MFGN4-0.5R-30D Multi Feed Direction Degree: 30° Forming Clamp part: 4 mm Grinding Nose Radius: 0.5 MFGN4 - 0.5R - L 50D - R30D Nose Radius: 0.5 Right Refer to No. 1 Degree: 50° Left Degree > 30° MFGN4 -2.0-R 020 250 -L 105 335 Refer to No. 1 Width of cutting edge: 2.0mm Right Nose Radius: 0.20 Degree: 25.0° Left Nose Radius: 1.05 Degree: 35.5° i \ / / / \ / / ro.5 \ J ) / Ex) MFGN4-0.5R-30D 30" Ex) MFGN4-0.5R-L50D-R30D 25.0" 35.5” Ex) MFGN4-2.0-R020250-L105335 MFGN5-4.0RF Refer to No. 1 Radius: 4.0 Front(Concave) R4.0 Ex) MFGN5-4.0RF MFGN5-4.0RB Refer to No. 1 Radius: 4.0 MFGN5 -4.0-R 005 - L 030 Back(Concave) Refer to No. 1 Width of cutting edge: 4.0 mm Right Nose Radius: 0.05 Left Nose Radius : 0.30 R4.0 Ex) MFGN5-4.0RB R0-05 4.0 R0.30 Ex) MFGN5-4.0-R005-L030 MFGN5 - 4.0 - 0.05 R Refer to No. 1 Width of cutting edge: 4.0 mm Nose Radius: 0.05 4.0 R0.05 TYP/ Ex) MFGN5-4.0-0.05R 72 MFG R5-4.0-5D-R002-L 115 Refer to No. 1 Right Clamp part: 5mm Width of cutting edge: 4.0mm Lead angle: 5’ Right Nose Radius: 0.02 Left Nose Radius: 1.15 MFG L5-4.0-15D-1.5R Refer to No. 1 Left Clamp part: 5 mm Width of cutting edge: 4.0 mm Lead angle: 15’ Right Nose Radius: 1.5 MFG R 5-4.10-25D- R012 - L000 Refer to No. 1 Right Width of cutting edge: 4.1mm Degree: 25" Left Nose Radius: 0.0 Clamp part: 5mm Right Nose Radius: 1.2 R0-02 Ex) MFGR5-4.0-5D-R002-L115 Ex) MFGL5-4.0-15D-1.5R R1.2 4.1 RQ.o/ 25- / Ex) MFGR5-4.10-25D-R012-L000 Multi functional Tools
