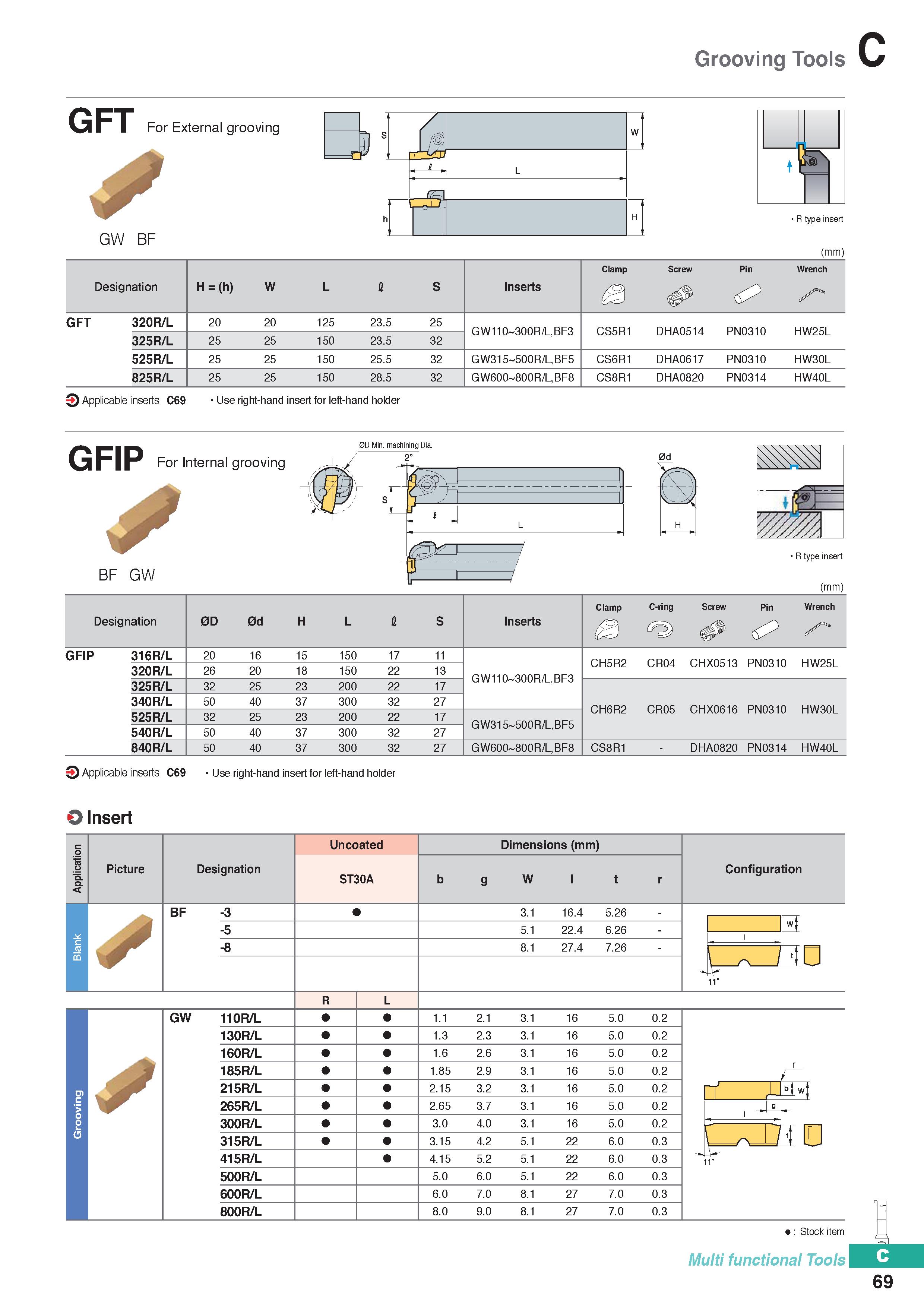

Grooving Tools GFT For External grooving GW BF 3T R type insert (mm) Clamp Screw Pin Wrench Designation H = (h) W L 1 s Inserts a & GFT 320R/L 20 20 125 23.5 25 GW110 300R/L,BF3 CS5R1 DHA0514 PN0310 HW25L 325R/L 25 25 150 23.5 32 525R/L 25 25 150 25.5 32 GW315 500R/L,BF5 CS6R1 DHA0617 PN0310 HW30L 825R/L 25 25 150 28.5 32 GW600 800R/L,BF8 CS8R1 DHA0820 PN0314 HW40L Applicable inserts C69 Use right-hand insert for left-hand holder GFIP 0D Min. machining Dia. For Internal grooving BF GW R type insert (mm) Designation 0D 0d H L 1 s Inserts Clamp C-ring Screw Pin Wrench GFIP 316R/L 20 16 15 150 17 11 CH5R2 CR04 CHX0513 PN0310 HW25L 320R/L 26 20 18 150 22 13 GW110 300R/L,BF3 325R/L 32 25 23 200 22 17 340R/L 50 40 37 300 32 27 CH6R2 CR05 CHX0616 PN0310 HW30L 525R/L 32 25 23 200 22 17 GW315 500R/L,BF5 540R/L 50 40 37 300 32 27 840R/L 50 40 37 300 32 27 GW600 800R/L,BF8 CS8R1 - DHA0820 PN0314 HW40L 3 Applicable inserts C69 Use right-hand insert for left-hand holder O Insert Picture Designation Uncoated ST30A Dimensions (mm) g W Configuration BF -3 3.1 16.4 5.26 -5 5.1 22.4 6.26 -8 27.4 7.26 GW 110R/L 130R/L 160R/L 185R/L 215R/L 265R/L 300R/L 315R/L 415R/L 1.1 2.1 3.1 16 5.0 0.2 1.3 2.3 3.1 16 5.0 0.2 1.6 2.6 3.1 16 5.0 0.2 1.85 3.1 16 5.0 0.2 2.15 3.2 3.1 16 5.0 0.2 2.65 3.7 3.1 16 5.0 0.2 3.0 4.0 3.1 16 5.0 0.2 3.15 4.2 5.1 22 6.0 0.3 4.15 5.2 5.1 22 6.0 0.3 500R/L 5.0 6.0 5.1 22 6.0 0.3 600R/L 6.0 7.0 27 7.0 0.3 800R/L 8.0 9.0 27 7.0 0.3 >: Stock item Multi functional Tools 69
