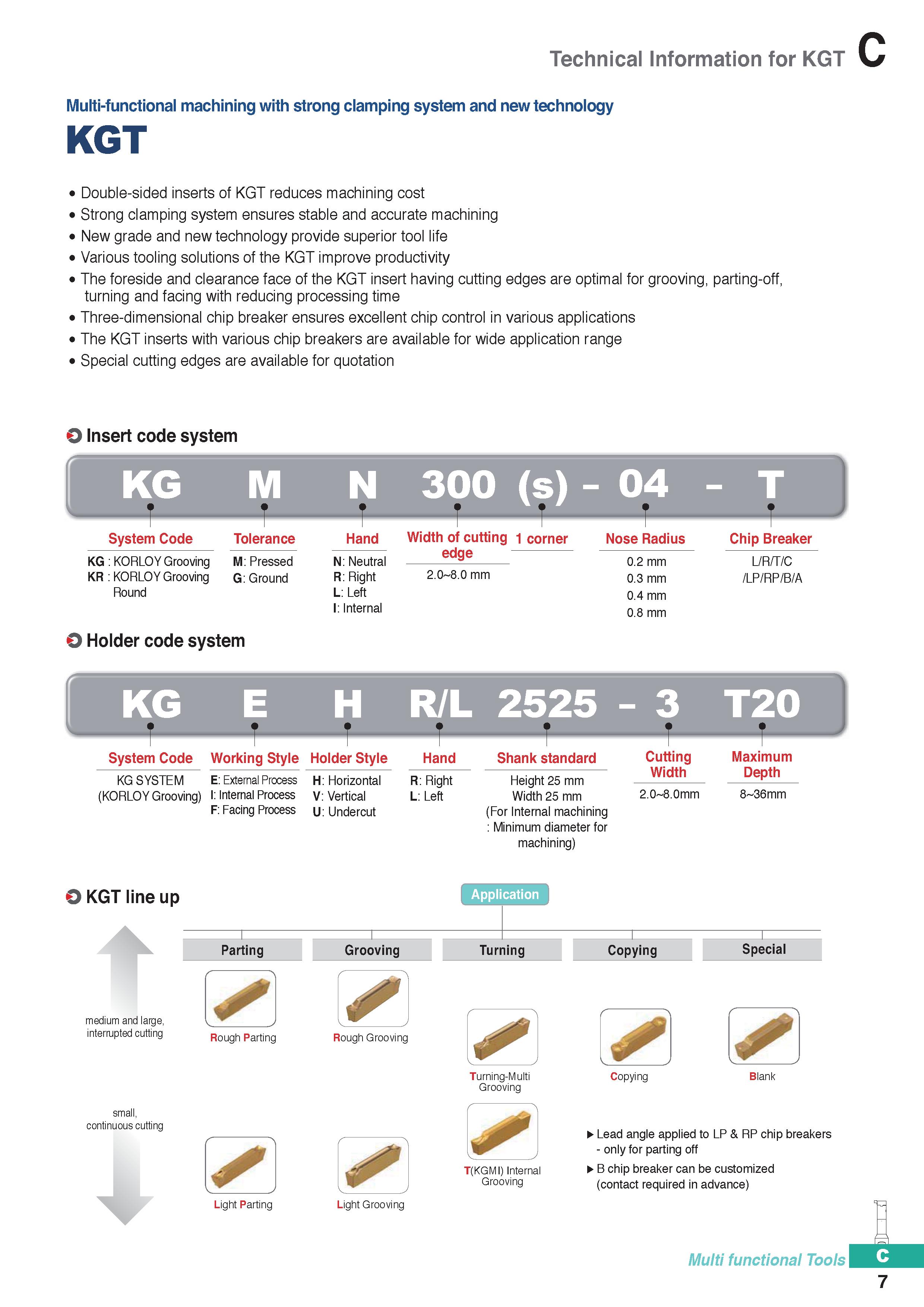

Technical Information for KGT Multi-functional machining with strong clamping system and new technology KGT Double-sided inserts of KGT reduces machining cost Strong clamping system ensures stable and accurate machining New grade and new technology provide superior tool life Various tooling solutions of the KGT improve productivity The foreside and clearance face of the KGT insert having cutting edges are optimal for grooving, parting-off, turning and facing with reducing processing time Three-dimensional chip breaker ensures excellent chip control in various applications The KGT inserts with various chip breakers are available for wide application range Special cutting edges are available for quotation O Insert code system KG System Code Tolerance KG: KORLOY Grooving KR : KORLOY Grooving Round M: Pressed G: Ground O Holder code system N 300 (s) - Hand N: Neutral R: Right L: Left I: Internal Width of cutting 1 corner edge 2.0 8.0 mm Nose Radius 0.2 mm 0.3 mm 0.4 mm 0.8 mm Chip Breaker L/R/T/C /LP/RP/B/A KG H R/L 2525 - 3 T20 System Code Working Style Holder Style Hand KG SYSTEM (KORLOY Grooving) E: External Process I: Internal Process F: Facing Process H: Horizontal V: Vertical U: Undercut R: Right L: Left Shank standard Height 25 mm Width 25 mm (For Internal machining : Minimum diameter for machining) Cutting Width 2.0 8.0mm Maximum Depth 8 36mm O KGT line up medium and large, interrupted cutting small, continuous cutting Rough Parting Rough Grooving Turning-Multi Grooving T(KGMI) Internal Grooving Copying Blank Lead angle applied to LP & RP chip breakers - only for parting off B chip breaker can be customized (contact required in advance) Light Parting Light Grooving Multi functional Tools A 7
