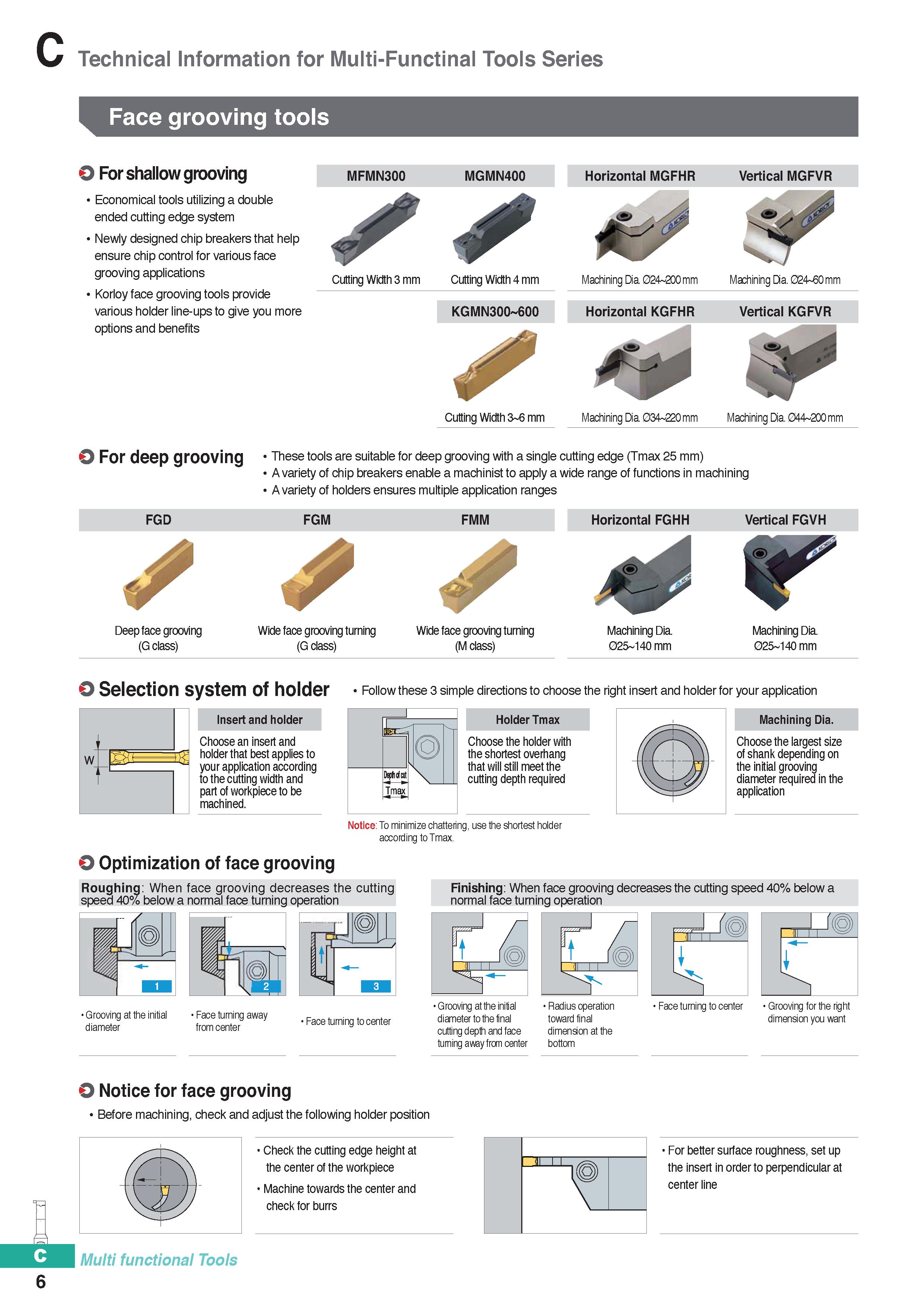

Technical Information for Multi-Functinal Tools Series mCm 6 Face grooving tools O Forshallowgrooving Economical tools utilizing a double ended cutting edge system Newly designed chip breakers that help ensure chip control for various face grooving applications Korloy face grooving tools provide various holder line-ups to give you more options and benefits Cutting Width 3 6 mm Machining Dia. 024 200 mm Machining Da. 024 60 mm Horizontal KGFHR Vertical KGFVR Machining Dia. 034 220 mm Machining Dia. 044 200 mm For deep grooving FGD Deep face grooving (G class) These tools are suitable for deep grooving with a single cutting edge (Tmax 25 mm) A variety of chip breakers enable a machinist to apply a wide range of functions in machining A variety of holders ensures multiple application ranges FGM FMM Wide face grooving turning (G class) Wide face grooving turning (M class) Horizontal FGHH Machining Dia. 025 140 mm Vertical FGVH Machining Dia. 025 140 mm O Selection system of holder Follow these 3 simple directions to choose the right insert and holder for your application w Insert and holder L - Choose an insert and holder that best applies to your application according JEwI i Dspticf Hit to the cutting width and part of workpiece to be machined. Titiek Holder Tmax Choose the holder with the shortest overhang that will still meet the cutting depth required Machining Dia. Choose the largest size of shank depending on the initial grooving diameter required in the application Notice: To minimize chattering, use the shortest holder according to Tmax. O Optimization of face grooving Roughing: When face grooving decreases the cutting speed 40% below a normal face turning operation Finishing: When face grooving decreases the cutting speed 40% below a normal face turning operation It -h Grooving at the initial diameter Face turning away from center Face turning to center diameter to the final cutting depth and face turning away from center Radius operation toward final dimension at the bottom Face turning to center Grooving for the right dimension you want 0 Notice for face grooving Before machining, check and adjust the following holder position Check the cutting edge height at the center of the workpiece Machine towards the center and check for burrs Multi functional Tools (II 1 1 For better surface roughness, set up the insert in order to perpendicular at center line MFMN300 MGMN400 Horizontal MGFHR Vertical MGFVR
