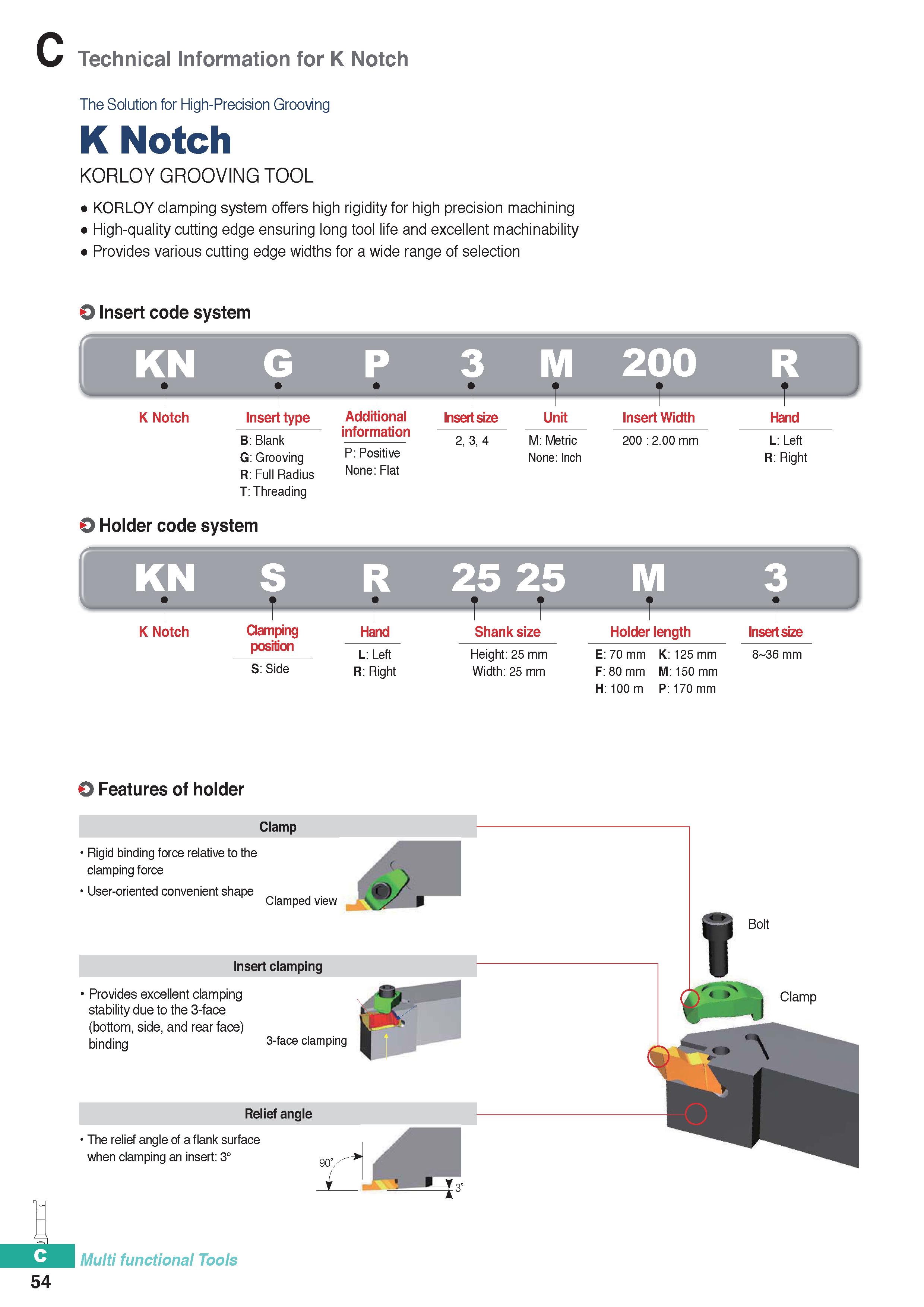

Technical Information for K Notch The Solution for High-Precision Grooving K Notch KORLOY GROOVING TOOL KORLOY clamping system offers high rigidity for high precision machining High-quality cutting edge ensuring long tool life and excellent machinability Provides various cutting edge widths for a wide range of selection O Insert code system M 200 K Notch Insert type B: Blank G: Grooving R: Full Radius T: Threading Additional information P: Positive None: Flat Insertsize 2, 3, 4 Unit M: Metric None: Inch Insert Width 200 : 2.00 mm O Holder code system Hand L: Left R: Right 25 25 K Notch Clamping position S: Side Hand L: Left R: Right Shank size Height: 25 mm Width: 25 mm Holderlength Insertsize E: 70 mm K: 125 mm 8 36 mm F: 80 mm M: 150 mm H: 100 m P: 170 mm R P O Features of holder Clamp Rigid binding force relative to the clamping force User-oriented convenient shape Clamped view Insert clamping Provides excellent clamping stability due to the 3-face (bottom, side, and rear face) binding 3-face clamping Relief angle The relief angle of a flank surface when clamping an insert: 3° 90" um Multi functional Tools 54
