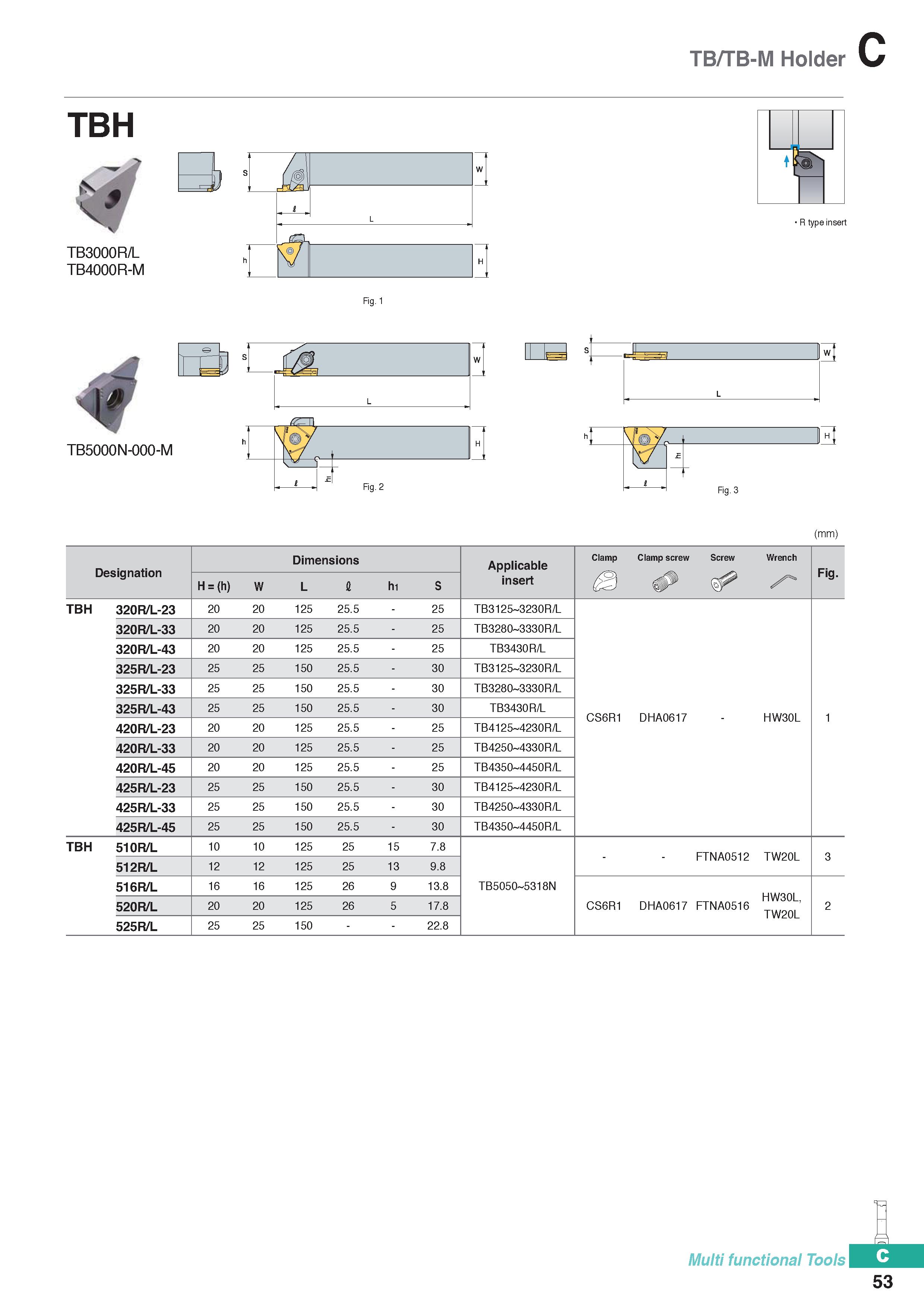

TB/TB-M Holder TB3000R/L TB4000R-M SB a R type insert Fig. 3 (mm) Designation Dimensions Applicable Clamp Clamp screw Screw Wrench Fig. H = (h) W L I hi S insert TBH 320R/L-23 20 20 125 25.5 - 25 TB3125 3230R/L 320R/L-33 20 20 125 25.5 - 25 TB3280 3330R/L 320R/L-43 20 20 125 25.5 - 25 TB3430R/L 325R/L-23 25 25 150 25.5 - 30 TB3125 3230R/L 325R/L-33 25 25 150 25.5 - 30 TB3280 3330R/L 325R/L-43 25 25 150 25.5 - 30 TB3430R/L CS6R1 DHA0617 HW30L 1 420R/L-23 20 20 125 25.5 - 25 TB4125 4230R/L 420R/L-33 20 20 125 25.5 - 25 TB4250 4330R/L 420R/L-45 20 20 125 25.5 - 25 TB4350 4450R/L 425R/L-23 25 25 150 25.5 - 30 TB4125 4230R/L 425R/L-33 25 25 150 25.5 - 30 TB4250 4330R/L 425R/L-45 25 25 150 25.5 - 30 TB4350 4450R/L TBH 510R/L 10 10 125 25 15 7.8 FTNA0512 TW20L 3 512R/L 12 12 125 25 13 9.8 516R/L 16 16 125 26 9 13.8 TB5050 5318N HW30L, TW20L 520R/L 20 20 125 26 5 17.8 CS6R1 DHA0617 FTNA0516 2 525R/L 25 25 150 22.8 Multi functional Tools TB5000N-000-M mu 53
