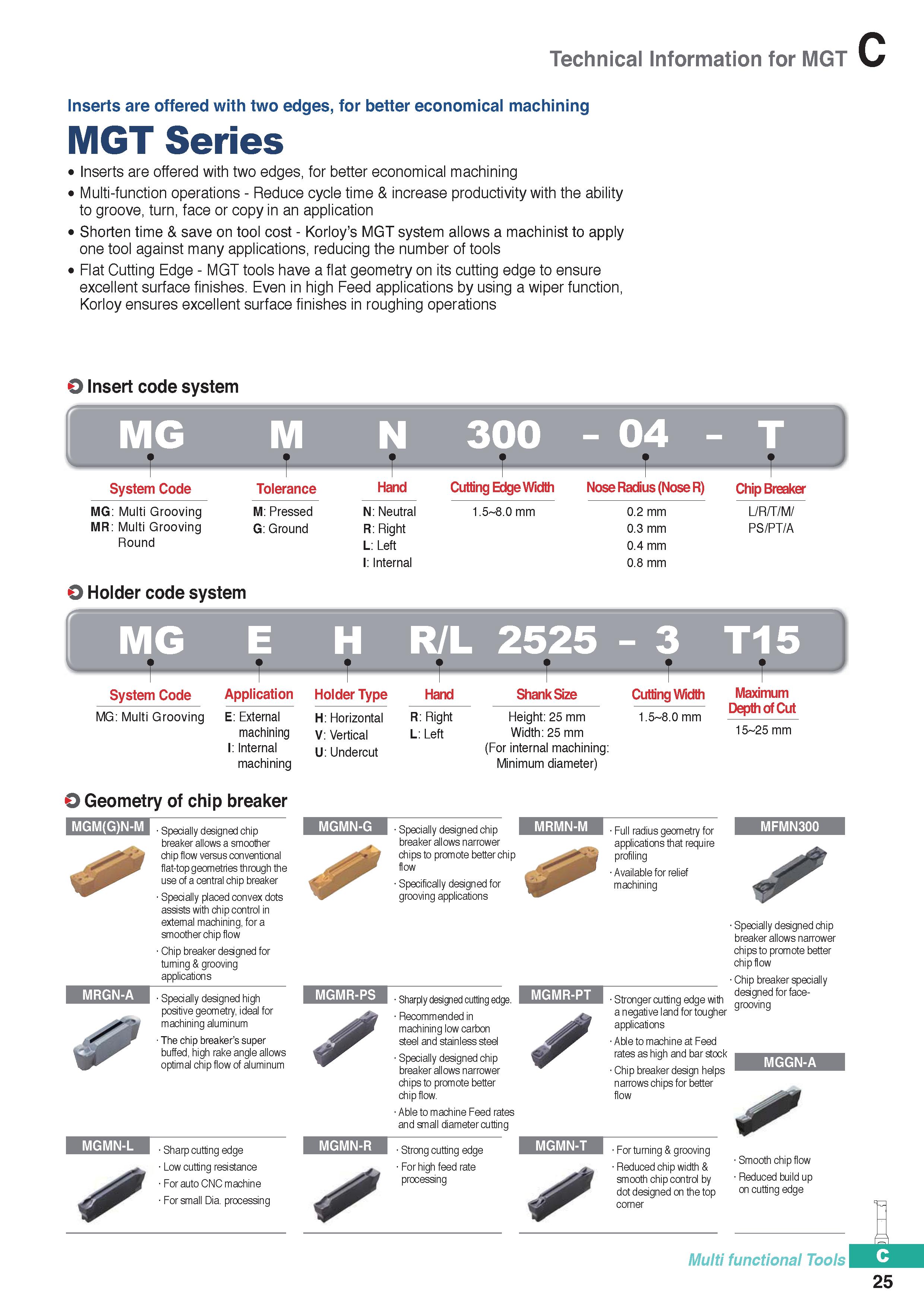

Technical Information for MGT Inserts are offered with two edges, for better economical machining MGT Series Inserts are offered with two edges, for better economical machining Multi-function operations - Reduce cycle time & increase productivity with the ability to groove, turn, face or copy in an application Shorten time & save on tool cost - Korloy’s MGT system allows a machinist to apply one tool against many applications, reducing the number of tools Flat Cutting Edge - MGT tools have a flat geometry on its cutting edge to ensure excellent surface finishes. Even in high Feed applications by using a wiper function, Korloy ensures excellent surface finishes in roughing operations O Insert code system MG M N 300 - 04 - 1 - T System Code Tolerance Hand Cutting Edge Width Nose Radius (Nose R) Chip Breaker MG: Multi Grooving MR: Multi Grooving Round M: Pressed G: Ground N: Neutral 1.5 8.0 mm R: Right L: Left 1: Internal 0.2 mm 0.3 mm 0.4 mm 0.8 mm L/R/T/M/ PS/PT/A O Holder code system r MG E H R/L 2525 - 3 T15 j System Code Application Holder Type Hand ShankSize Cutting Width Maximum DepthofCut 15 25 mm MG: Multi Grooving E: External H machining v 1: Internal y machining Horizontal Vertical Undercut R: Right Height: 25 mm L: Left Width: 25 mm (For internal machining: Minimum diameter) 1.5 8.0 mm O Geometry of chip breaker MGM(G)N-M MRGN-A & Specially designed chip breaker allows a smoother chip flow versus conventional flat-top geometries through the use of a central chip breaker Specially placed convex dots assists with chip control in external machining, for a smoother chip flow Chip breaker designed for turning & grooving applications Specially designed high positive geometry, ideal for machining aluminum The chip breaker's super buffed, high rake angle allows optimal chip flow of aluminum MGMN-G Specially designed chip breaker allows narrower chips to promote better chip flow Specifically designed for grooving applications MGMR-PS MRMN-M Sharply designed cutting edge. Recommended in machining low carbon steel and stainless steel Specially designed chip breaker allows narrower chips to promote better chip flow. Able to machine Feed rates and small diameter cutting MGMR-PT MGMN-L Sharp cutting edge MGMN-R Strong cutting edge MGMN-T Low cutting resistance For auto CNC machine For small Dia. processing For high feed rate processing Full radius geometry for applications that require profiling Available for relief machining Stronger cutting edge with groovinq a negative land for tougher applications Able to machine at Feed rates as high and bar stock Chip breaker design helps narrows chips for better flow MFMN300 Specially designed chip breaker allows narrower chips to promote better chip flow Chip breaker specially designed for face- MGGN-A For turning & grooving Smooth chip flow Reduced chip width & smooth chip control by Reduced build up dot designed on the top on cutting edge corner Multi functional Tools 25
