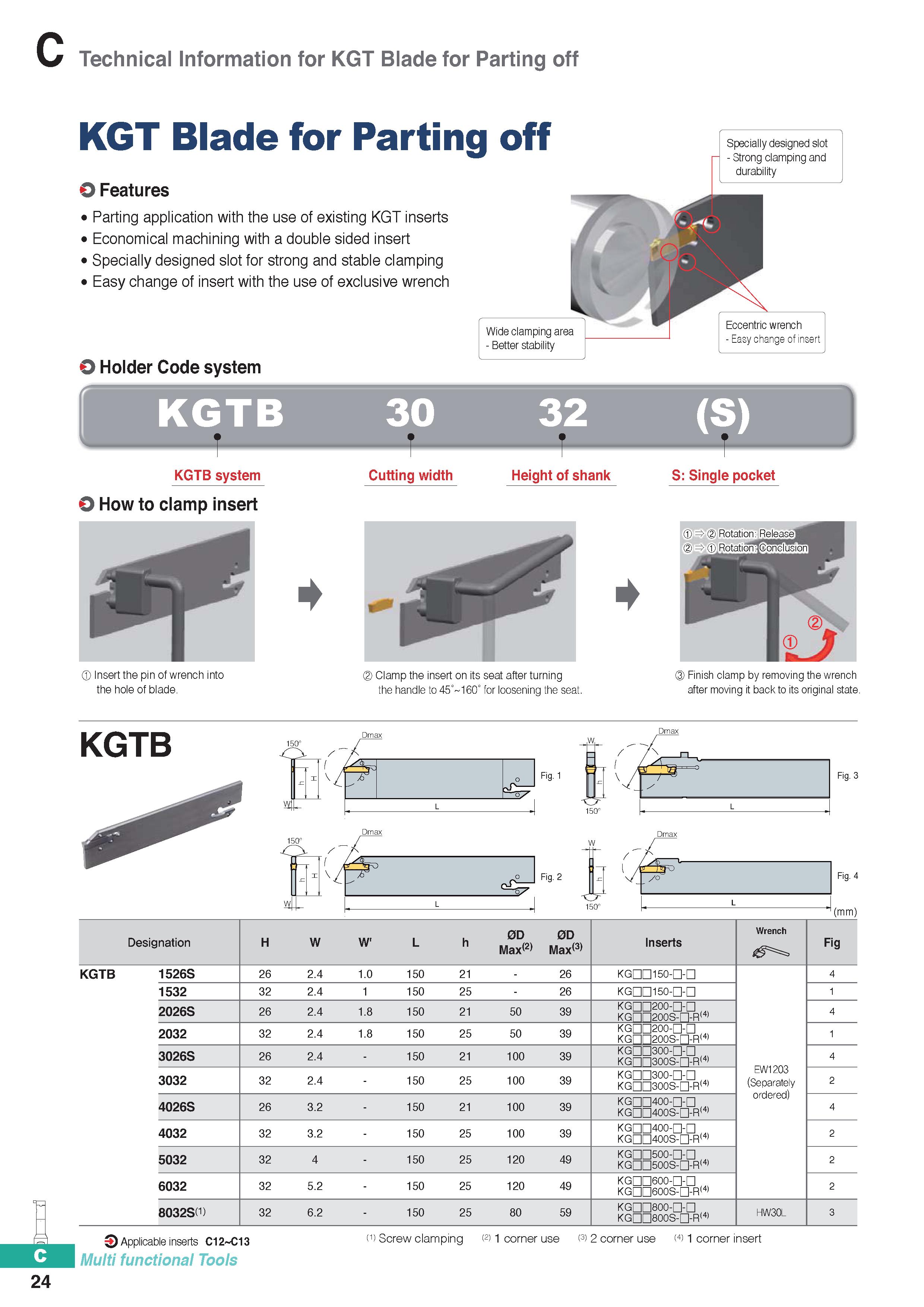

C Technical Information for KGT Blade for Parting off KGT Blade for Parting off O Features Parting application with the use of existing KGT inserts Economical machining with a double sided insert Specially designed slot for strong and stable clamping Easy change of insert with the use of exclusive wrench O Holder Code system Specially designed slot - Strong clamping and durability Wide clamping area - Better stability Eccentric wrench - Easy change of insert KG TB 30 32 (S) KGTB system O How to clamp insert Cutting width Height of shank Insert the pin of wrench into the hole of blade. Clamp the insert on its seat after turning the handle to 45" 160" for loosening the seat. S: Single pocket Rotation: Release . RotatidnHConclUsionl Finish clamp by removing the wrench after moving it back to its original state. KGTB 150° o o7 L Fig. 1 Dmax n . X L Dmax iv'lwo y° L Fig. 3 Fig. 4 (mm) Designation H W W' L h 0D Max(2) 0D Max 3 Inserts Wrench Fig KGTB 1526S 26 2.4 1.0 150 21 - 26 KGco50-n-n 4 1532 32 2.4 1 150 25 - 26 KGaa150-n-n 1 2026S 26 2.4 1.8 150 21 50 39 KGaa200-n-n KGDD200S-D-R(41 4 2032 32 2.4 1.8 150 25 50 39 KGDD200-n-n KGDD200S-D-R(4) 1 3026S 26 2.4 - 150 21 100 39 KGDD300-n-n KGDD300S-D-R(4) EW1203 (Separately ordered) 4 3032 32 2.4 - 150 25 100 39 KGDD300-n-n KGDD300S-D-R(41 2 4026S 26 3.2 - 150 21 100 39 KGaa400-n-n KGDD400S-D-R(41 4 4032 32 3.2 - 150 25 100 39 KGaa400-n-n KGDD400S-D-R(41 2 5032 32 4 - 150 25 120 49 KGnn500-D-n KGDD500S-D-R(4) 2 6032 32 5.2 - 150 25 120 49 KGDD600-n-n KGDD600S-D-R(4) 2 8032S(1) 32 6.2 - 150 25 80 59 KGDD800-n-n KGDD800S-D-R(4) HW30L 3 Ch o Applicable inserts C12 C13 Multi functional Tools (1) Screw clamping (2) 1 corner use (3) 2 corner use (4) 1 corner insert 24 Dmax W Dmax W
