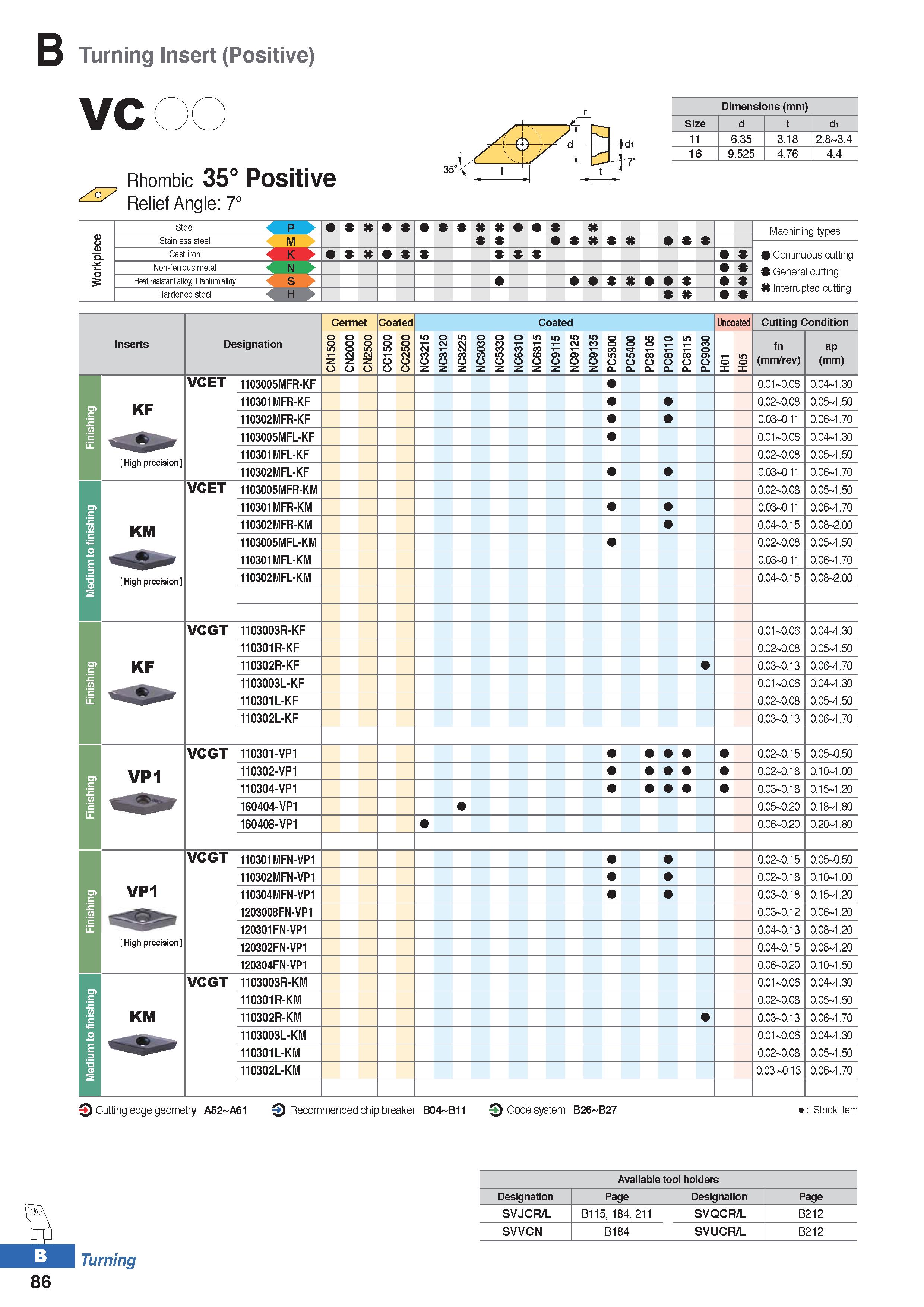

Turning Insert (Positive) VC Rhombic 35° Positive Relief Angle: 7° Dimensions (mm) Size d t d1 11 6.35 3.18 2.8-3.4 16 9.525 4.76 4.4 Steel P Machining types e c Stainless steel M s s It ie pi Cast iron K 0 Continuous cutting Non-ferrous metal N % General cutting Heat resistant alloy, Titanium alloy S Hardened steel H K Interrupted cutting Inserts Designation Cermet Coated Coated Uncoated Cutting Condition CN1500 CN2000 CN2500 CC1500 CC2500 NC3215 NC3120 NC3225 NC3030 0 3 3 5 C N NC6310 NC6315 NC9115 NC9125 NC9135 PC5300 PC5400 PC8105 5118CP 0118CP PC9030 01 H H05 fn (mm/rev) ap (mm) KF VCET 1103005MFR-KF 0.01-0.06 0.04-1.30 110301MFR-KF 0.02-0.08 0.05-1.50 110302MFR-KF 0.03-0.11 0.06-1.70 1103005MFL-KF 0.01-0.06 0.04-1.30 High precision 110301MFL-KF 0.02-0.08 0.05-1.50 110302MFL-KF 0.03-0.11 0.06-1.70 KM VCET 1103005MFR-KM 0.02-0.08 0.05-1.50 110301MFR-KM 0.03-0.11 0.06-1.70 110302MFR-KM 0.04-0.15 0.08-2.00 1103005MFL-KM 0.02-0.08 0.05-1.50 110301MFL-KM 0.03-0.11 0.06-1.70 High precision 110302MFL-KM 0.04-0.15 0.08-2.00 KF VCGT 1103003R-KF 0.01-0.06 0.04-1.30 110301R-KF 0.02-0.08 0.05-1.50 110302R-KF 0.03-0.13 0.06-1.70 1103003L-KF 0.01-0.06 0.04-1.30 110301L-KF 0.02-0.08 0.05-1.50 110302L-KF 0.03-0.13 0.06-1.70 VP1 VCGT 110301-VP1 0.02-0.15 0.05-0.50 110302-VP1 0.02-0.18 0.10-1.00 110304-VP1 0.03-0.18 0.15-1.20 160404-VP1 0.05-0.20 0.18-1.80 160408-VP1 0.06-0.20 0.20-1.80 VP1 High precision VCGT 110301MFN-VP1 0.02-0.15 0.05-0.50 110302MFN-VP1 0.02-0.18 0.10-1.00 110304MFN-VP1 0.03-0.18 0.15-1.20 1203008FN-VP1 0.03-0.12 0.06-1.20 120301FN-VP1 0.04-0.13 0.08-1.20 120302FN-VP1 0.04-0.15 0.08-1.20 120304FN-VP1 0.06-0.20 0.10-1.50 KM VCGT 1103003R-KM 0.01-0.06 0.04-1.30 110301R-KM 0.02-0.08 0.05-1.50 110302R-KM 0.03-0.13 0.06-1.70 1103003L-KM 0.01-0.06 0.04-1.30 110301L-KM 0.02-0.08 0.05-1.50 110302L-KM 0.03 -0.13 0.06-1.70 Cutting edge geometry A52 A61 0 Recommended chip breaker B04 B11 9 Code system B26 B27 : Stock item Turning 86 Available tool holders Designation Page Designation Page SVJCR/L B115, 184, 211 SVQCR/L B212 SVVCN B184 SVUCR/L B212
