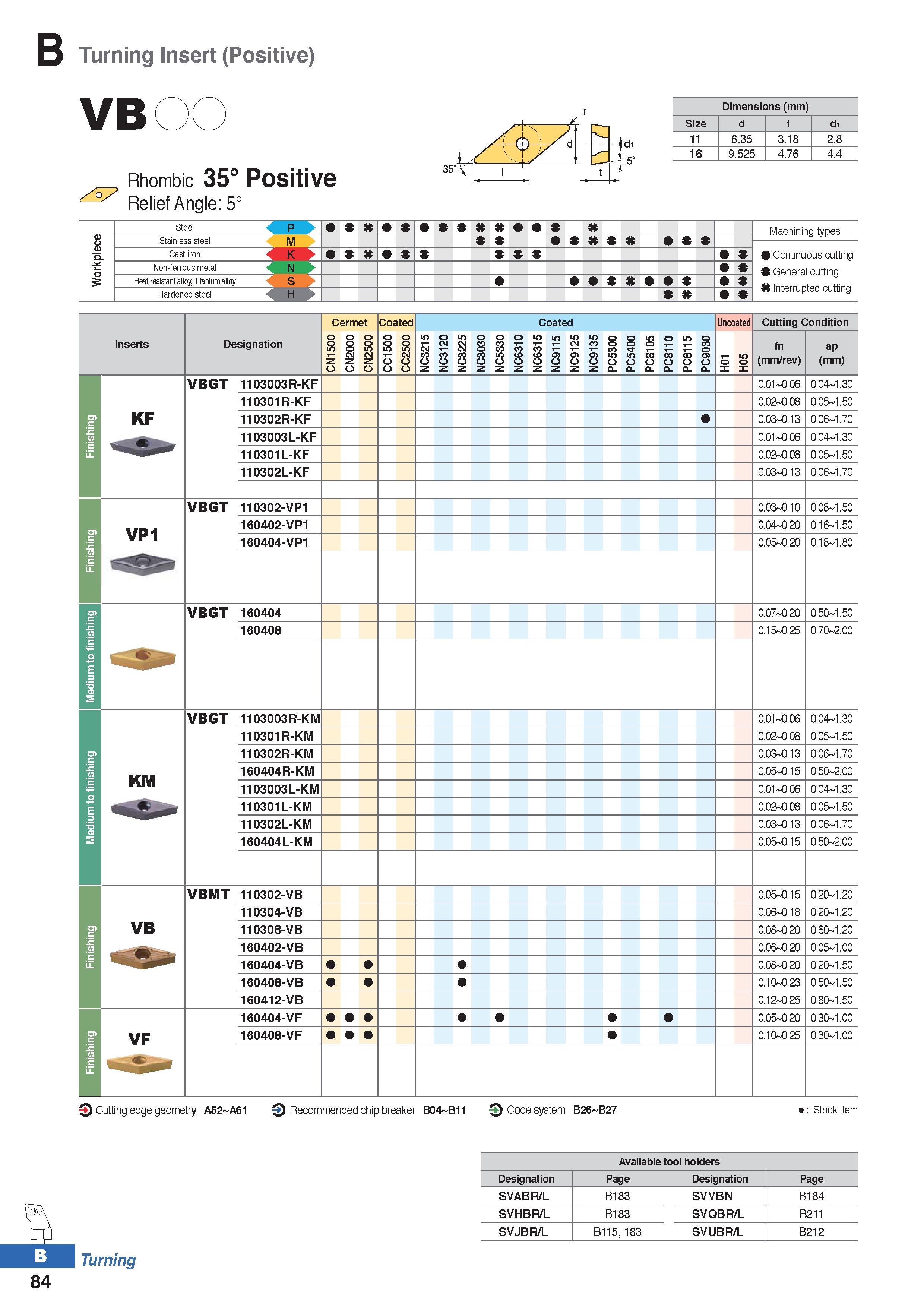

Turning Insert (Positive) VB Rhombic 35° Positive Relief Angle: 5° 35° 1 Dimensions (mm) Size d t d1 11 6.35 3.18 2.8 16 9.525 4.76 4.4 Steel P Machining types e c Stainless steel M s s It ie pi Cast iron K 0 Continuous cutting Non-ferrous metal N % General cutting Heat resistant alloy, Titanium alloy S Hardened steel H t Interrupted cutting Inserts Designation Cermet Coated Coated Uncoated Cutting Condition CN1500 CN2000 CN2500 CC1500 CC2500 NC3215 NC3120 NC3225 NC3030 NC5330 NC6310 NC6315 NC9115 NC9125 NC9135 PC5300 PC5400 PC8105 0 81 C P PC8115 PC9030 H01 H05 fn (mm/rev) ap (mm) KF VBGT 1103003R-KF 0.01-0.06 0.04-1.30 110301R-KF 0.02-0.08 0.05-1.50 110302R-KF 0.03-0.13 0.06-1.70 1103003L-KF 0.01-0.06 0.04-1.30 110301L-KF 0.02-0.08 0.05-1.50 110302L-KF 0.03-0.13 0.06-1.70 VP1 VBGT 110302-VP1 0.03-0.10 0.08-1.50 160402-VP1 0.04-0.20 0.16-1.50 160404-VP1 0.05-0.20 0.18-1.80 VBGT 160404 0.07-0.20 0.50-1.50 160408 0.15-0.25 0.70-2.00 KM VBGT 1103003R-KM 0.01-0.06 0.04-1.30 110301R-KM 0.02-0.08 0.05-1.50 110302R-KM 0.03-0.13 0.06-1.70 160404R-KM 0.05-0.15 0.50-2.00 1103003L-KM 0.01-0.06 0.04-1.30 110301L-KM 0.02-0.08 0.05-1.50 110302L-KM 0.03-0.13 0.06-1.70 160404L-KM 0.05-0.15 0.50-2.00 VB VBMT 110302-VB 0.05-0.15 0.20-1.20 110304-VB 0.06-0.18 0.20-1.20 110308-VB 0.08-0.20 0.60-1.20 160402-VB 0.06-0.20 0.05-1.00 160404-VB 0.08-0.20 0.20-1.50 160408-VB 0.10-0.23 0.50-1.50 160412-VB 0.12-0.25 0.80-1.50 VF 160404-VF 0.05-0.20 0.30-1.00 160408-VF 0.10-0.25 0.30-1.00 Cutting edge geometry A52 A61 0 Recommended chip breaker B04 B11 0 Code system B26 B27 : Stock item Turning 84 Available tool holders Designation Page Designation Page SVABR/L B183 SVVBN B184 SVHBR/L B183 SVQBR/L B211 SVJBR/L B115, 183 SVUBR/L B212
