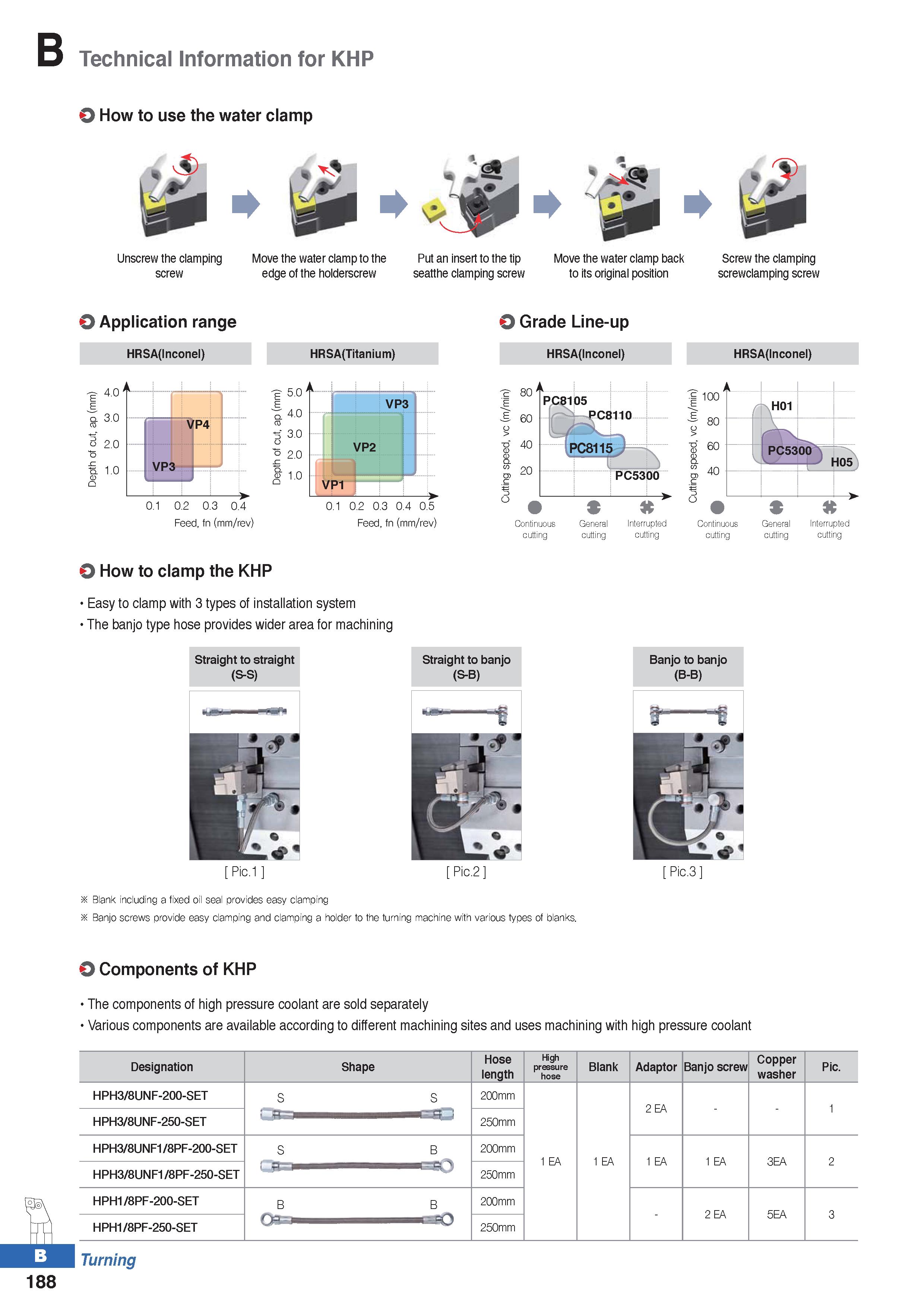

Technical Information for KHP How to use the water clamp \ Unscrew the clamping screw Move the water clamp to the edge of the holderscrew Put an insert to the tip seatthe clamping screw Move the water clamp back to its original position Screw the clamping screwclamping screw O Application range 0.1 0.2 0.3 0.4 Feed, fn (mm/rev) 0.1 0.2 0.3 0.4 0.5 Feed, fn (mm/rev) O Grade Line-up Continuous cutting General cutting Interrupted cutting Continuous cutting General Interrupted cutting cutting O How to clamp the KHP Easy to clamp with 3 types of installation system The banjo type hose provides wider area for machining Straight to straight (S-S) Pic.1 Pic.2 Pic.3 Blank including a fixed oil seal provides easy clamping Banjo screws provide easy clamping and clamping a holder to the turning machine with various types of blanks. O Components of KHP The components of high pressure coolant are sold separately Various components are available according to different machining sites and uses machining with high pressure coolant Designation Shape Hose length High pressure hose Blank Adaptor Banjo screw Copper washer Pic. HPH3/8UNF-200-SET S S 200mm 1 EA 1 EA 2 EA 1 HPH3/8UNF-250-SET -SO 250mm HPH3/8UNF1/8PF-200-SET S B 200mm 1 EA 1 EA 3EA 2 HPH3/8UNF1/8PF-250-SET 250mm HPH1/8PF-200-SET B B 200mm - 2 EA 5EA 3 HPH1/8PF-250-SET 250mm Turning 188
