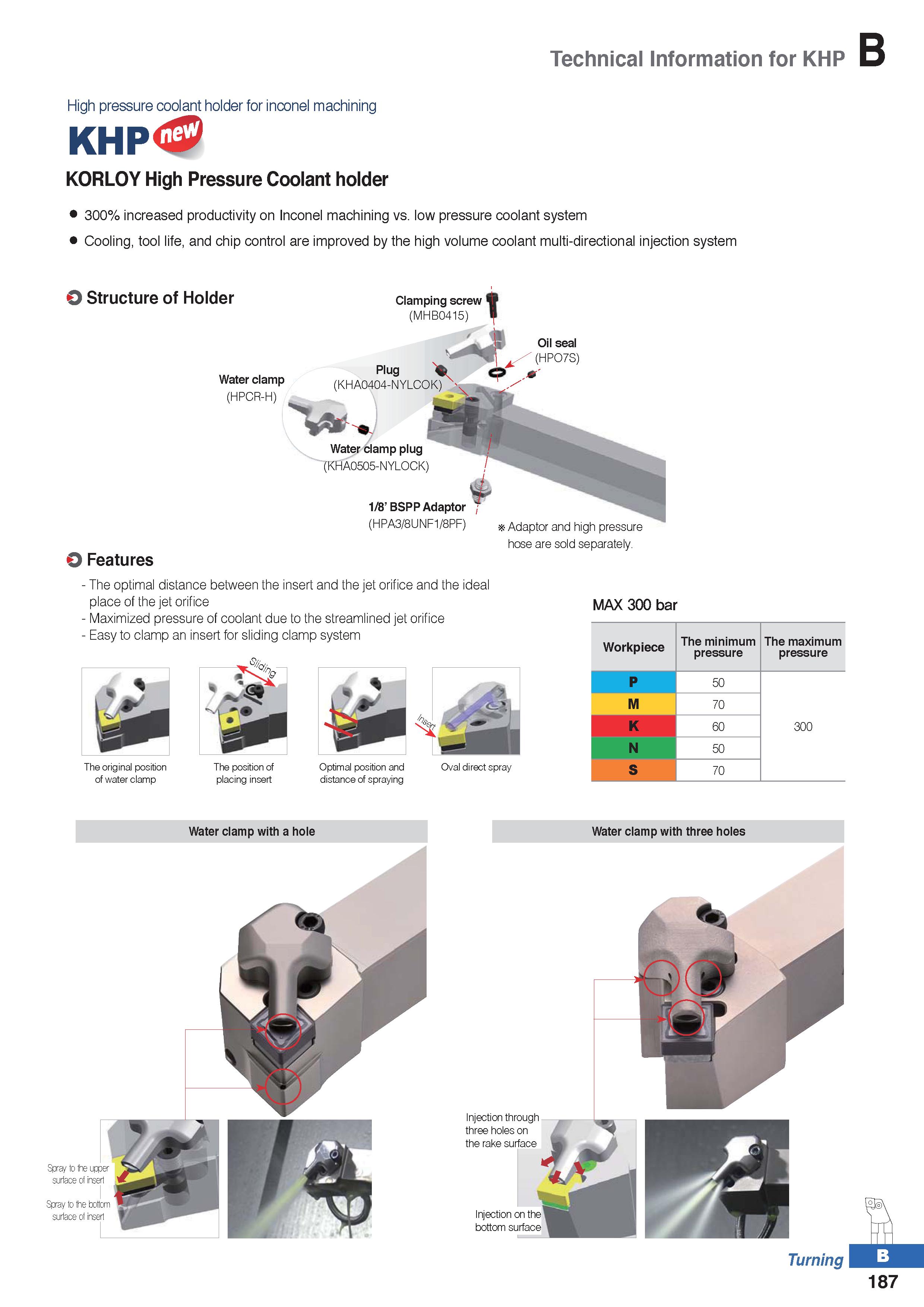

Technical Information for KHP High pressure coolant holder for inconel machining KHP KORLOY High Pressure Coolant holder 300% increased productivity on Inconel machining vs. low pressure coolant system Cooling, tool life, and chip control are improved by the high volume coolant multi-directional injection system O Structure of Holder Water clamp (HPCR-H) Clamping screw (MHB0415) Plug (KHA04Q4-NYLCOK) t Oil seal (HPO7S) "V Water clamp plug (KHAQ5Q5-NYLOCK) 1/8’ BSPP Adaptor (HPA3/8UNF1/8PF) O Features Adaptor and high pressure hose are sold separately. - The optimal distance between the insert and the jet orifice and the ideal place of the jet orifice - Maximized pressure of coolant due to the streamlined jet orifice - Easy to clamp an insert for sliding clamp system MAX 300 bar & The original position of water clamp H0 The position of placing insert Optimal position and distance of spraying Oval direct spray Workpiece The minimum pressure The maximum pressure P 50 M 70 K 60 300 N 50 S 70 Water clamp with three holes Spray to the upper surface of insert Spray to the bottom surface of insert Injection through three holes on the rake surface Injection on the bottom surface Turning 187
