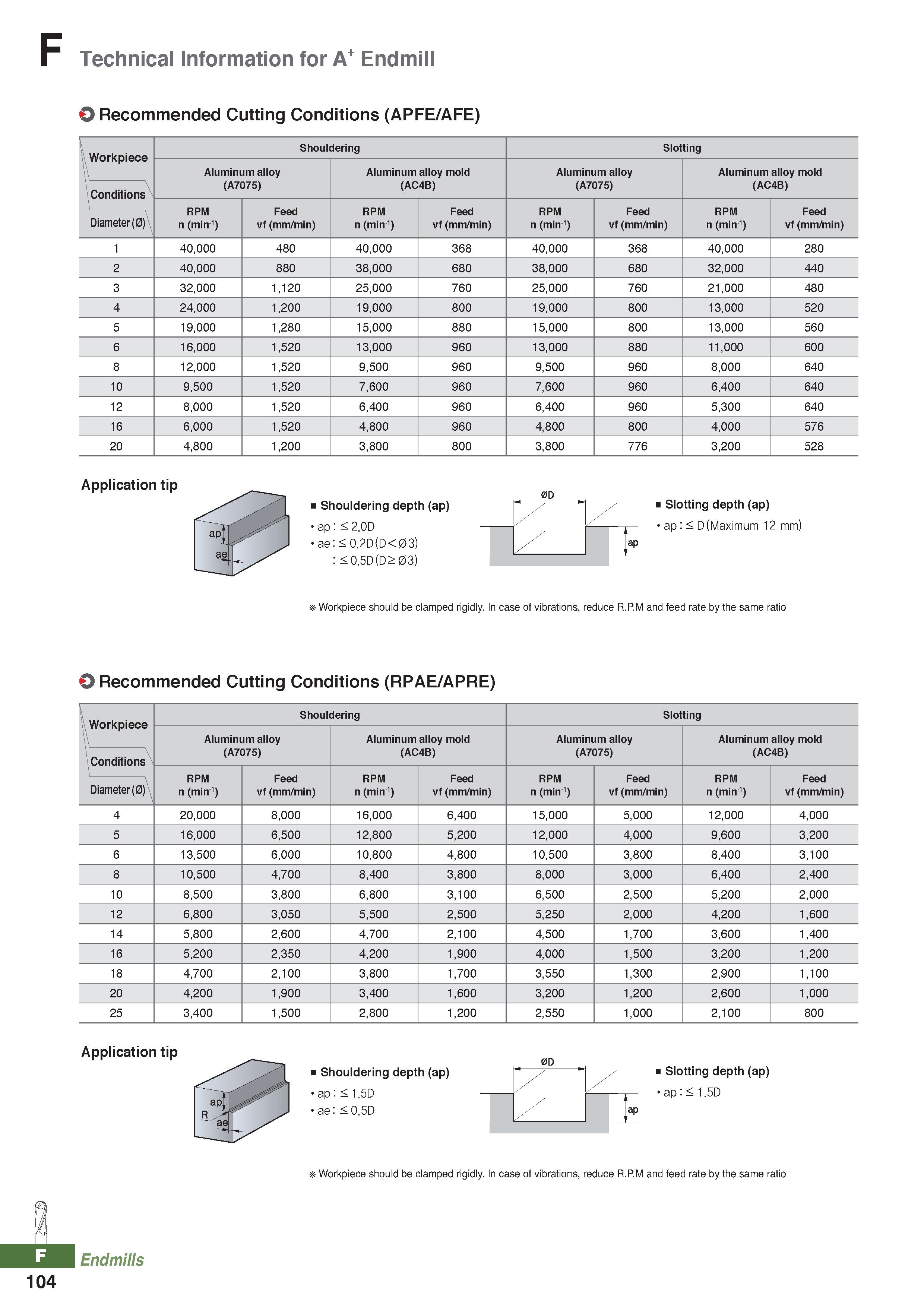

Technical Information for A Endmill O Recommended Cutting Conditions (APFE/AFE) Workpiece Shouldering Slotting Aluminum alloy (A7075) Aluminum alloy mold (AC4B) Aluminum alloy (A7075) Aluminum alloy mold (AC4B) Conditions RPM n (min-1) Feed vf (mm/min) RPM n (min-1) Feed vf (mm/min) RPM n (min-1) Feed vf (mm/min) RPM n (min-1) Feed vf (mm/min) Diameter (0) 1 40,000 480 40,000 368 40,000 368 40,000 280 2 40,000 880 38,000 680 38,000 680 32,000 440 3 32,000 1,120 25,000 760 25,000 760 21,000 480 4 24,000 1,200 19,000 800 19,000 800 13,000 520 5 19,000 1,280 15,000 880 15,000 800 13,000 560 6 16,000 1,520 13,000 960 13,000 880 11,000 600 8 12,000 1,520 9,500 960 9,500 960 8,000 640 10 9,500 1,520 7,600 960 7,600 960 6,400 640 12 8,000 1,520 6,400 960 6,400 960 5,300 640 16 6,000 1,520 4,800 960 4,800 800 4,000 576 20 4,800 1,200 3,800 800 3,800 776 3,200 528 Application tip Shouldering depth (ap) ap : 2.0D ae: O.2D(D 03) : O.5D(D>03) 0D Jap Slotting depth (ap) ap: D(Maximum 12 mm) Workpiece should be clamped rigidly. In case of vibrations, reduce R.P.M and feed rate by the same ratio O Recommended Cutting Conditions (RPAE/APRE) Workpiece Shouldering Slotting Aluminum alloy Aluminum alloy mold Aluminum alloy Aluminum alloy mold Conditions (A7075) (AC4B) (A7075) (AC4B) RPM Feed RPM Feed RPM Feed RPM Feed Diameter (0) n (min"1) vf (mm/min) n (min-1) vf (mm/min) n (min-1) vf (mm/min) n (min-1) vf (mm/min) 4 20,000 8,000 16,000 6,400 15,000 5,000 12,000 4,000 5 16,000 6,500 12,800 5,200 12,000 4,000 9,600 3,200 6 13,500 6,000 10,800 4,800 10,500 3,800 8,400 3,100 8 10,500 4,700 8,400 3,800 8,000 3,000 6,400 2,400 10 8,500 3,800 6,800 3,100 6,500 2,500 5,200 2,000 12 6,800 3,050 5,500 2,500 5,250 2,000 4,200 1,600 14 5,800 2,600 4,700 2,100 4,500 1,700 3,600 1,400 16 5,200 2,350 4,200 1,900 4,000 1,500 3,200 1,200 18 4,700 2,100 3,800 1,700 3,550 1,300 2,900 1,100 20 4,200 1,900 3,400 1,600 3,200 1,200 2,600 1,000 25 3,400 1,500 2,800 1,200 2,550 1,000 2,100 800 Application tip Shouldering depth (ap) ap : 1.5D ae: 0.5D 0D Jap Slotting depth (ap) ap: 1.5D Workpiece should be clamped rigidly. In case of vibrations, reduce R.P.M and feed rate by the same ratio Endmills 104
