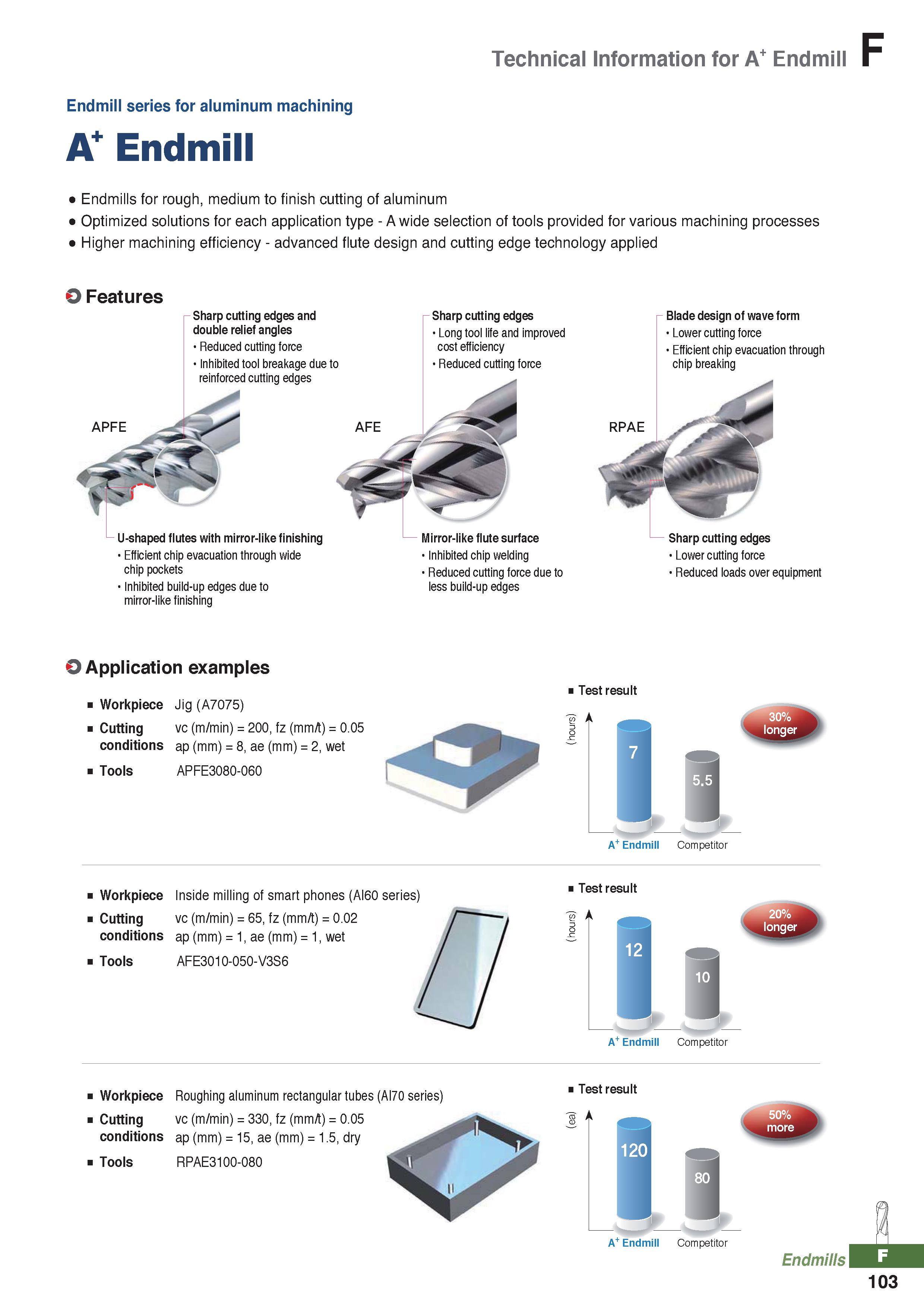

Technical Information for A Endmill Endmill series for aluminum machining A+ Endmill Endmills for rough, medium to finish cutting of aluminum Optimized solutions for each application type - A wide selection of tools provided for various machining processes Higher machining efficiency - advanced flute design and cutting edge technology applied O Features Sharp cutting edges and double relief angles Reduced cutting force Inhibited tool breakage due to reinforced cutting edges Sharp cutting edges Long tool life and improved cost efficiency Reduced cutting force U-shaped flutes with mirror-like finishing Efficient chip evacuation through wide chip pockets Inhibited build-up edges due to mirror-like finishing Mirror-like flute surface Inhibited chip welding Reduced cutting force due to less build-up edges Blade design of wave form Lower cutting force Efficient chip evacuation through chip breaking Sharp cutting edges Lower cutting force Reduced loads over equipment O Application examples Workpiece Jig (A7075) Cutti ng vc (m/min) = 200, fz (mm/t) = 0.05 co ndition s ap (mm) = 8, ae (mm) = 2, wet Tools APFE3080-060 Test result A Endmill Competitor Workpiece Inside milling of smart phones (Al60 series) Cutti ng vc (m/min) = 65, fz (mm/t) = 0.02 co ndition s ap (mm) = 1, ae (mm) = 1, wet Tools AFE3010-050-V3S6 Test result co A A Endmill Competitor Workpiece Roughing aluminum rectangular tubes (Al70 series) Cutti ng vc (m/min) = 330, fz (mm/t) = 0.05 co ndition s ap (mm) = 15, ae (mm) = 1.5, dry Tools RPAE3100-080 Test result & A Endmill Competitor Endmills J. 103
