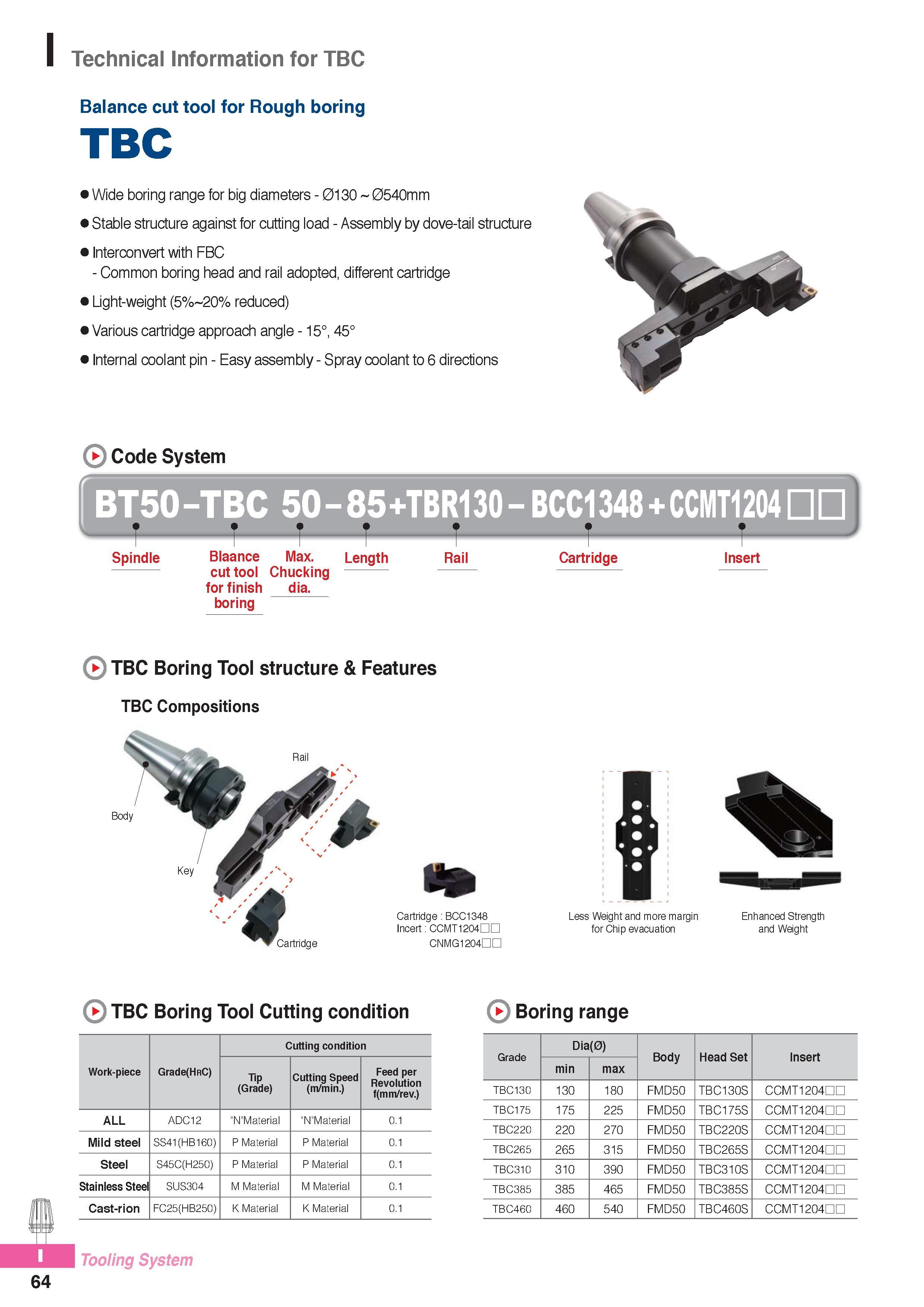

Technical Information for TBC Balance cut tool for Rough boring TBC Wide boring range for big diameters - 0130 0540mm Stable structure against for cutting load - Assembly by dove-tail structure Interconvert with FBC - Common boring head and rail adopted, different cartridge Light-weight (5% 20% reduced) Various cartridge approach angle - 15°, 45° Internal coolant pin - Easy assembly - Spray coolant to 6 directions Code System BT50-TBC 50-85+TBR130-BCC1348+CCMT1204 Spindle Blaance Max. Length cut tool Chucking for finish dia. boring Rail Cartridge Insert TBC Boring Tool structure & Features TBC Compositions Body Cartridge u Cartridge BCC1348 Incert CCMT1204DC CNMG1204DC Less Weight and more margin for Chip evacuation Enhanced Strength and Weight TBC Boring Tool Cutting condition Boring range Grade Dia(0) Body Head Set Insert min max TBC130 130 180 FMD50 TBC130S CCMT1204DD TBC175 175 225 FMD50 TBC175S CCMT1204DD TBC220 220 270 FMD50 TBC220S CCMT1204DD TBC265 265 315 FMD50 TBC265S CCMT1204DD TBC310 310 390 FMD50 TBC310S CCMT1204DD TBC385 385 465 FMD50 TBC385S CCMT1204DD TBC460 460 540 FMD50 TBC460S CCMT1204DD Work-piece Grade(HRC) Cutting condition Tip (Grade) Cutting Speed (m/min.) Feed per Revolution f(mm/rev.) ALL ADC12 "N"Material "N"Material 0.1 Mild steel SS41(HB160) P Material P Material 0.1 Steel S45C(H250) P Material P Material 0.1 Stainless Steel SUS304 M Material M Material 0.1 Cast-rion FC25(HB250) K Material K Material 0.1 1 Tooling System 64
