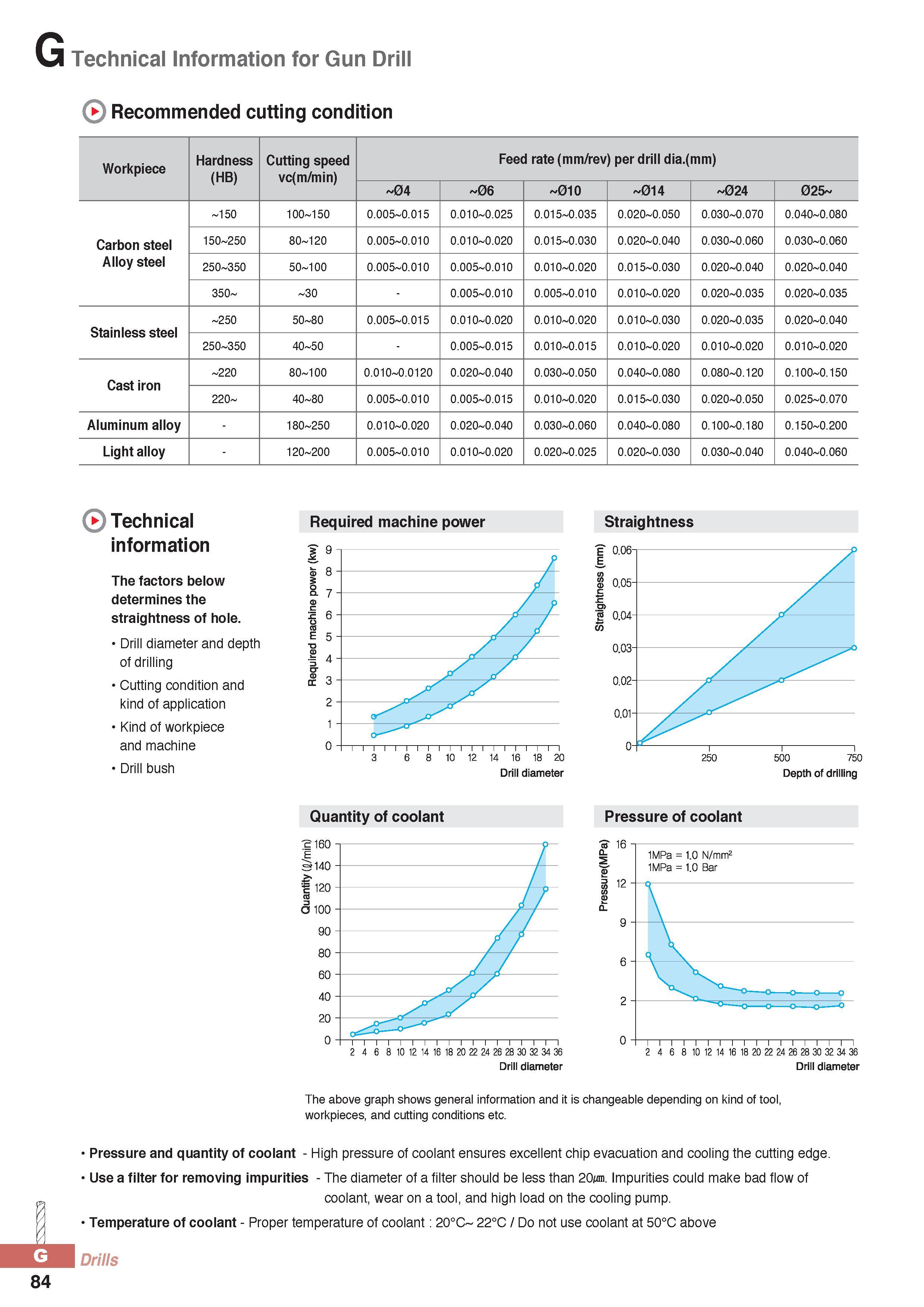

G Technical Information for Gun Drill Recommended cutting condition Workpiece Hardness (HB) Cutting speed vc(m/min) Feed rate (mm/rev) per drill dia.(mm) 04 06 01O 014 024 025 Carbon steel Alloy steel 150 100 150 0.005 0.015 0.010 0.025 0.015 0.035 0.020 0.050 0.030 0.070 0.040 0.080 150 250 80 120 0.005 0.010 0.010 0.020 0.015 0.030 0.020 0.040 0.030 0.060 0.030 0.060 250 350 50 100 0.005 0.010 0.005 0.010 0.010 0.020 0.015 0.030 0.020 0.040 0.020 0.040 350 30 - 0.005 0.010 0.005 0.010 0.010 0.020 0.020 0.035 0.020 0.035 Stainless steel 250 50 80 0.005 0.015 0.010 0.020 0.010 0.020 0.010 0.030 0.020 0.035 0.020 0.040 250 350 40 50 - 0.005 0.015 0.010 0.015 0.010 0.020 0.010 0.020 0.010 0.020 Cast iron 220 80 100 0.010 0.0120 0.020 0.040 0.030 0.050 0.040 0.080 0.080 0.120 0.100 0.150 220 40 80 0.005 0.010 0.005 0.015 0.010 0.020 0.015 0.030 0.020 0.050 0.025 0.070 Aluminum alloy - 180 250 0.010 0.020 0.020 0.040 0.030 0.060 0.040 0.080 0.100 0.180 0.150 0.200 Light alloy - 120 200 0.005 0.010 0.010 0.020 0.020 0.025 0.020 0.030 0.030 0.040 0.040 0.060 Technical information The factors below determines the straightness of hole. Drill diameter and depth of drilling Cuffing condition and kind of application Kind of workpiece and machine Drill bush Required machine power 0 I CL Straightness Drill diameter Depth of drilling Quantity of coolant Pressure of coolant 0. 5 "p Drill diameter The above graph shows general information and it is changeable depending on kind of tool, workpieces, and cutting conditions etc. Drill diameter .1 Pressure and quantity of coolant - High pressure of coolant ensures excellent chip evacuation and cooling the cutting edge. Use a filter for removing impurities - The diameter of a filter should be less than 20ym. Impurities could make bad flow of coolant, wear on a tool, and high load on the cooling pump. Temperature of coolant - Proper temperature of coolant 20°C 22°C / Do not use coolant at 50°C above Drills 84
