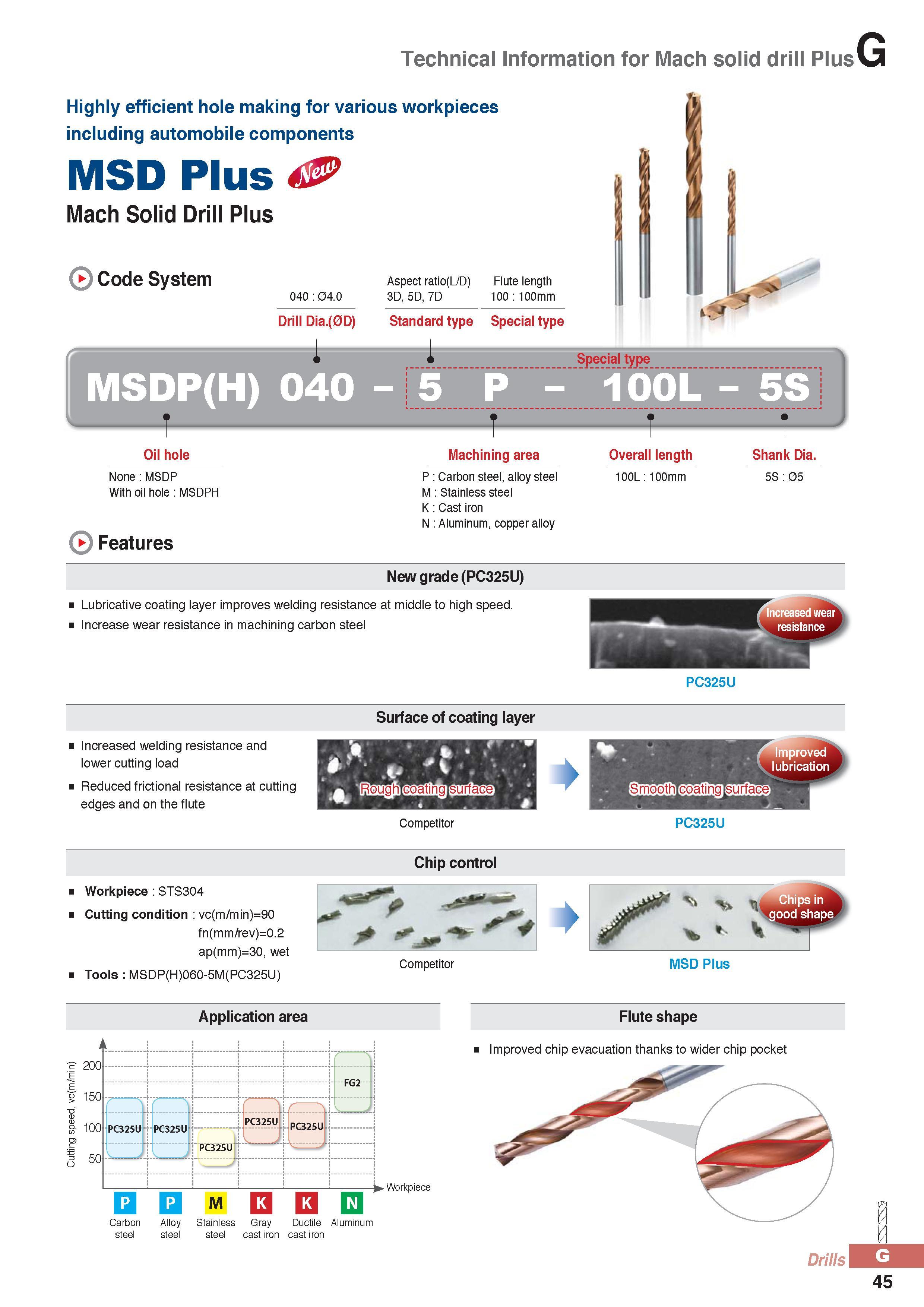

Technical Information for Mach solid drill Plus Highly efficient hole making for various workpieces including automobile components MSD Plus Mach Solid Drill Plus Code System MSDP(H) Oil hole 040 04.0 Aspect ratio(L/D) Flute length 3D, 5D, 7D 100 100mm Drill Dia.(0D) Standard type Special type 040 - 5 None MSDP With oil hole MSDPH Features Machining area P Carbon steel, alloy steel M Stainless steel K Cast iron N Aluminum, copper alloy Overall length 100L 100mm - 5S Shank Dia. 5S 05 New grade (PC325U) Lubricative coating layer improves welding resistance at middle to high speed. Increase wear resistance in machining carbon steel PC325U Surface of coating layer Increased welding resistance and lower cutting load Reduced frictional resistance at cutting edges and on the flute Chip control Workpiece STS304 Cutting condition vc(m/min)=90 fn(mm/rev)=0.2 ap(mm)=30, wet Tools MSDP(H)060-5M(PC325U) Competitor MSD Plus Application area steel steel steel cast iron cast iron Flute shape Improved chip evacuation thanks to wider chip pocket 45
