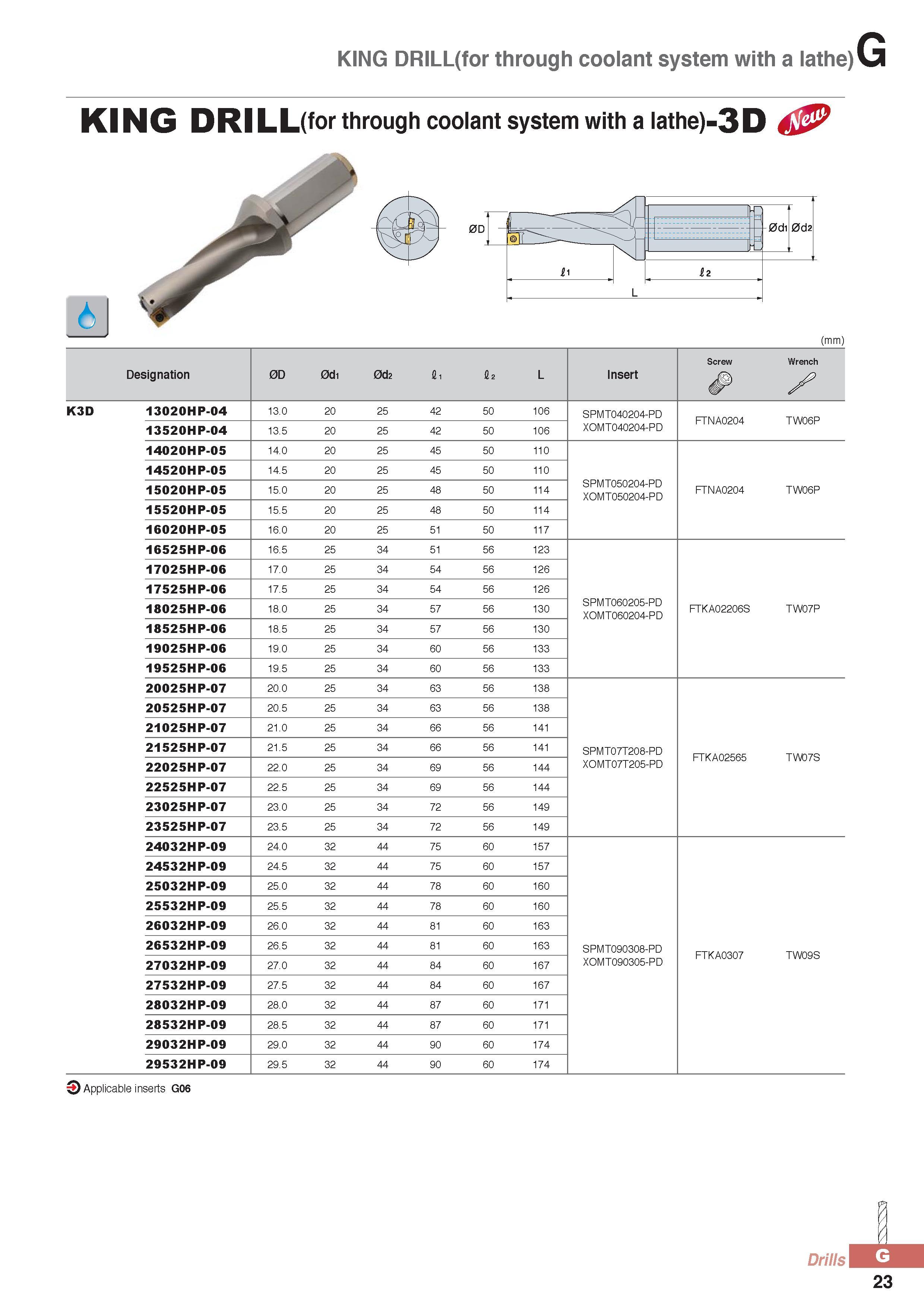

KING DRILL(for through coolant system with a lathe) KING DRILL(forthrough coolant system with a lathe)- 3D (mm) Designation 0D 0d1 0d2 fii I2 L Insert Screw Wrench K3D 13020HP-04 13.0 20 25 42 50 106 SPMT040204-PD FTNA0204 TW06P 13520HP-04 13.5 20 25 42 50 106 X0MT040204-PD 14020HP-05 14.0 20 25 45 50 110 14520HP-05 14.5 20 25 45 50 110 SPMT050204-PD X0MT050204-PD 15020HP-05 15.0 20 25 48 50 114 FTNA0204 TW06P 15520HP-05 15.5 20 25 48 50 114 16020HP-05 16.0 20 25 51 50 117 16525HP-06 16.5 25 34 51 56 123 17025HP-06 17.0 25 34 54 56 126 17525HP-06 17.5 25 34 54 56 126 SPMT060205-PD X0MT060204-PD 18025HP-06 18.0 25 34 57 56 130 FTKA02206S TW07P 18525HP-06 18.5 25 34 57 56 130 19025HP-06 19.0 25 34 60 56 133 19525HP-06 19.5 25 34 60 56 133 20025HP-07 20.0 25 34 63 56 138 20525HP-07 20.5 25 34 63 56 138 21025HP-07 21.0 25 34 66 56 141 21525HP-07 21.5 25 34 66 56 141 SPMT07T208-PD FTKA02565 TW07S 22025HP-07 22.0 25 34 69 56 144 X0MT07T205-PD 22525HP-07 22.5 25 34 69 56 144 23025HP-07 23.0 25 34 72 56 149 23525HP-07 23.5 25 34 72 56 149 24032HP-09 24.0 32 44 75 60 157 24532HP-09 24.5 32 44 75 60 157 25032HP-09 25.0 32 44 78 60 160 25532HP-09 25.5 32 44 78 60 160 26032HP-09 26.0 32 44 81 60 163 26532HP-09 26.5 32 44 81 60 163 SPMT090308-PD FTKA0307 TW09S 27032HP-09 27.0 32 44 84 60 167 X0MT090305-PD 27532HP-09 27.5 32 44 84 60 167 28032HP-09 28.0 32 44 87 60 171 28532HP-09 28.5 32 44 87 60 171 29032HP-09 29.0 32 44 90 60 174 29532HP-09 29.5 32 44 90 60 174 3 Applicable inserts G06 Drills J. 23
