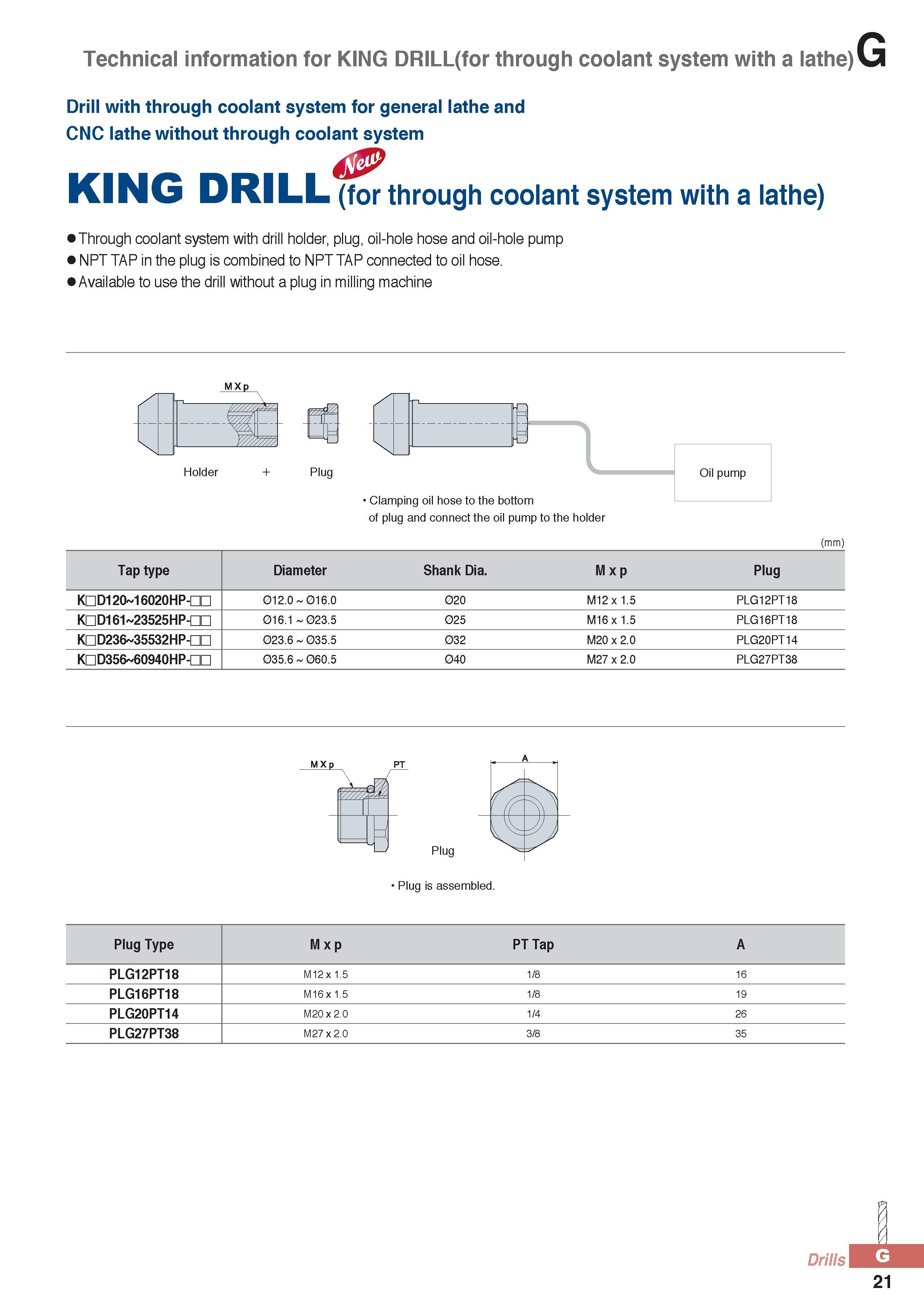

Technical information for KING DRILL(for through coolant system with a lathe) Drill with through coolant system for general lathe and CNC lathe without through coolant system 4jSP KING DRILL (for through coolant system with a lathe) Through coolant system with drill holder, plug, oil-hole hose and oil-hole pump NPT TAP in the plug is combined to NPT TAP connected to oil hose. Available to use the drill without a plug in milling machine Plug Oil pump Clamping oil hose to the bottom of plug and connect the oil pump to the holder (mm) Tap type Diameter Shank Dia. M x p Plug KnD120 16020HP-nn 012.0 016.0 020 M12 x 1.5 PLG12PT18 KnD161 23525HP-nn 016.1 023.5 025 M16 x 1.5 PLG16PT18 KnD236 35532HP-nn 023.6 035.5 032 M20 x 2.0 PLG20PT14 KnD356 60940HP-nn 035.6 060.5 040 M27 x 2.0 PLG27PT38 M X p PT d Plug Plug is assembled Plug Type M x p PT Tap A PLG12PT18 M12 x 1.5 1/8 16 PLG16PT18 M16 x 1.5 1/8 19 PLG20PT14 M20 x 2.0 1/4 26 PLG27PT38 M27 x 2.0 3/8 35 J. Drills G 21
