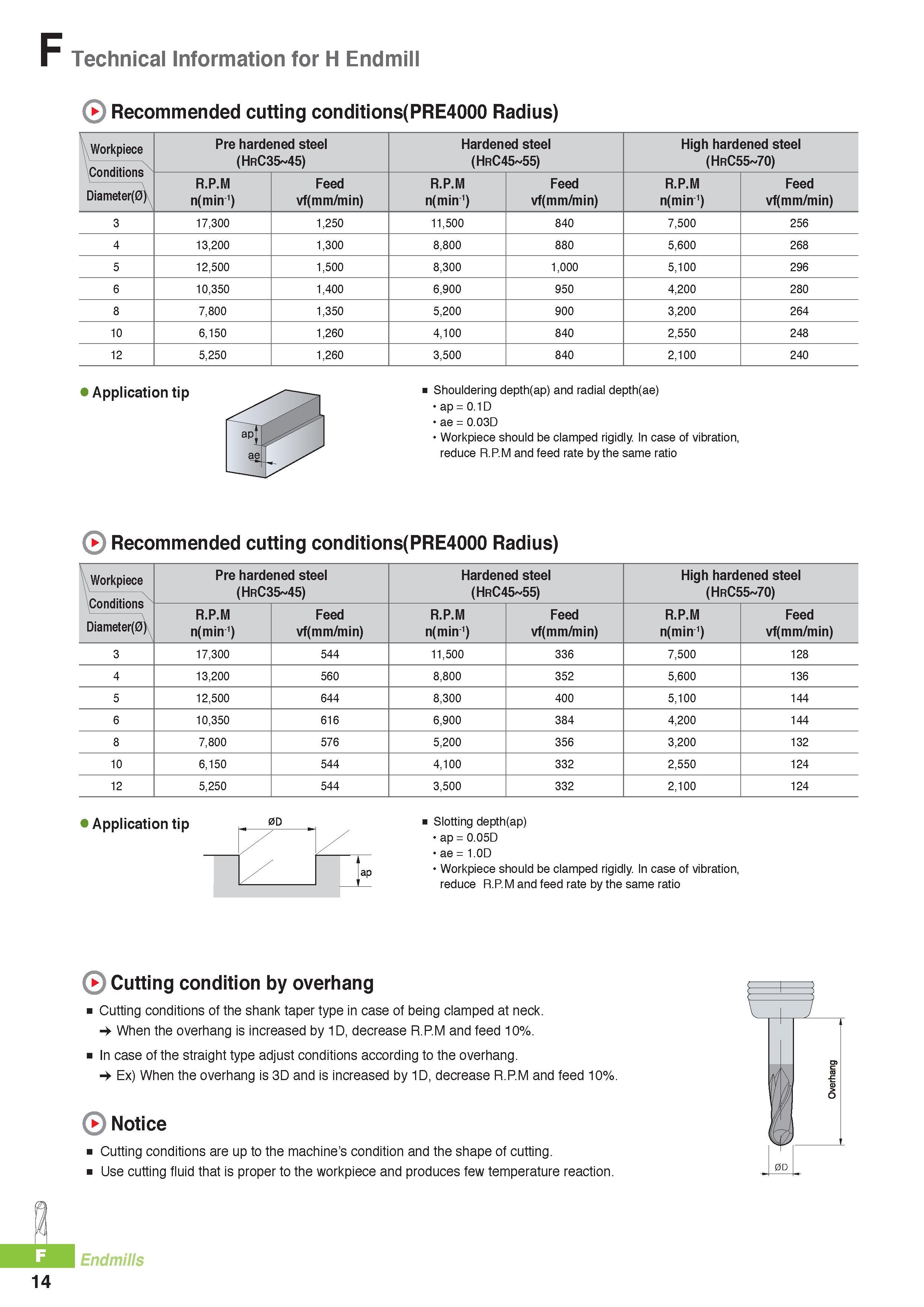

F Technical Information for H Endmill Recommended cutting conditions(PRE4000 Radius) Workpiece Conditions Pre hardened steel (HrC35 45) Hardened steel (HrC45 55) High hardened steel (HrC55 70) R.P.M Feed R.P.M Feed R.P.M Feed Diameter(0) n(min-1) vf(mm/min) n(min-1) vf(mm/min) n(min-1) vf(mm/min) 3 17,300 1,250 11,500 840 7,500 256 4 13,200 1,300 8,800 880 5,600 268 5 12,500 1,500 8,300 1,000 5,100 296 6 10,350 1,400 6,900 950 4,200 280 8 7,800 1,350 5,200 900 3,200 264 10 6,150 1,260 4,100 840 2,550 248 12 5,250 1,260 3,500 840 2,100 240 Shouldering depth(ap) and radial depth(ae) ap = 0.1D ae = 0.03D Workpiece should be clamped rigidly. In case of vibration, reduce R.P.M and feed rate by the same ratio Recommended cutting conditions(PRE4000 Radius) Workpiece Conditions Pre hardened steel (HrC35 45) Hardened steel (HrC45 55) High hardened steel (HrC55 70) R.P.M Feed R.P.M Feed R.P.M Feed Diameter(0) n(min-1) vf(mm/min) n(min-1) vf(mm/min) n(min-1) vf(mm/min) 3 17,300 544 11,500 336 7,500 128 4 13,200 560 8,800 352 5,600 136 5 12,500 644 8,300 400 5,100 144 6 10,350 616 6,900 384 4,200 144 8 7,800 576 5,200 356 3,200 132 10 6,150 544 4,100 332 2,550 124 12 5,250 544 3,500 332 2,100 124 Application tip Slotting depth(ap) ap = 0.05D ae = 1.0D Workpiece should be clamped rigidly. In case of vibration, reduce R.P.M and feed rate by the same ratio Cutting condition by overhang Cutting conditions of the shank taper type in case of being clamped at neck. When the overhang is increased by 1D, decrease R.P.M and feed 10%. In case of the straight type adjust conditions according to the overhang. Ex) When the overhang is 3D and is increased by 1D, decrease R.P.M and feed 10% Notice ± Cutting conditions are up to the machine’s condition and the shape of cutting. Use cutting fluid that is proper to the workpiece and produces few temperature reaction. Endmills 14
