735 Каталог KORLOY 2016 Металлорежущий инструмент и станочная оснастка ENG Стр.F12

Каталог KORLOY 2016 Инструмент и оснастка Стр. F12 0735 ENG Lab2u

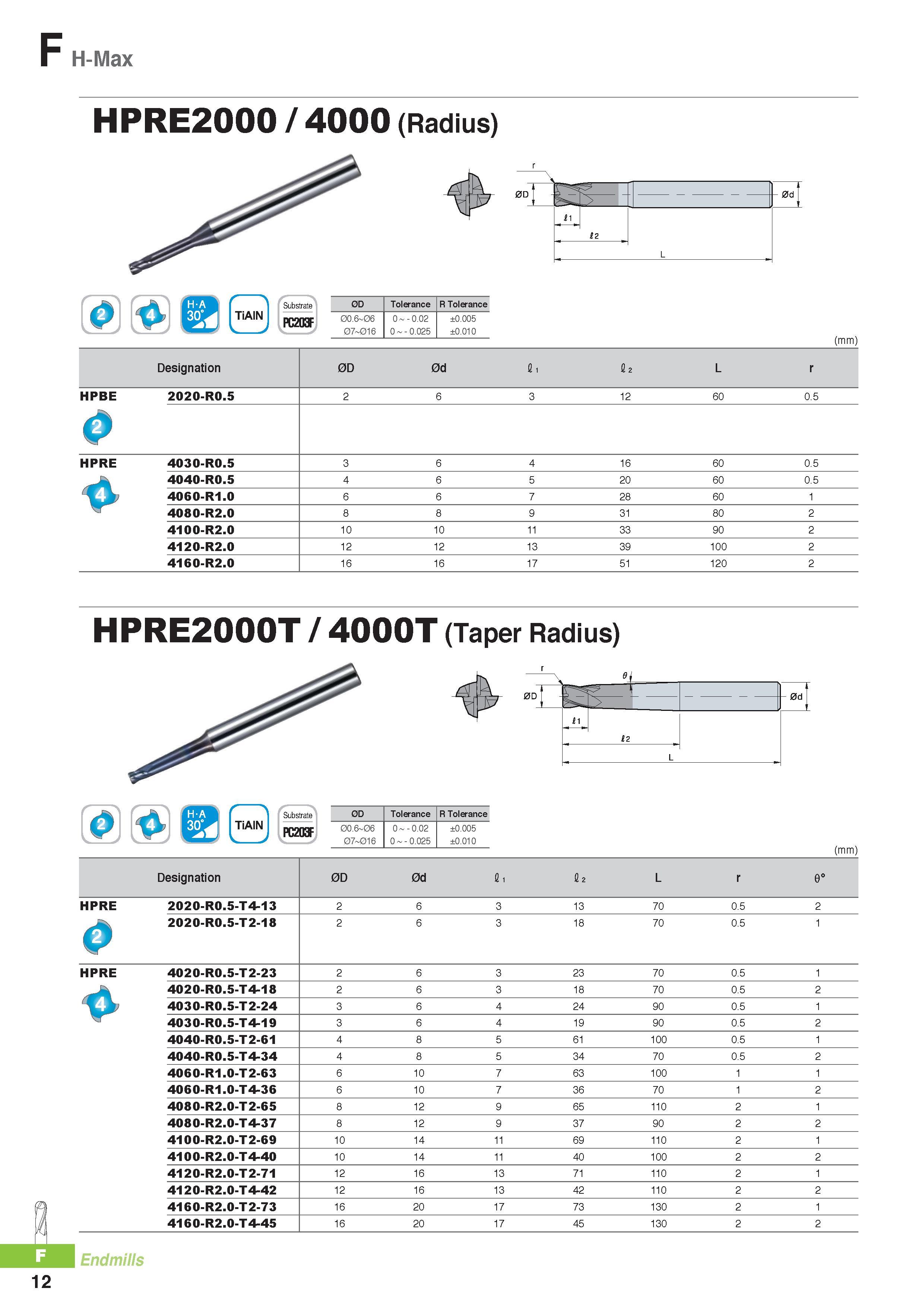

F H-Max HPRE2000 / 4000 (Radius) 0D TiAIN PC203F 0D Tolerance R Tolerance 00.6 06 07 016 0 - 0.02 0 - 0.025 ±0.005 ±0.010 0d (mm) Designation 0D 0d fii 0 2 L r HPBE 2020-R0.5 2 6 3 12 60 0.5 0 HPRE 4030-R0.5 3 6 4 16 60 0.5 4040-R0.5 4 6 5 20 60 0.5 4060-R1.0 6 6 7 28 60 1 4080-R2.0 8 8 9 31 80 2 4100-R2.0 10 10 11 33 90 2 4120-R2.0 12 12 13 39 100 2 4160-R2.0 16 16 17 51 120 2 HPRE2000T / 4000T (Taper Radius) TiAIN PC203F 0D Tolerance R Tolerance 00.6 06 07 016 0 - 0.02 0 - 0.025 ±0.005 ±0.010 (mm) Designation 0D 0d fii I2 L r 0° HPRE 2020-R0.5-T4-13 2 6 3 13 70 0.5 2 0 2020-R0.5-T2-18 2 6 3 18 70 0.5 1 HPRE 4020-R0.5-T2-23 2 6 3 23 70 0.5 1 4020-R0.5-T4-18 2 6 3 18 70 0.5 2 4030-R0.5-T2-24 3 6 4 24 90 0.5 1 4030-R0.5-T4-19 3 6 4 19 90 0.5 2 4040-R0.5-T2-61 4 8 5 61 100 0.5 1 4040-R0.5-T4-34 4 8 5 34 70 0.5 2 4060-R1.0-T2-63 6 10 7 63 100 1 1 4060-R1.0-T4-36 6 10 7 36 70 1 2 4080-R2.0-T2-65 8 12 9 65 110 2 1 4080-R2.0-T4-37 8 12 9 37 90 2 2 4100-R2.0-T2-69 10 14 11 69 110 2 1 4100-R2.0-T4-40 10 14 11 40 100 2 2 4120-R2.0-T2-71 12 16 13 71 110 2 1 4120-R2.0-T4-42 12 16 13 42 110 2 2 4160-R2.0-T2-73 16 20 17 73 130 2 1 4160-R2.0-T4-45 16 20 17 45 130 2 2 ± Endmills 12 Substrate Substrate
