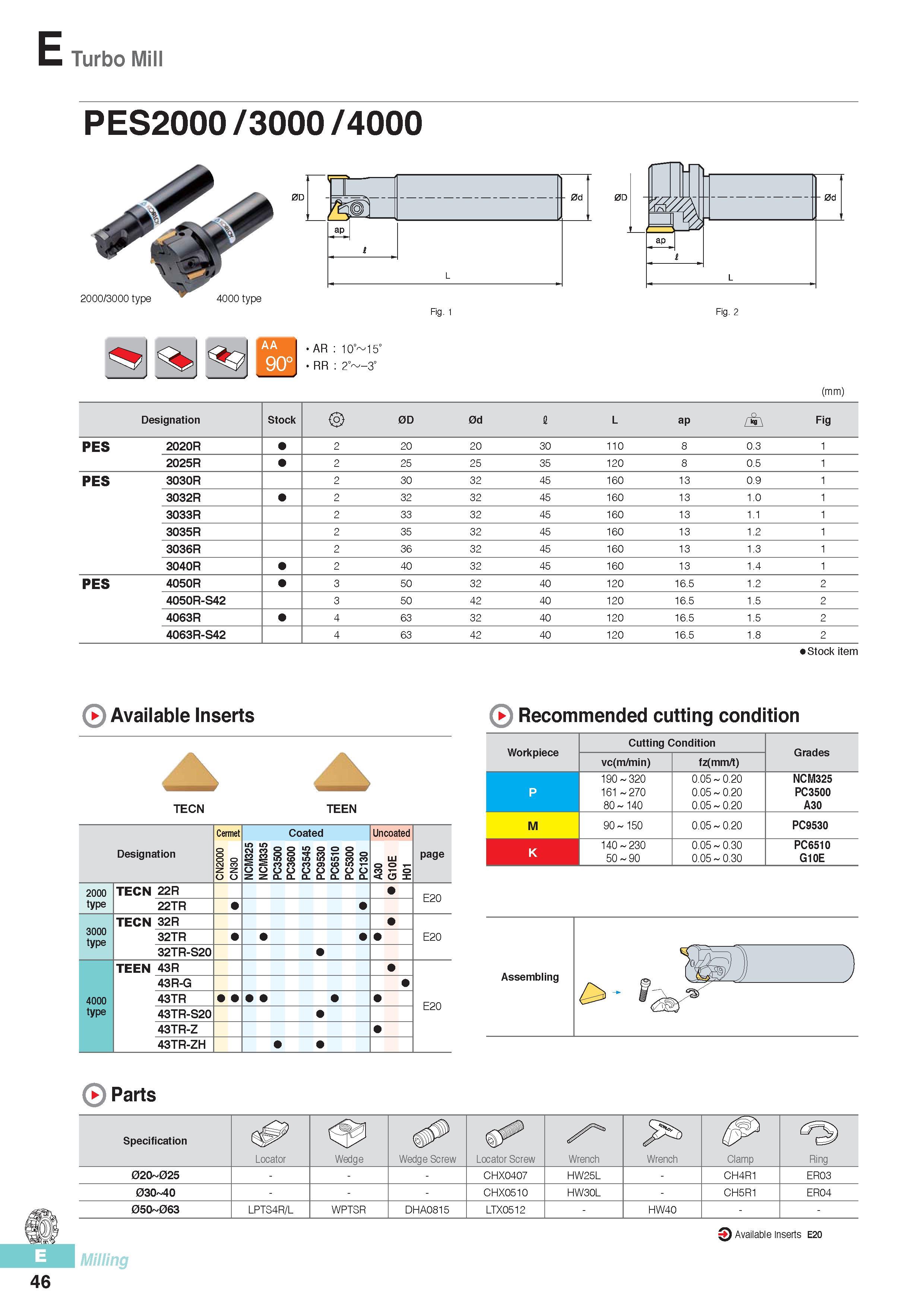

Turbo Mill PES2000/3000/4000 0d 2000/3000 type 4000 type Fig. 1 AR 10° 15‘ RR 2° -3‘ (mm) Designation Stock 0D 0d I L ap Fig PES 2020R 2 20 20 30 110 8 0.3 1 2025R 2 25 25 35 120 8 0.5 1 PES 3030R 2 30 32 45 160 13 0.9 1 3032R 2 32 32 45 160 13 1.0 1 3033R 2 33 32 45 160 13 1.1 1 3035R 2 35 32 45 160 13 1.2 1 3036R 2 36 32 45 160 13 1.3 1 3040R 2 40 32 45 160 13 1.4 1 PES 4050R 3 50 32 40 120 16.5 1.2 2 4050R-S42 3 50 42 40 120 16.5 1.5 2 4063R 4 63 32 40 120 16.5 1.5 2 4063R-S42 4 63 42 40 120 16.5 1.8 2 Stock item 0 Available Inserts TECN TEEN Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC130 A30 G10E H01 page 2000 type TECN 22R E20 22TR 3000 type TECN 32R E20 32TR 32TR-S20 4000 type TEEN 43R E20 43R-G 43TR 43TR-S20 43TR-Z 43TR-ZH 0 Recommended cutting condition Workpiece Cutting Condition Grades vc(m/min) fz(mm/l) 190 320 0.05 0.20 NCM325 P 161 270 0.05 0.20 PC3500 80 140 0.05 0.20 A30 M 90 150 0.05 0.20 PC9530 K 140 230 0.05 0.30 PC6510 50 90 0.05 0.30 G10E 0 Parts Specification 0 3) Locator Wedge Wedge Screw Locator Screw Wrench Wrench Clamp Ring 020 025 CHX0407 HW25L CH4R1 ER03 030 40 CHX0510 HW30L CH5R1 ER04 050 063 LPTS4R/L WPTSR DHA0815 LTX0512 - HW40 Milling 46 3 Available Inserts E20
