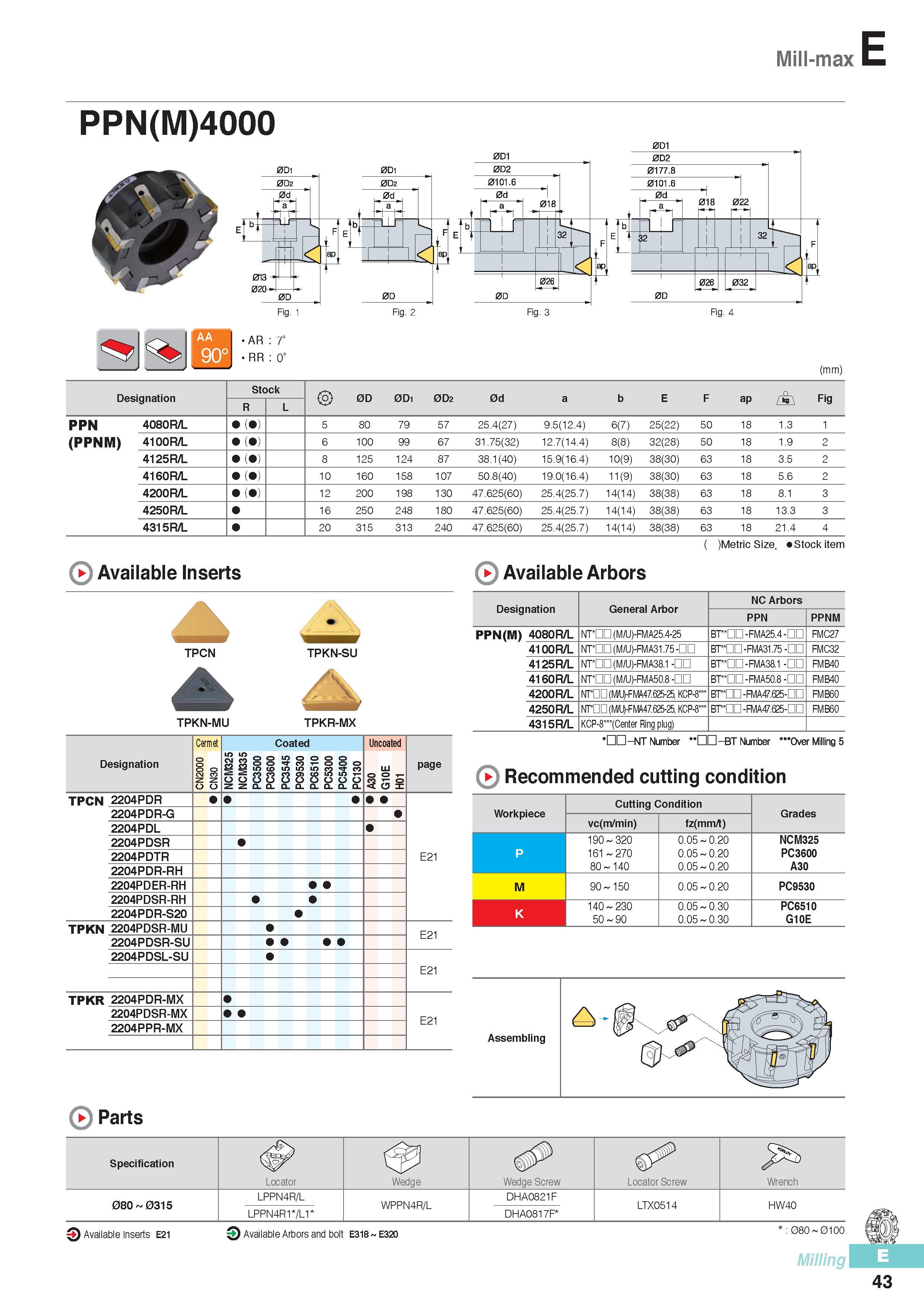

Mill-max E PPN(M)4000 AR 7" R RR O’ (mm) Designation Stock 0D 0Di 0D2 0d a b E F ap n Fig R L /fca\ PPN 4080R/L ( ) 5 80 79 57 25.4(27) 9.5(12.4) 6(7) 25(22) 50 18 1.3 1 (PPNM) 4100R/L ( ) 6 100 99 67 31.75(32) 12.7(14.4) 8(8) 32(28) 50 18 1.9 2 4125R/L ( ) 8 125 124 87 38.1(40) 15.9(16.4) 10(9) 38(30) 63 18 3.5 2 4160R/L ( ) 10 160 158 107 50.8(40) 19.0(16.4) 11(9) 38(30) 63 18 5.6 2 4200R/L ( ) 12 200 198 130 47.625(60) 25.4(25.7) 14(14) 38(38) 63 18 8.1 3 4250R/L 16 250 248 180 47.625(60) 25.4(25.7) 14(14) 38(38) 63 18 13.3 3 4315R/L 20 315 313 240 47.625(60) 25.4(25.7) 14(14) 38(38) 63 18 21.4 4 ( )Met c Size, Stock item ( Available Inserts ( Available Arbors TPKN-MU TPKR-MX Designation General Arbor NC Arbors PPN PPNM PPN(M) 4080R/L NTHD (M/U)-FMA25.4-25 BT m-FMA25.4- FMC27 4100R/L NTHD (M/U)-FMA31.75 - BT m-FMA31.75 - FMC32 4125R/L NTHD (M/U)-FMA38.1 - BT DD -FMA38.1 - FMB40 4160R/L NTHD (M/U)-FMA50.8 - BT DD-FMA50.8- FMB40 4200R/L NTDD (M/U)-FMA47.625-25, KCP-8 BT DD-FMA47.625-DD FMB60 4250R/L NTHD (M/U)-FMA47.625-25, KCP-8 BT DD-FMA47.625-DD FMB60 4315R/L KCP-8 (Center Ring plug) Cermet Coated Uncoated Designation O
