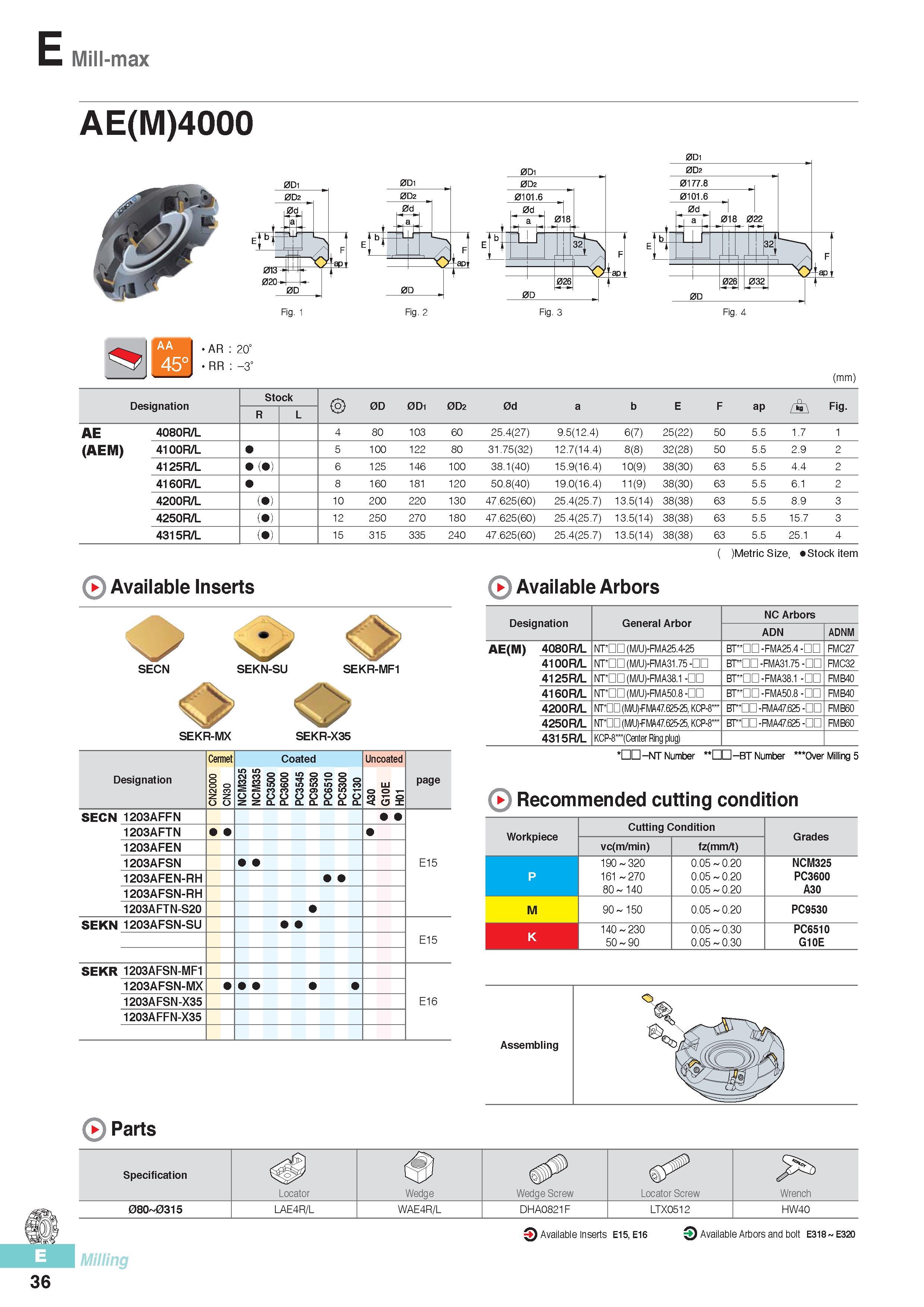

Mill-max AE(M)4000 0D1 Xy jap 0D Fig. AR 20° RR -3° (mm) Designation Stock 0D 0Di 0D2 0d a b E F ap l \ Fig. R L AE 4080R/L 4 80 103 60 25.4(27) 9.5(12.4) 6(7) 25(22) 50 5.5 1.7 1 (AEM) 4100R/L 5 100 122 80 31.75(32) 12.7(14.4) 8(8) 32(28) 50 5.5 2.9 2 4125R/L ( ) 6 125 146 100 38.1(40) 15.9(16.4) 10(9) 38(30) 63 5.5 4.4 2 4160R/L 8 160 181 120 50.8(40) 19.0(16.4) 11(9) 38(30) 63 5.5 6.1 2 4200R/L ( ) 10 200 220 130 47.625(60) 25.4(25.7) 13.5(14) 38(38) 63 5.5 8.9 3 4250R/L ( ) 12 250 270 180 47.625(60) 25.4(25.7) 13.5(14) 38(38) 63 5.5 15.7 3 4315R/L ( ) 15 315 335 240 47.625(60) 25.4(25.7) 13.5(14) 38(38) 63 5.5 25.1 4 ( )Metric Size, Stock item ( Available Inserts ( Available Arbors SECN SEKN-SU SEKR-MF1 SEKR-MX SEKR-X35 Designation General Arbor NC Arbors ADN ADNM AE(M) 4080R/L NT DD (M/U)-FMA25.4-25 BT m-FMA25.4- FMC27 4100R/L NT DD (M/U)-FMA31.75 - BT m -FMA31.75 - FMC32 4125R/L NT DD (M/U)-FMA38.1 - BT DD-FMA38.1 - FMB40 4160R/L NT DD (M/U)-FMA50.8 - BT DD-FMA50.8- FMB40 4200R/L NOT (M/U)-FMA47.625-25, KCP-8 BT DD-FMA47.625 - FMB60 4250R/L NOT (M/U)-FMA47.625-25, KCP-8 BT DD-FMA47.625 - FMB60 4315R/L KCP-8 (Center Ring plug) Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC130 A30 G10E H01 page SECN 1203AFFN E15 1203AFTN 1203AFEN 1203AFSN 1203AFEN-RH 1203AFSN-RH 1203AFTN-S20 SEKN 1203AFSN-SU E15 SEKR 1203AFSN-MF1 E16 1203AFSN-MX 1203AFSN-X35 1203AFFN-X35 -NT Number -BT Number 0ver Milling 5 ( Recommended cutting condition Workpiece Cutting Condition Grades vc(m/min) fz(mm/t) 190 320 0.05 0.20 NCM325 P 161 270 0.05 0.20 PC3600 80 140 0.05 0.20 A30 M 90 150 0.05 0.20 PC9530 K 140 230 0.05 0.30 PC6510 50 90 0.05 0.30 G10E ( Parts Specification I Locator Wedge Wedge Screw Locator Screw Wrench 080 0315 LAE4R/L WAE4R/L DHA0821F LTX0512 HW40 Available inserts E15, E16 O Available Arbors and bolt E318 E320 Milling 36 AA 45°
