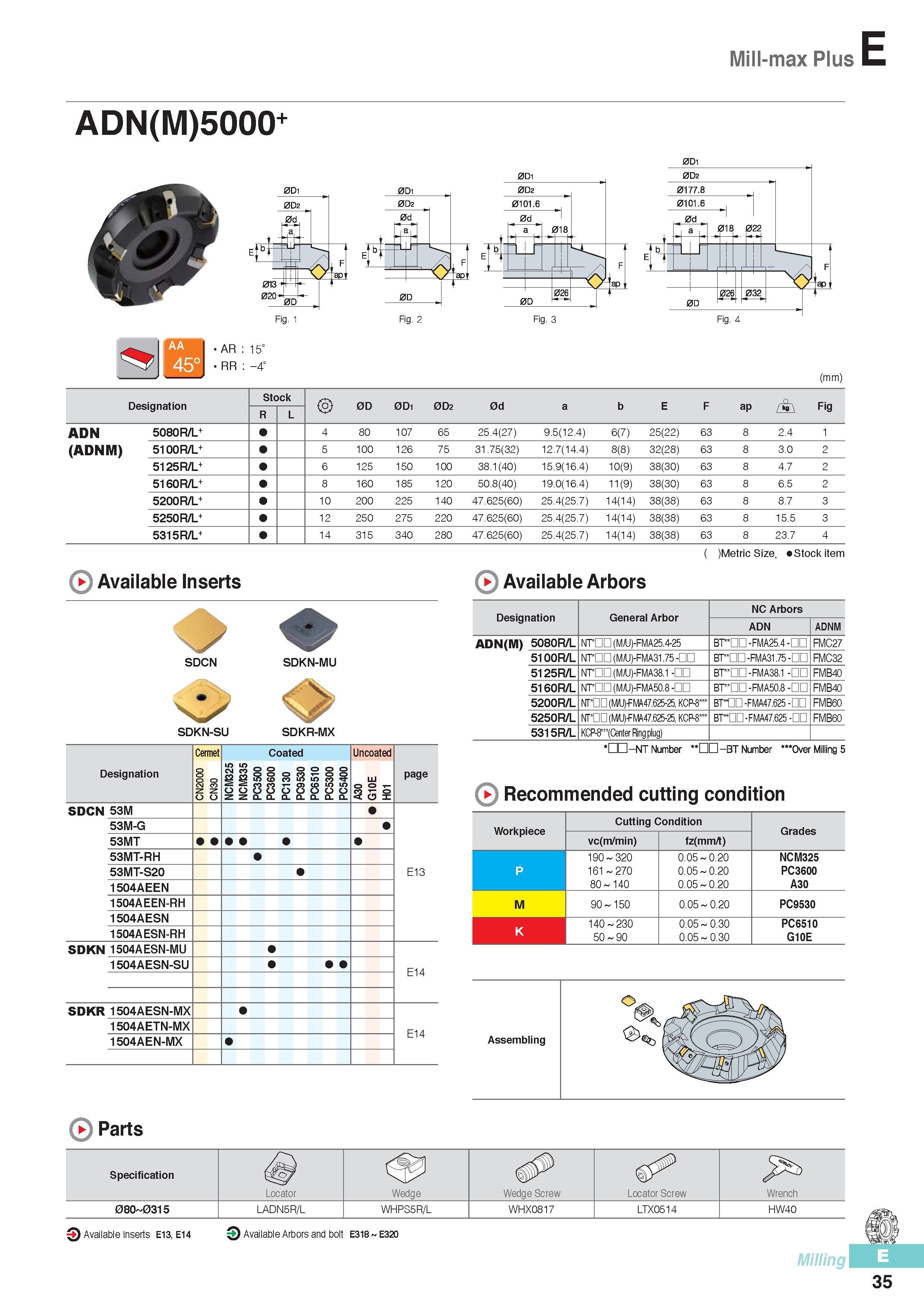

Mill-max Plus ADN(M)5000+ AR 15° RR -4° (mm) Designation Stock 0D 0D1 0D2 0d a b E F ap / \ Fig R L ADN 5080R/L+ 4 80 107 65 25.4(27) 9.5(12.4) 6(7) 25(22) 63 8 2.4 1 (ADNM) 5100R/L+ 5 100 126 75 31.75(32) 12.7(14.4) 8(8) 32(28) 63 8 3.0 2 5125R/L+ 6 125 150 100 38.1(40) 15.9(16.4) 10(9) 38(30) 63 8 4.7 2 5160R/L+ 8 160 185 120 50.8(40) 19.0(16.4) 11(9) 38(30) 63 8 6.5 2 5200R/L+ 10 200 225 140 47.625(60) 25.4(25.7) 14(14) 38(38) 63 8 8.7 3 5250R/L+ 12 250 275 220 47.625(60) 25.4(25.7) 14(14) 38(38) 63 8 15.5 3 5315R/L+ 14 315 340 280 47.625(60) 25.4(25.7) 14(14) 38(38) 63 8 23.7 4 ( )Metric Size, Stock item ( Available Inserts ( Available Arbors SDKN-SU SDKR-MX Designation General Arbor NC Arbors ADN ADNM ADN(M) 5080R/L NT m (M/U)-FMA25.4-25 BT m-FMA25.4 - FMC27 5100R/L NT DD (M/U)-FMA31.75 - BT DD -FMA31.75- FMC32 5125R/L NT DD (M/U)-FMA38.1 - BT DD-FMA38.1 - FMB40 5160R/L NT DD (M/U)-FMA50.8 - BT DD-FMA50.8 - FMB40 5200R/L NT DD (M/U)-FMA47.625-25, KCP-8 BTCD -FMA47.625 FMB60 5250R/L NT DD (M/U)-FMA47.625-25, KCP-8 BT”m-FMA47.625 FMB60 5315R/L KCP-8 (Center Ring plug) Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC130 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 page SDCN 53M E13 53M-G 53MT 53MT-RH 53MT-S20 1504AEEN 1504AEEN-RH 1504AESN 1504AESN-RH SDKN 1504AESN-MU E14 1504AESN-SU SDKR 1504AESN-MX E14 1504AETN-MX 1504AEN-MX -NT Number -BT Number ‘"Over Milling 5 ( Recommended cutting condition Workpiece Cutting Condition Grades vc(m/min) fz(mm/t) 190 320 0.05 0.20 NCM325 P 161 270 0.05 0.20 PC3600 80 140 0.05 0.20 A30 M 90 150 0.05 0.20 PC9530 K 0 3 2 1 0 4 0.05 0.30 PC6510 50 90 0.05 0.30 G10E ( Parts Specification Locator Wedge Wedge Screw Locator Screw Wrench 080 0315 LADN5R/L WHPS5R/L WHX0817 LTX0514 HW40 3 Available Inserts E13, E14 O Available Arbors and bolt E318 E320 Milling 35
