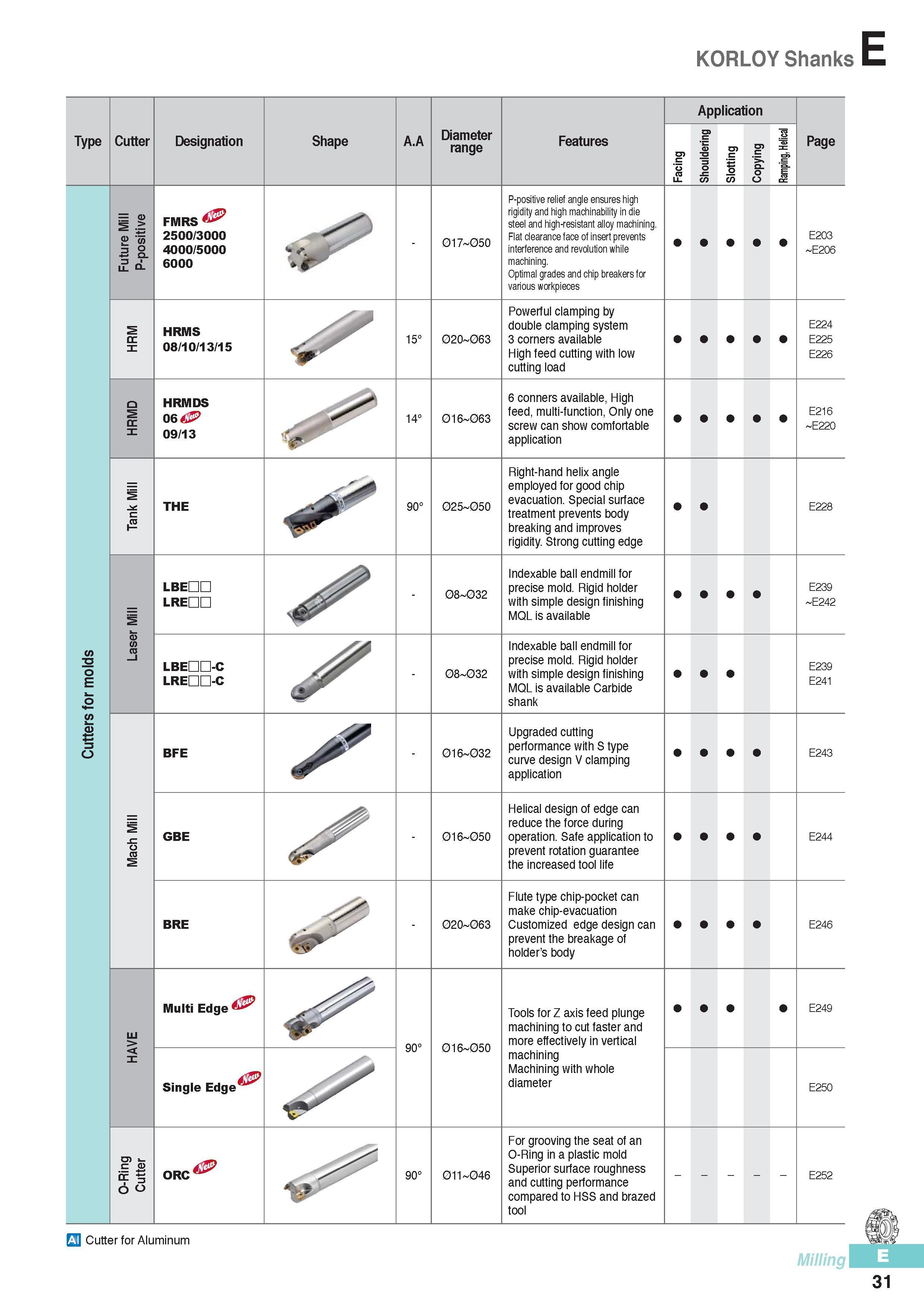

KORLOY Shanks Type Cutter Designation Shape A.A Diameter range Features Application o co o Page m 3 SL if cl. FMRS 2500/3000 4000/5000 6000 HRMS 08/10/13/15 Q S CC HRMDS 06 09/13 THE 017-050 P-positive relief angle ensures high rigidity and high machinability in die steel and high-resistant alloy machining. Flat clearance face of insert prevents interference and revolution while machining. Optimal grades and chip breakers for various workpieces E203 -E206 15° 020-063 Powerful clamping by double clamping system 3 corners available High feed cutting with low cutting load E224 E225 E226 14° 016-063 6 conners available, High feed, multi-function, Only one screw can show comfortable application E216 -E220 90° 025-050 Right-hand helix angle employed for good chip evacuation. Special surface treatment prevents body breaking and improves rigidity. Strong cutting edge E228 LBEDD LREDD 08-032 Indexable ball endmill for precise mold. Rigid holder with simple design finishing MQL is available E239 -E242 a> a o <0 (U 3 O o tn <0 LBEHO-C LREHO-C 08-032 Indexable ball endmill for precise mold. Rigid holder with simple design finishing MQL is available Carbide shank E239 E241 BFE 016-032 Upgraded cutting performance with S type curve design V clamping application E243 GBE 016-050 Helical design of edge can reduce the force during operation. Safe application to prevent rotation guarantee the increased tool life E244 BRE 020-063 Flute type chip-pocket can make chip-evacuation Customized edge design can prevent the breakage of holder’s body E246 Multi Edge TO >- E op = 90° 016-050 Tools for Z axis feed plunge machining to cut faster and more effectively in vertical machining Machining with whole diameter E249 E250 90° 011-046 For grooving the seat of an O-Ring in a plastic mold Superior surface roughness and cutting performance compared to HSS and brazed tool E252 Cutter for Aluminum Milling 31
