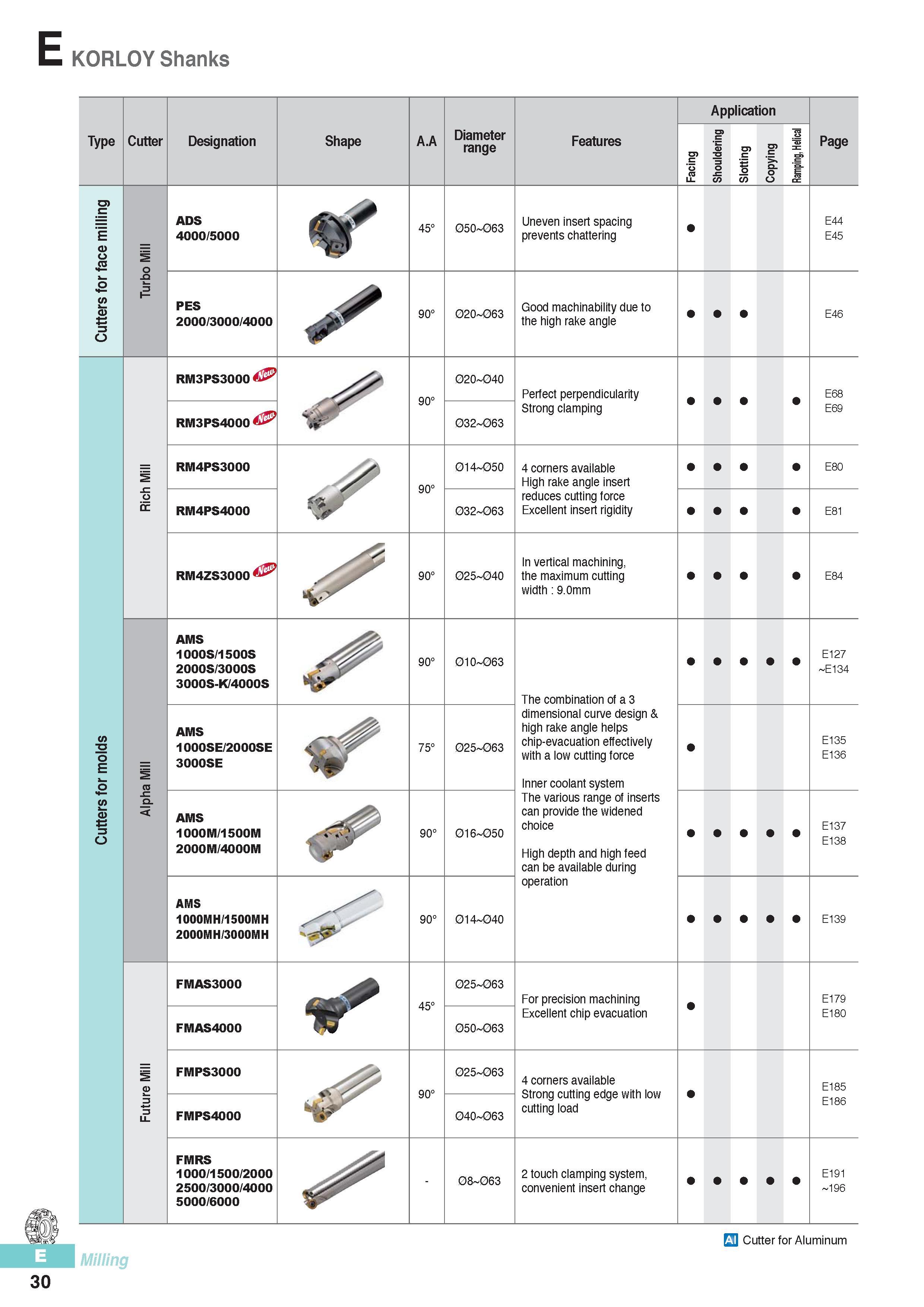

KORLOY Shanks Type Cutter Designation Shape A.A Diameter range Features Application Page Facing Shouldering Slotting Copying Ramping, Helical Cutters for face milling Turbo Mill ADS 4000/5000 45° 050-063 Uneven insert spacing prevents chattering E44 E45 PES 2000/3000/4000 X 90° 020-063 Good machinability due to the high rake angle E46 Cutters for molds Rich Mill RM3PS3000 90° 020-040 Perfect perpendicularity Strong clamping E68 E69 RM3PS4000 032-063 RM4PS3000 90° 014-050 4 corners available High rake angle insert reduces cutting force Excellent insert rigidity E80 RM4PS4000 032-063 E81 RM4ZS3000 90° 025-040 In vertical machining, the maximum cutting width 9.0mm E84 Alpha Mill AMS 1000S/1500S 2000S/3000S 3000S-K/4000S 90° 010-063 The combination of a 3 dimensional curve design & high rake angle helps chip-evacuation effectively with a low cutting force Inner coolant system The various range of inserts can provide the widened choice High depth and high feed can be available during operation E127 -E134 AMS 1000SE/2000SE 3000SE if 75° 025-063 E135 E136 AMS 1000M/1500M 2000M/4000M 90° 016-050 E137 E138 AMS 1000MH/1500MH 2000MH/3000MH 90° 014-040 E139 Future Mill FMAS3000 45° 025-063 For precision machining Excellent chip evacuation E179 E180 FMAS4000 050-063 FMPS3000 90° 025-063 4 corners available Strong cutting edge with low cutting load E185 E186 FMPS4000 040-063 FMRS 1000/1500/2000 2500/3000/4000 5000/6000 - 08-063 2 touch clamping system, convenient insert change E191 -196 as. hi Cutter for Aluminum E Milling 30
