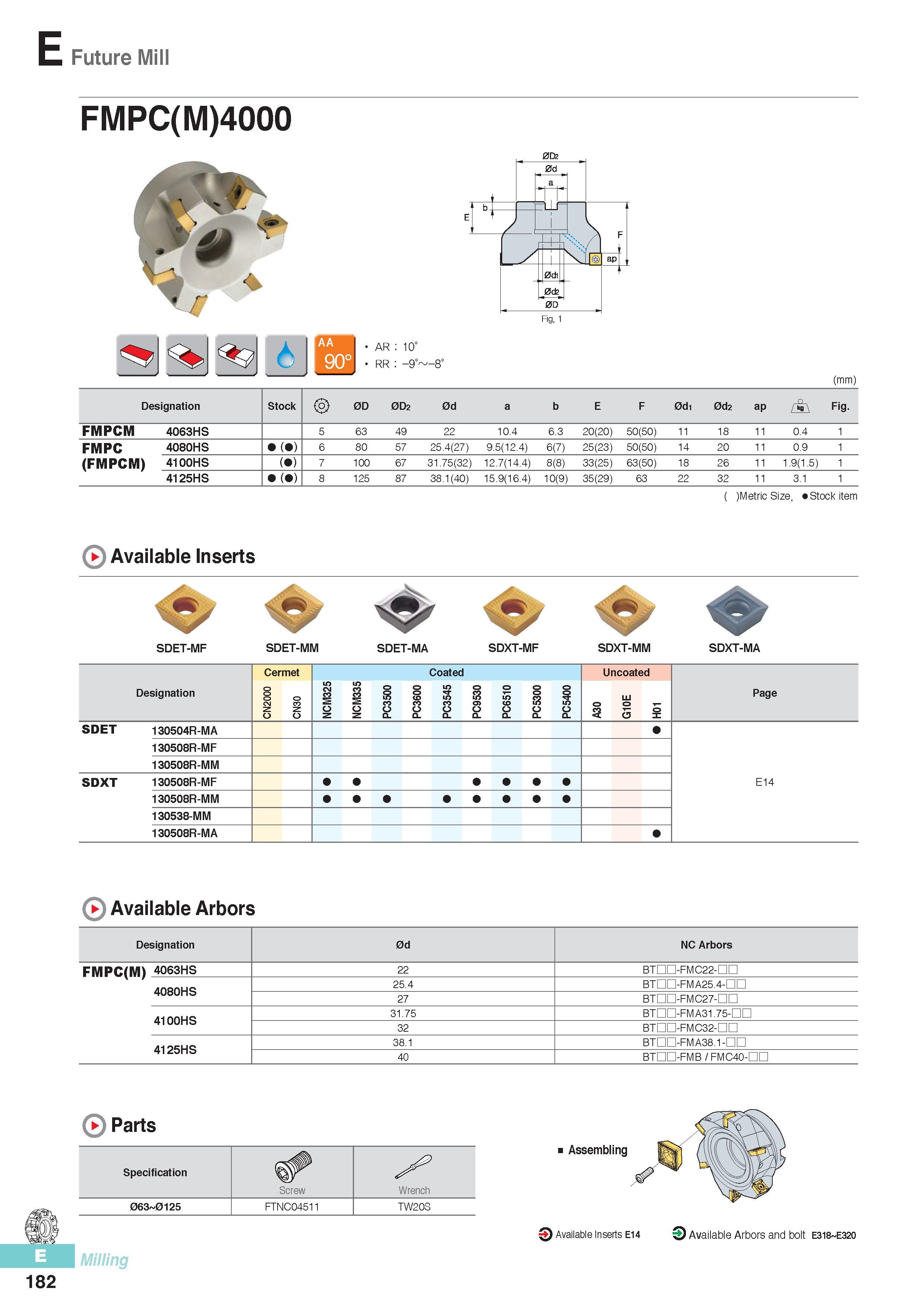

Future Mill FMPC(M)4000 Fig. 1 AR 10' RR -9° (mm) Designation Stock 0D 0D2 0d a b E F 0di 0d2 ap to Fi FMPCM 4063HS 5 63 49 22 10.4 6.3 20(20) 50(50) 11 18 11 0.4 1 FMPC 4080HS ( ) 6 80 57 25.4(27) 9.5(12.4) 6(7) 25(23) 50(50) 14 20 11 0.9 1 (FMPCM) 4100HS ( ) 7 100 67 31.75(32) 12.7(14.4) 8(8) 33(25) 63(50) 18 26 11 1.9(1.5) 1 4125HS ( ) 8 125 87 38.1(40) 15.9(16.4) 10(9) 35(29) 63 22 32 11 3.1 1 ( )MetricSize, Stock item ( Available Inserts SDET-MF SDET-MM SDET-MA SDXT-MF SDXT-MM SDXT-MA Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 o 3 G10E 01 X SDET 130504R-MA 130508R-MF 130508R-MM SDXT 130508R-MF E14 130508R-MM 130538-MM 130508R-MA 0 Available Arbors Designation 0d NC Arbors FMPC(M) 4063HS 22 BTHO-FMC22-HD 4080HS 25.4 BTHO-FMA25.4-HD 27 BTnn-FMC27-nn 4100HS 31.75 BTHO-FMA31.75-HD 32 BTnn-FMC32-nn 4125HS 38.1 BTHO-FMA38.1-HD 40 BTDn-FMB/FMC40-nn
