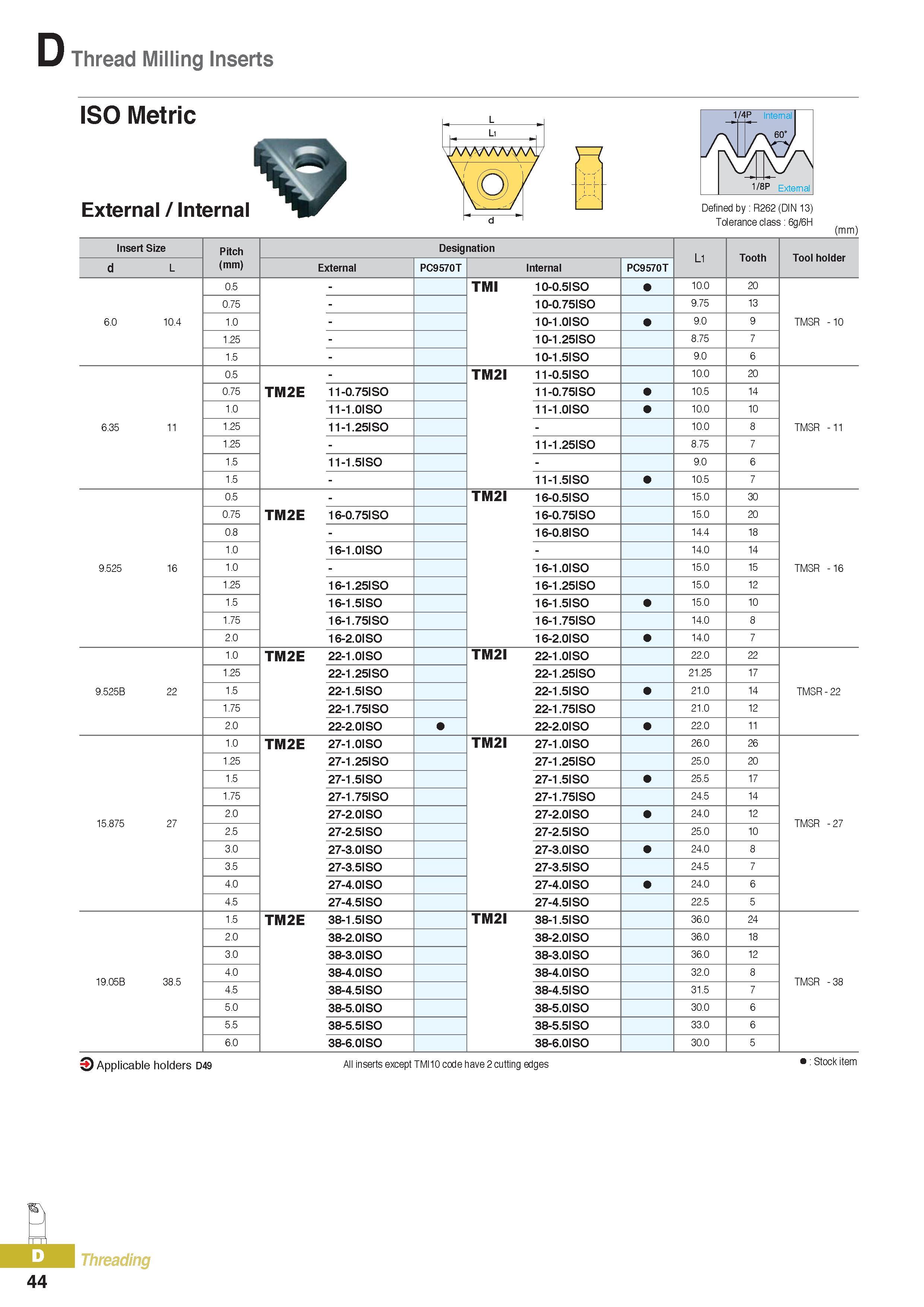

Thread Milling Inserts ISO Metric External / Internal Defined by R262 (DIN 13) Tolerance class 6g/6H (mm) Insert Size Pitch (mm) Designation L1 Tooth Tool holder d L External PC9570T Internal PC9570T 6.0 10.4 0.5 - TMI 10-0.5ISO 10.0 20 TMSR - 10 0.75 - 10-0.75ISO 9.75 13 1.0 - 10-1.0ISO 9.0 9 1.25 - 10-1.25ISO 8.75 7 1.5 - 10-1.5ISO 9.0 6 6.35 11 0.5 - TM2I 11-0.5ISO 10.0 20 TMSR - 11 0.75 TM2E 11-0.75ISO 11-0.75ISO 10.5 14 1.0 11-1.0ISO 11-1.0ISO 10.0 10 1.25 11-1.25ISO - 10.0 8 1.25 - 11-1.25ISO 8.75 7 1.5 11-1.5ISO - 9.0 6 1.5 - 11-1.5ISO 10.5 7 9.525 16 0.5 - TM2I 16-0.5ISO 15.0 30 TMSR - 16 0.75 TM2E 16-0.75ISO 16-0.75ISO 15.0 20 0.8 - 16-0.8ISO 14.4 18 1.0 16-1.0ISO - 14.0 14 1.0 - 16-1.0ISO 15.0 15 1.25 16-1.25ISO 16-1.25ISO 15.0 12 1.5 16-1.5ISO 16-1.5ISO 15.0 10 1.75 16-1.75ISO 16-1.75ISO 14.0 8 2.0 16-2.0ISO 16-2.0ISO 14.0 7 9.525B 22 1.0 TM2E 22-1.0ISO TM2I 22-1.0ISO 22.0 22 TMSR - 22 1.25 22-1.25ISO 22-1.25ISO 21.25 17 1.5 22-1.5ISO 22-1.5ISO 21.0 14 1.75 22-1.75ISO 22-1.75ISO 21.0 12 2.0 22-2.0ISO 22-2.0ISO 22.0 11 15.875 27 1.0 TM2E 27-1.0ISO TM2I 27-1.0ISO 26.0 26 TMSR - 27 1.25 27-1.25ISO 27-1.25ISO 25.0 20 1.5 27-1.5ISO 27-1.5ISO 25.5 17 1.75 27-1.75ISO 27-1.75ISO 24.5 14 2.0 27-2.0ISO 27-2.0ISO 24.0 12 2.5 27-2.5ISO 27-2.5ISO 25.0 10 3.0 27-3.0ISO 27-3.0ISO 24.0 8 3.5 27-3.5ISO 27-3.5ISO 24.5 7 4.0 27-4.0ISO 27-4.0ISO 24.0 6 4.5 27-4.5ISO 27-4.5ISO 22.5 5 19.05B 38.5 1.5 TM2E 38-1.5ISO TM2I 38-1.5ISO 36.0 24 TMSR - 38 2.0 38-2.0ISO 38-2.0ISO 36.0 18 3.0 38-3.0ISO 38-3.0ISO 36.0 12 4.0 38-4.0ISO 38-4.0ISO 32.0 8 4.5 38-4.5ISO 38-4.5ISO 31.5 7 5.0 38-5.0ISO 38-5.0ISO 30.0 6 5.5 38-5.5ISO 38-5.5ISO 33.0 6 6.0 38-6.0ISO 38-6.0ISO 30.0 5 O Applicable holders D49 All inserts except TMI10 code have 2 cutting edges Stock item Threading 44
