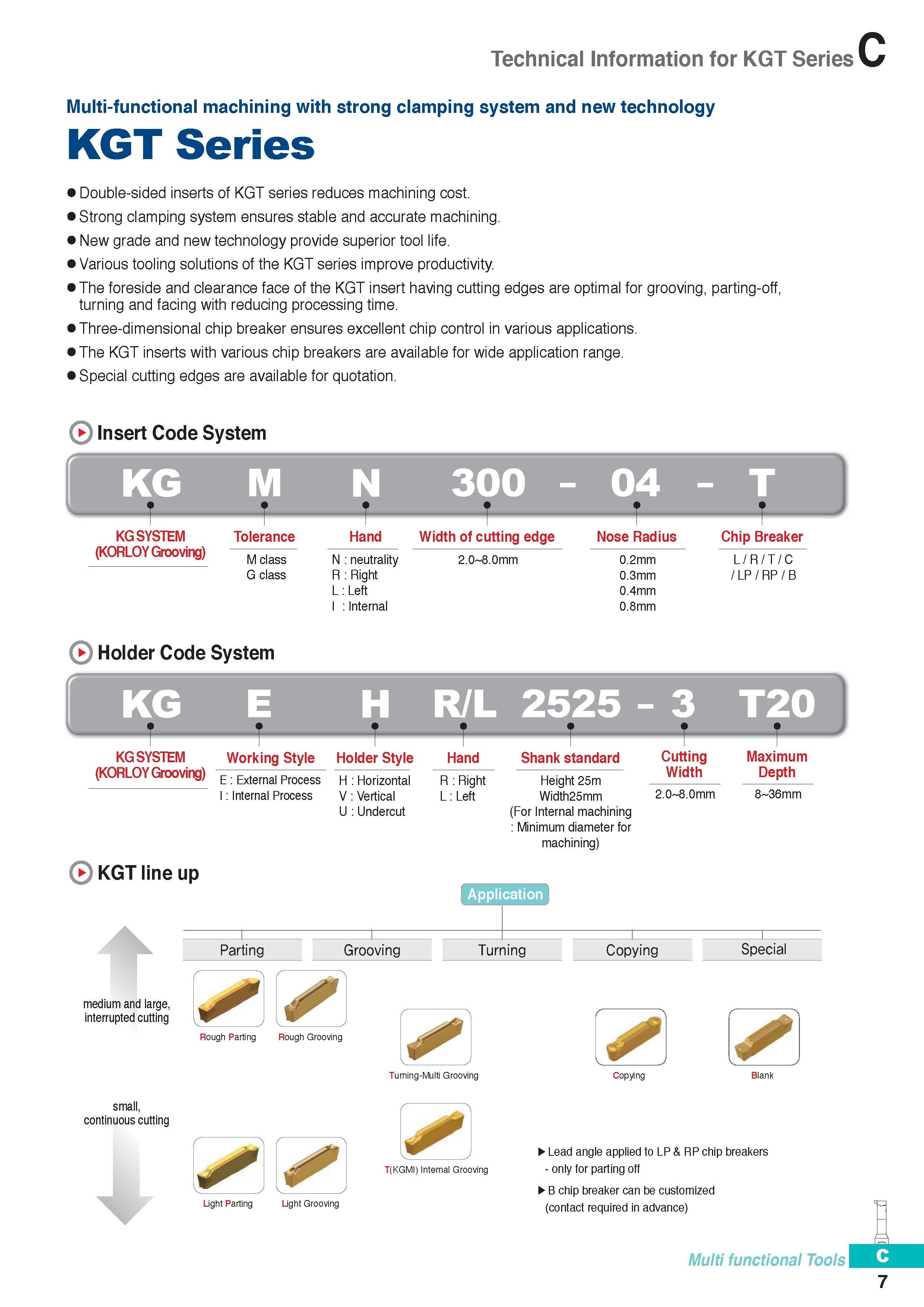

Technical Information for KGT Series Multi-functional machining with strong clamping system and new technology KGT Series Double-sided inserts of KGT series reduces machining cost. Strong clamping system ensures stable and accurate machining. New grade and new technology provide superior tool life. Various tooling solutions of the KGT series improve productivity. The foreside and clearance face of the KGT insert having cutting edges are optimal for grooving, parting-off, turning and facing with reducing processing time. Three-dimensional chip breaker ensures excellent chip control in various applications. The KGT inserts with various chip breakers are available for wide application range. Special cutting edges are available for quotation. Insert Code System KG M N 300 - I KG SYSTEM (KORLOY Grooving) Tolerance M class G class Hand Width of cutting edge N neutrality R Right L Left I Internal 2.0 8.0mm Nose Radius 0.2mm 0.3mm 0.4mm 0.8mm Chip Breaker L/R/T/C /LP/RP/B Holder Code System KG E H R/L 2525 - 3 T20 KG SYSTEM (KORLOY Grooving) Working Style Holder Style Hand E External Process I Internal Process H Horizontal V Vertical U Undercut R Right L Left Shank standard Height 25m Width25mm (For Internal machining Minimum diameter for machining) Cutting Width 2.0 8.0mm Maximum Depth 8 36mm medium and large, interrupted cutting Rough Parting Rough Grooving Turning-Multi Grooving Copying small, continuous cutting Light Parting Light Grooving T(KGMI) Internal Grooving Lead angle applied to LP & RP chip breakers - only for parting off B chip breaker can be customized (contact required in advance) Multi functional Tools mm 7
