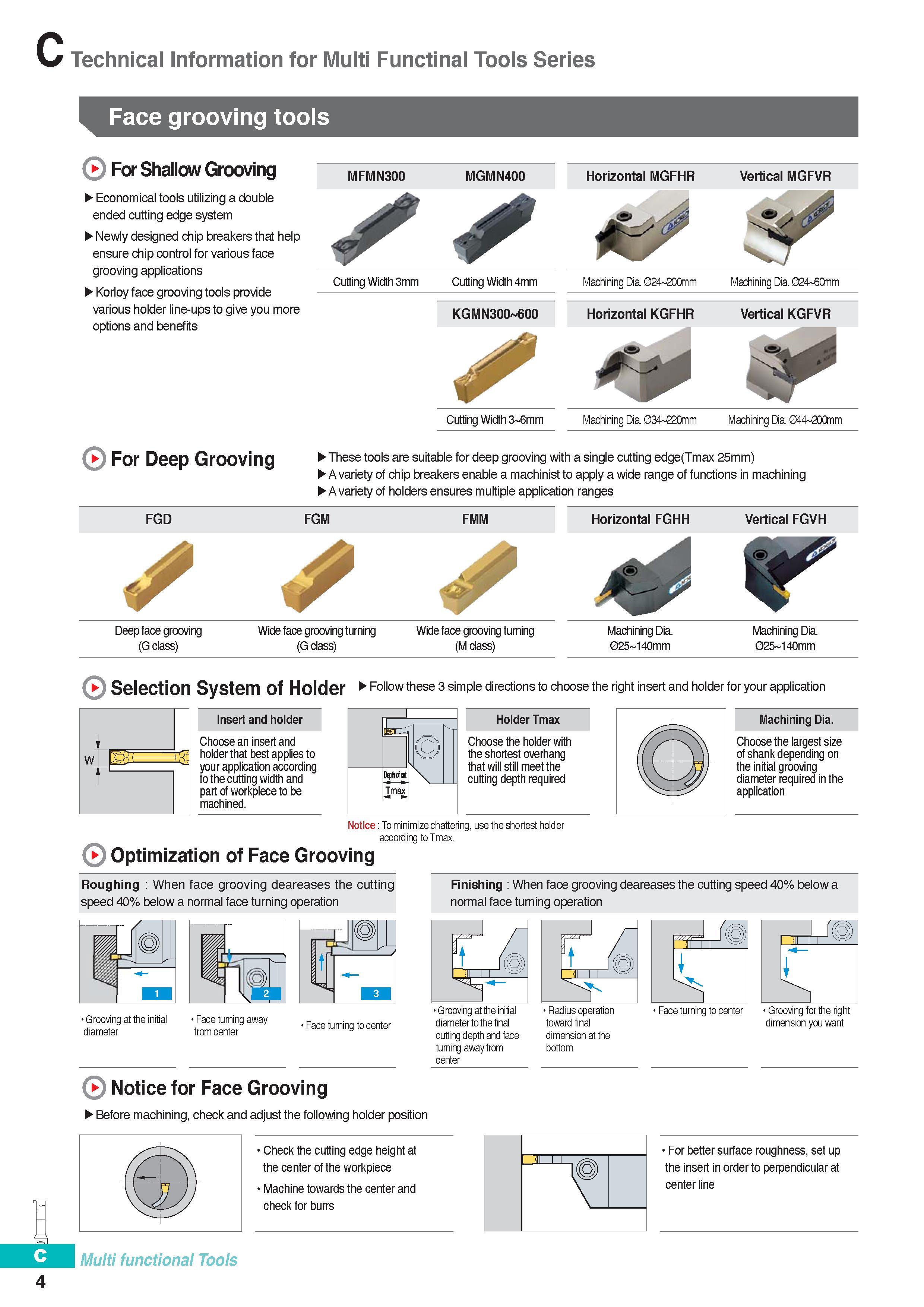

Face grooving lathe tools Korloy For Shallow Grooving Economical tools utilizing a double ended cutting edge system Newly designed chip breakers that help ensure chip control for various face grooving applications Korloy face grooving tools provide various holder line-ups to give you more options and benefits MFMN300 MGMN400 Horizontal MGFHR Vertical MGFVR Cutting Width 3mm Cutting Width 4mm Machining Dia. 024 2OOmm Machining Dia. 024 6Omm KGMN300 600 Horizontal KGFHR Vertical KGFVR Cutting Width 3 6mm Machining Dia. 034 22Omm Machining Dia. 044 2OOmm For Deep Grooving FGD Deep face grooving (G class) These tools are suitable for deep grooving with a single cutting edge(Tmax 25mm) A variety of chip breakers enable a machinist to apply a wide range of functions in machining A variety of holders ensures multiple application ranges FGM FMM Wide face grooving turning (G class) Wide face grooving turning (M class) Horizontal FGHH Machining Dia. 025 14Omm Vertical FGVH Machining Dia. 025 14Omm Selection System of Holder Follow these 3 simple directions to choose the right insert and holder for your application w Insert and holder Choose an insert and holder that best applies to your application according to the cutting width and part of workpiece to be machined. Deptiofcut Tmax Holder Tmax Choose the holder with the shortest overhang that will still meet the cutting depth required Machining Dia. Choose the largest size of shank depending on the initial grooving diameter required in the application Notice To minimize chattering, use the shortest holder according to Tmax. Optimization of Face Grooving Roughing When face grooving deareases the cutting speed 4O% below a normal face turning operation Finishing When face grooving deareases the cutting speed 4O% below a normal face turning operation M ct x. Grooving at the initial Face turning away diameter from center Face turning to center diameter to the final cutting depth and face turning away from center Radius operation toward final dimension at the bottom Face turning to center Grooving for the right dimension you want Notice for Face Grooving Before machining, check and adjust the following holder position Check the cutting edge height at the center of the workpiece Machine towards the center and check for burrs For better surface roughness, set up the insert in order to perpendicular at center line C Multi functional Tools 4 C Technical Information for Multi Functinal Tools Series
