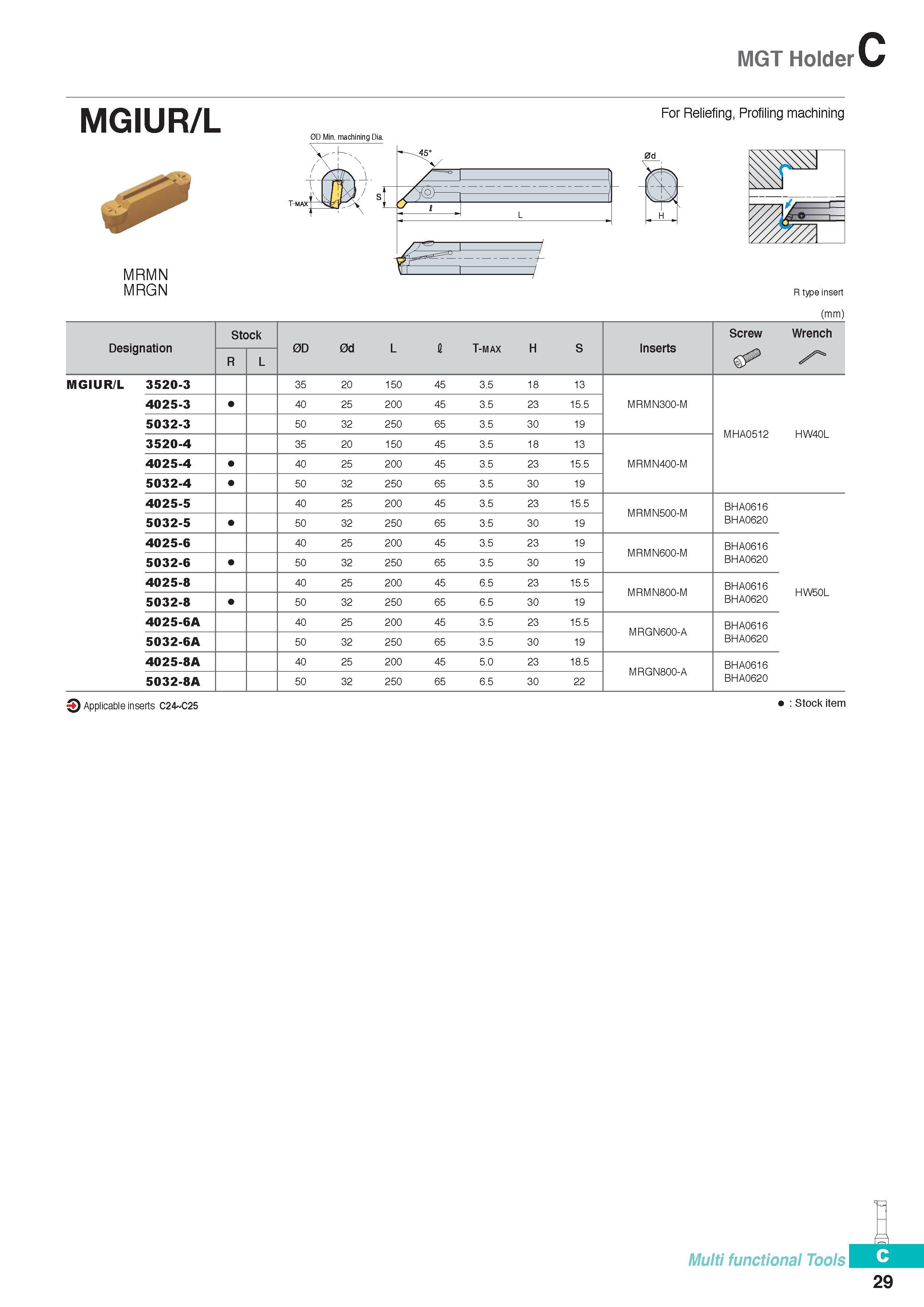

MGT Holder MGIUR/L For Reliefing, Profiling machining 0D Min. machining Dia. MRMN MRGN R type insert (mm) Designation Stock 0D 0d L I T-max H S Inserts Screw Wrench R L MGIUR/L 3520-3 35 20 150 45 3.5 18 13 4025-3 40 25 200 45 3.5 23 15.5 MRMN300-M 5032-3 50 32 250 65 3.5 30 19 MHA0512 HW40L 3520-4 35 20 150 45 3.5 18 13 4025-4 40 25 200 45 3.5 23 15.5 MRMN400-M 5032-4 50 32 250 65 3.5 30 19 4025-5 40 25 200 45 3.5 23 15.5 MRMN500-M BHA0616 5032-5 50 32 250 65 3.5 30 19 BHA0620 4025-6 40 25 200 45 3.5 23 19 MRMN600-M BHA0616 5032-6 50 32 250 65 3.5 30 19 BHA0620 4025-8 40 25 200 45 6.5 23 15.5 MRMN800-M BHA0616 HW50L 5032-8 50 32 250 65 6.5 30 19 BHA0620 4025-6A 40 25 200 45 3.5 23 15.5 MRGN600-A BHA0616 5032-6A 50 32 250 65 3.5 30 19 BHA0620 4025-8A 40 25 200 45 5.0 23 18.5 MRGN800-A BHA0616 5032-8A 50 32 250 65 6.5 30 22 BHA0620 3 Applicable inserts C24 C25 Stock item Multi functional Tools C" 29
