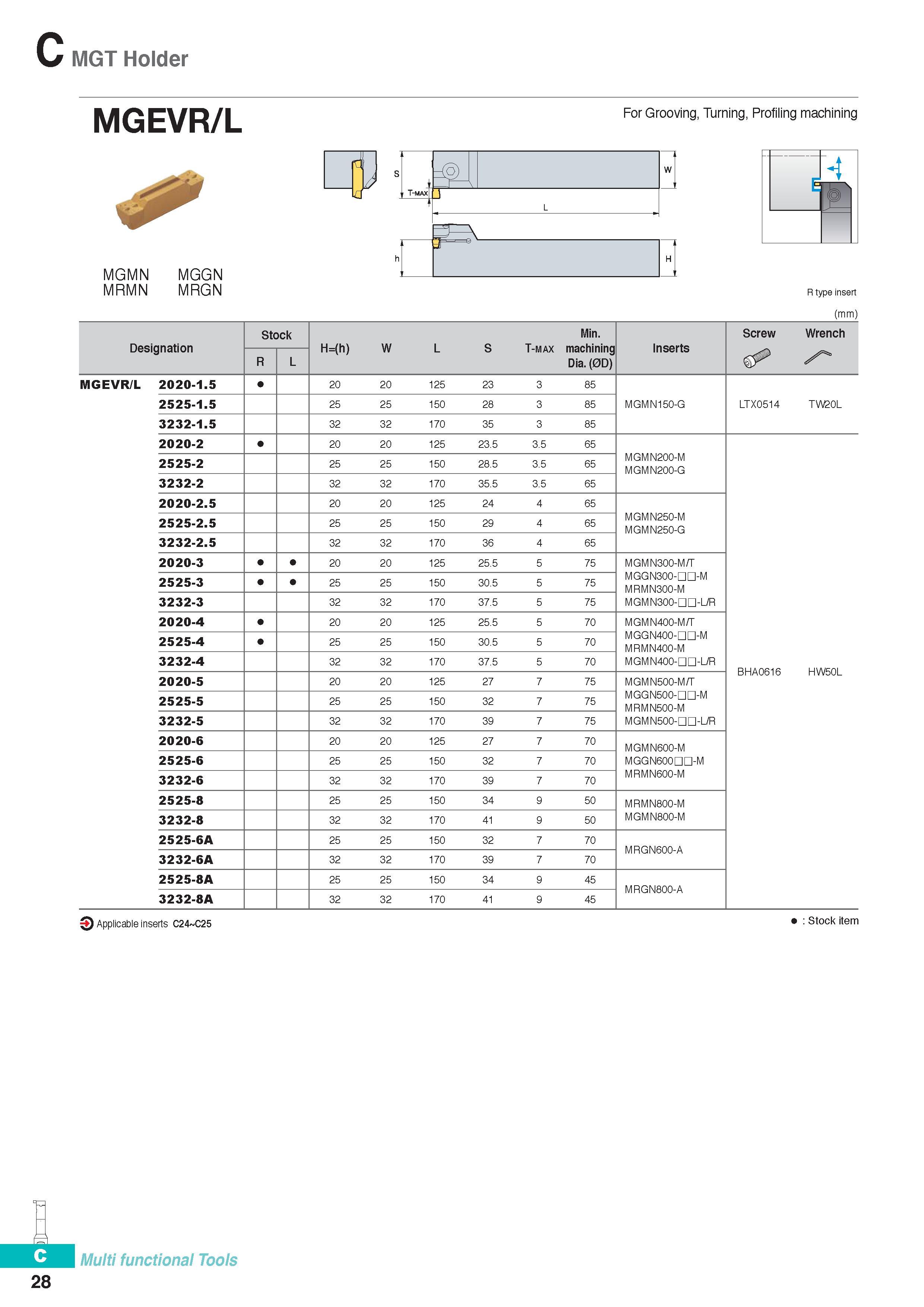

MGT Holder MGEVR/L For Grooving, Turning, Profiling machining MGMN MGGN MRMN MRGN R type insert (mm) Stock Min. Screw Wrench Designation H=(h) W L S T-max machining Dia. (0D) Inserts R L MGEVR/L 2020-1.5 20 20 125 23 3 85 2525-1.5 25 25 150 28 3 85 MGMN150-G LTX0514 TW20L 3232-1.5 32 32 170 35 3 85 2020-2 20 20 125 23.5 3.5 65 MGMN200-M MGMN200-G 2525-2 25 25 150 28.5 3.5 65 3232-2 32 32 170 35.5 3.5 65 2020-2.5 20 20 125 24 4 65 MGMN250-M MGMN250-G 2525-2.5 25 25 150 29 4 65 3232-2.5 32 32 170 36 4 65 2020-3 20 20 125 25.5 5 75 MGMN300-M/T 2525-3 25 25 150 30.5 5 75 MGGN300-DD-M MRMN300-M 3232-3 32 32 170 37.5 5 75 MGMN300-DD-L/R 2020-4 20 20 125 25.5 5 70 MGMN400-M/T 2525-4 25 25 150 30.5 5 70 MGGN400-LILI-M MRMN400-M 3232-4 32 32 170 37.5 5 70 MGMN400-DD-L/R BHA0616 HW50L 2020-5 20 20 125 27 7 75 MGMN500-M/T 2525-5 25 25 150 32 7 75 MGGN500-DD-M MRMN500-M 3232-5 32 32 170 39 7 75 MGMN500-DD-L/R 2020-6 20 20 125 27 7 70 MGMN600-M 2525-6 25 25 150 32 7 70 MGGN600DD-M 3232-6 32 32 170 39 7 70 MRMN600-M 2525-8 25 25 150 34 9 50 MRMN800-M 3232-8 32 32 170 41 9 50 MGMN800-M 2525-6A 25 25 150 32 7 70 MRGN600-A 3232-6A 32 32 170 39 7 70 2525-8A 25 25 150 34 9 45 MRGN800-A 3232-8A 32 32 170 41 9 45 3 Applicable inserts C24 C25 Stock item mm Multi functional Tools 28
