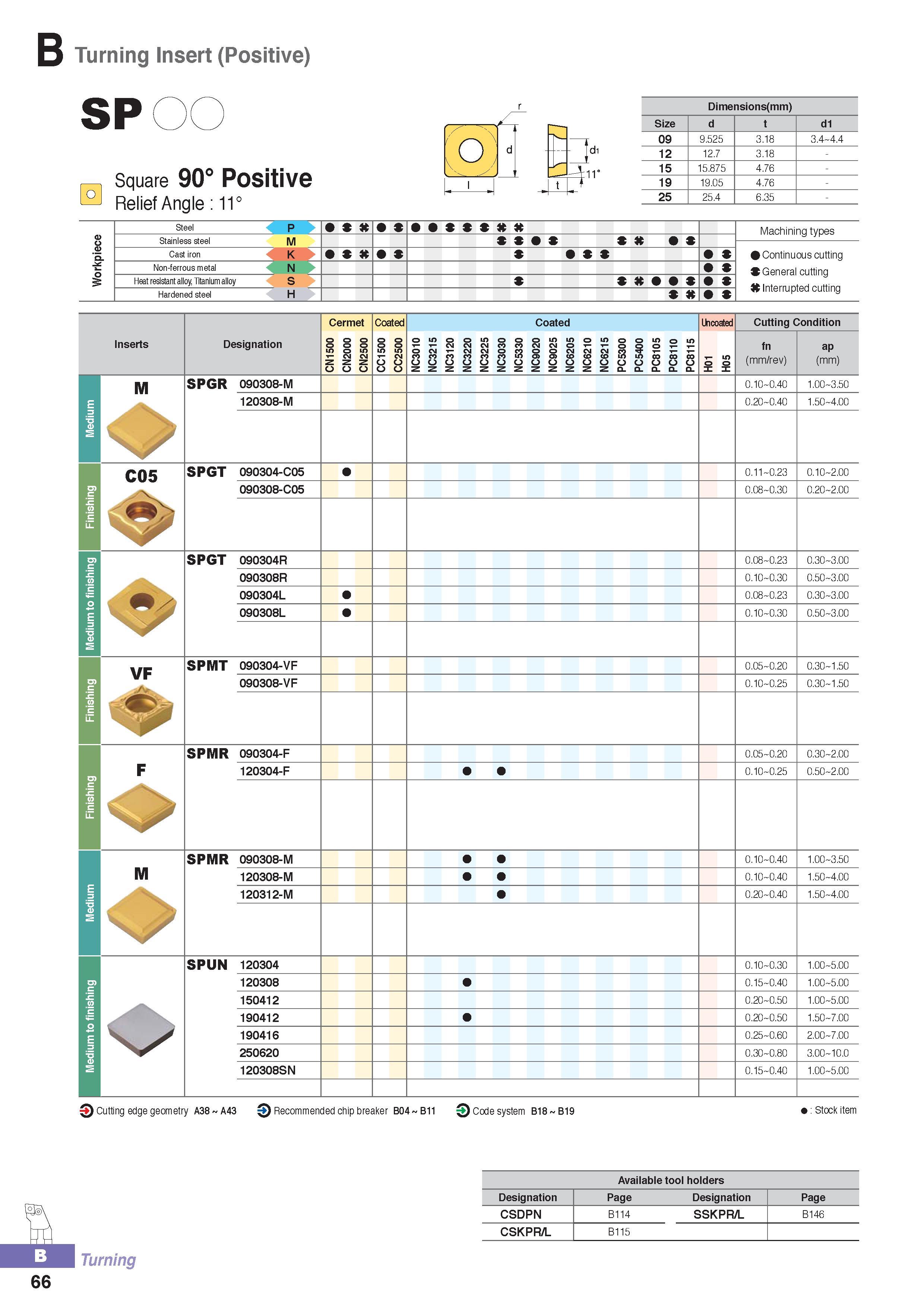

Turning Insert (Positive) SP O Square 90° Positive Relief Angle 11° o I 1 -I > 1 t r4' Dimensions (mm) Size d d1 09 9.525 3.18 3.4 4.4 12 12.7 3.18 - 15 15.875 4.76 - 19 19.05 4.76 - 25 25.4 6.35 - Steel p Machining types Stainless steel M Cast iron K Continuous cutting Non-ferrous metal N Heat resistant alloy, Titanium alloy S Hardened steel H X Inlenupled culling Inserts Designation Cermet mom w w z z z o oo Coated w Coated Uncoated Cutting Condition NC3010 NC3215 NC3120 NC3220 NC3225 NC3030 NC5330 NC9020 NC9025 NC6205 NC6210 NC6215 PC5300 PC5400 PC8105 PC8110 PC8115 H01 H05 fn (mm/rev) ap (mm) Medium M O SPGR 090308-M 0.10-0.40 1.00-3.50 120308-M 0.20-0.40 1.50-4.00 Finishing C05 SPGT 090304-C05 0.11-0.23 0.10-2.00 090308-C05 0.08 0.30 0.20-2.00 Medium to finishing SPGT 090304R 0.08-0.23 0.30-3.00 090308R 0.10-0.30 0.50-3.00 090304L 0.08-0.23 0.30-3.00 090308L 0.10-0.30 0.50-3.00 g in hi is ini Fi VF SPMT 090304-VF 0.05-0.20 0.30-1.50 090308-VF 0.10-0.25 0.30-1.50 g in hi is ini Fi F SPMR 090304-F 0.05-0.20 0.30-2.00 120304-F 0.10-0.25 0.50-2.00 m iu di e M M SPMR 090308-M 0.10-0.40 1.00-3.50 120308-M 0.10-0.40 1.50-4.00 120312-M 0.20-0.40 1.50-4.00 Medium to finishing o SPUN 120304 0.10-0.30 1.00-5.00 120308 0.15-0.40 1.00-5.00 150412 0.20-0.50 1.00-5.00 190412 0.20-0.50 1.50-7.00 190416 0.25-0.60 2.00-7.00 250620 0.30-0.80 3.00-10.0 120308SN 0.15-0.40 1.00-5.00 Cutting edge geometry A38 A43 3 Recommended chip breaker B04 B11 Code system B18 B19 Stock item Turning 66 Available tool holders Designation Page Designation Page CSDPN B114 SSKPR/L B146 CSKPR/L B115
