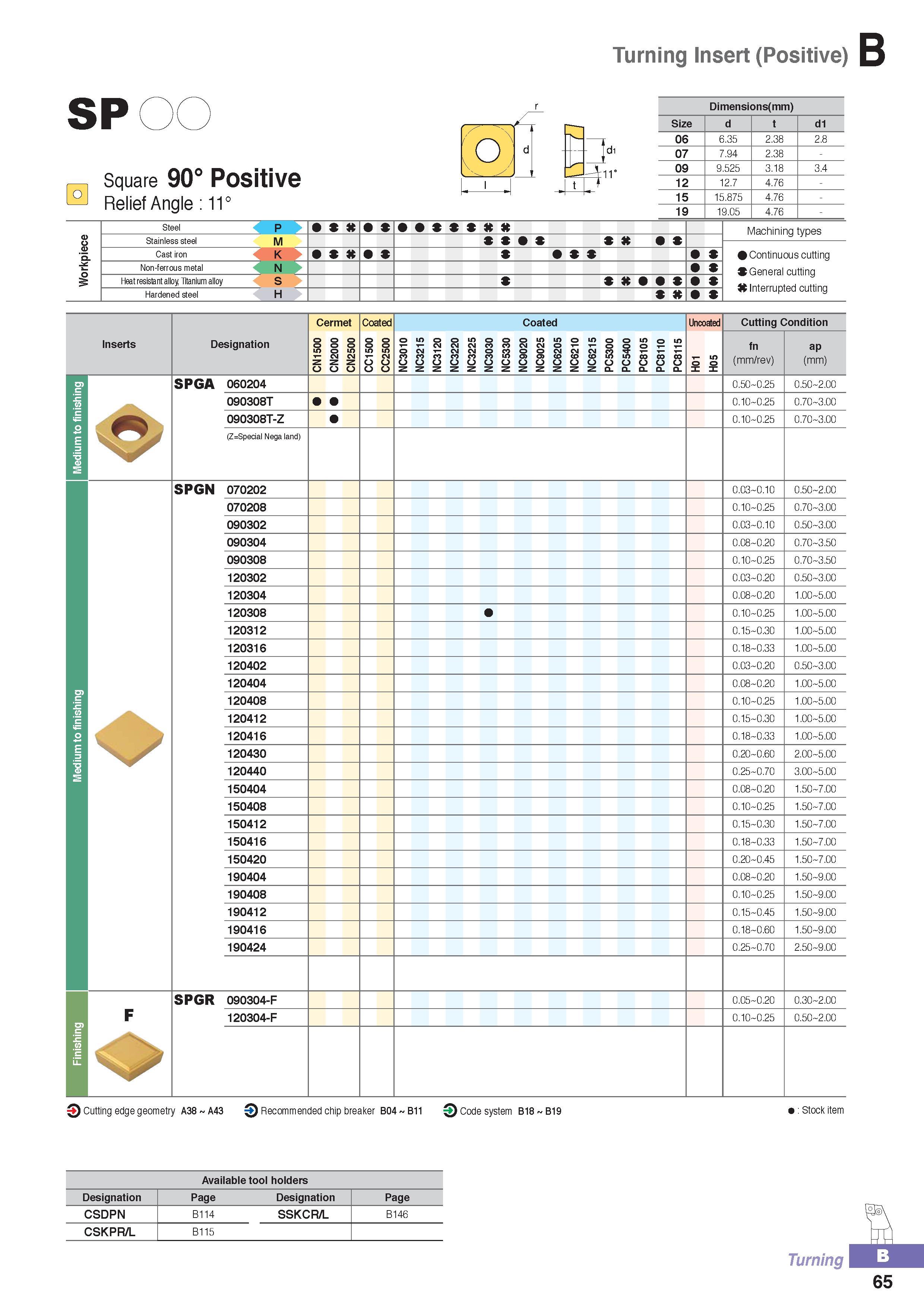

Turning Insert (Positive) SP Dimensions (mm) O Square 90° Positive Relief Angle 11° o J I > 1 t f4' Size d d1 06 6.35 2.38 2.8 07 7.94 2.38 - 09 9.525 3.18 3.4 12 12.7 4.76 - 15 15.875 4.76 - 19 19.05 4.76 - Steel p K Machining types Stainless steel M Cast iron K K Continuous cutting Non-ferrous metal N V Heat resistant alloy Titanium alloy S Hardened steel H Inleiiupled culling Inserts Designation Cermet mom w w z z z o oo Coated Coated Uncoated Cutting Condition NC3010 NC3215 NC3120 NC3220 NC3225 0 3 0 3 C N NC5330 NC9020 NC9025 NC6205 NC6210 NC6215 PC5300 PC5400 PC8105 PC8110 PC8115 H01 H05 fn (mm/rev) ap (mm) Medium to finishing <3> SPGA 060204 0.50 0.25 0.50 2.00 090308T 0.10 0.25 0.70 3.00 090308T-Z 0.10 0.25 0.70 3.00 (Z=Special Nega land) Medium to finishing SPGN 070202 0.03 0.10 0.50 2.00 070208 0.10 0.25 0.70 3.00 090302 0.03 0.10 0.50 3.00 090304 0.08 0.20 0.70 3.50 090308 0.10 0.25 0.70 3.50 120302 0.03 0.20 0.50 3.00 120304 0.08 0.20 1.00 5.00 120308 0.10 0.25 1.00 5.00 120312 0.15 0.30 1.00 5.00 120316 0.18 0.33 1.00 5.00 120402 0.03 0.20 0.50 3.00 120404 0.08 0.20 1.00 5.00 120408 0.10 0.25 1.00 5.00 120412 0.15 0.30 1.00 5.00 120416 0.18 0.33 1.00 5.00 120430 0.20 0.60 2.00 5.00 120440 0.25 0.70 3.00 5.00 150404 0.08 0.20 1.50 7.00 150408 0.10 0.25 1.50 7.00 150412 0.15 0.30 1.50 7.00 150416 0.18 0.33 1.50 7.00 150420 0.20 0.45 1.50 7.00 190404 0.08 0.20 1.50 9.00 190408 0.10 0.25 1.50 9.00 190412 0.15 0.45 1.50 9.00 190416 0.18 0.60 1.50 9.00 190424 0.25 0.70 2.50 9.00 Finishing SPGR 090304-F 0.05 0.20 0.30 2.00 120304-F 0.10 0.25 0.50 2.00 3 Cutting edge geometry A38 A43 3 Recommended chip breaker B04 B11 3 Code system B18 B19 Stock item Available tool holders Designation Page Designation Page CSDPN B114 SSKCR/L B146 CSKPR/L B115 Turning 65
