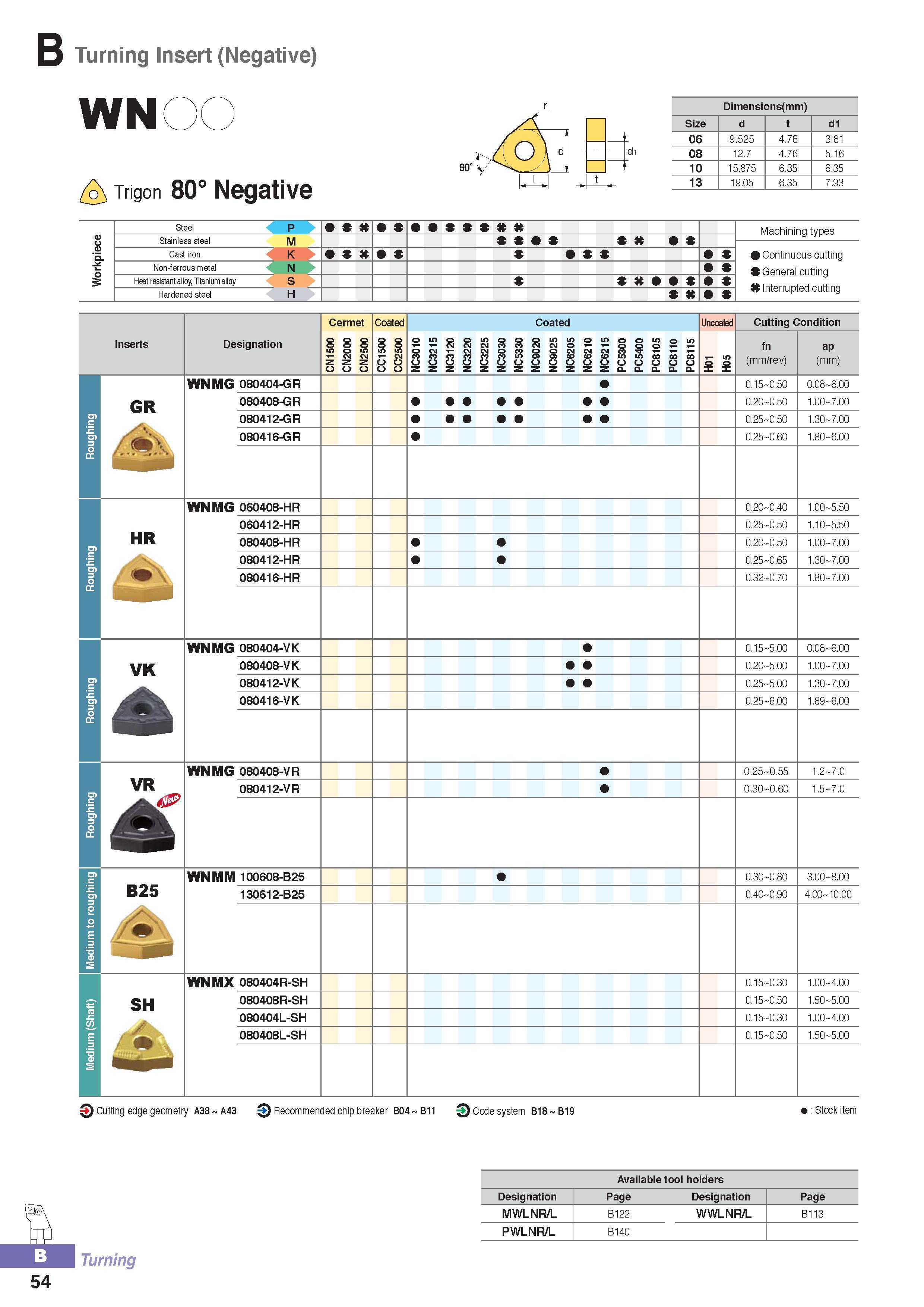

Turning Insert (Negative) WN Trigon 80° Negative Dimensions (mm) Size d d1 06 9.525 4.76 3.81 08 12.7 4.76 5.16 10 15.875 6.35 6.35 13 19.05 6.35 7.93 Steel p Machining types Stainless steel M Cast iron K Continuous cutting Non-ferrous metal N Heat resistant alloy, Titanium alloy S Hardened steel H X Inleiiupled culling Inserts Designation Cermet Coated Coated Uncoated Cutting Condition CN1500 CN2000 CN2500 CC1500 CC2500 NC3010 NC3215 NC3120 NC3220 NC3225 NC3030 NC5330 NC9020 NC9025 NC6205 NC6210 NC6215 pC5300 PC5400 PC8105 PC8110 PC8115 H01 H05 fn (mm/rev) ap (mm) GR & WNMG 080404-GR 0.15-0.50 0.08-6.00 080408-GR 0.20-0.50 1.00-7.00 080412-GR 0.25-0.50 1.30 7.00 080416-GR 0.25-0.60 1.80-6.00 HR Cm WNMG 060408-HR 0.20-0.40 1.00-5.50 060412-HR 0.25-0.50 1.10-5.50 080408-HR 0.20-0.50 1.00-7.00 080412-HR 0.25-0.65 1.30-7.00 080416-HR 0.32-0.70 1.80-7.00 VK A WNMG 080404-VK 0.15-5.00 0.08-6.00 080408-VK 0.20-5.00 1.00-7.00 080412-VK 0.25-5.00 1.30-7.00 080416-VK 0.25-6.00 1.89-6.00 VR M WNMG 080408-VR 0.25-0.55 1.2-7.0 080412-VR 0.30-0.60 1.5-7.0 B25 WNMM 100608-B25 0.30-0.80 3.00-8.00 130612-B25 0.40-0.90 4.00-10.00 SH WNMX 080404R-SH 0.15-0.30 1.00-4.00 080408R-SH 0.15-0.50 1.50-5.00 080404L-SH 0.15-0.30 1.00-4.00 080408L-SH 0.15-0.50 1.50-5.00 Cutting edge geometry A38 A43 3 Recommended chip breaker B04 B11 Code system B18 B19 Stock item Turning 54 Available tool holders Designation Page Designation Page MWLNR/L B122 WWLNR/L B113 PWLNR/L B140
