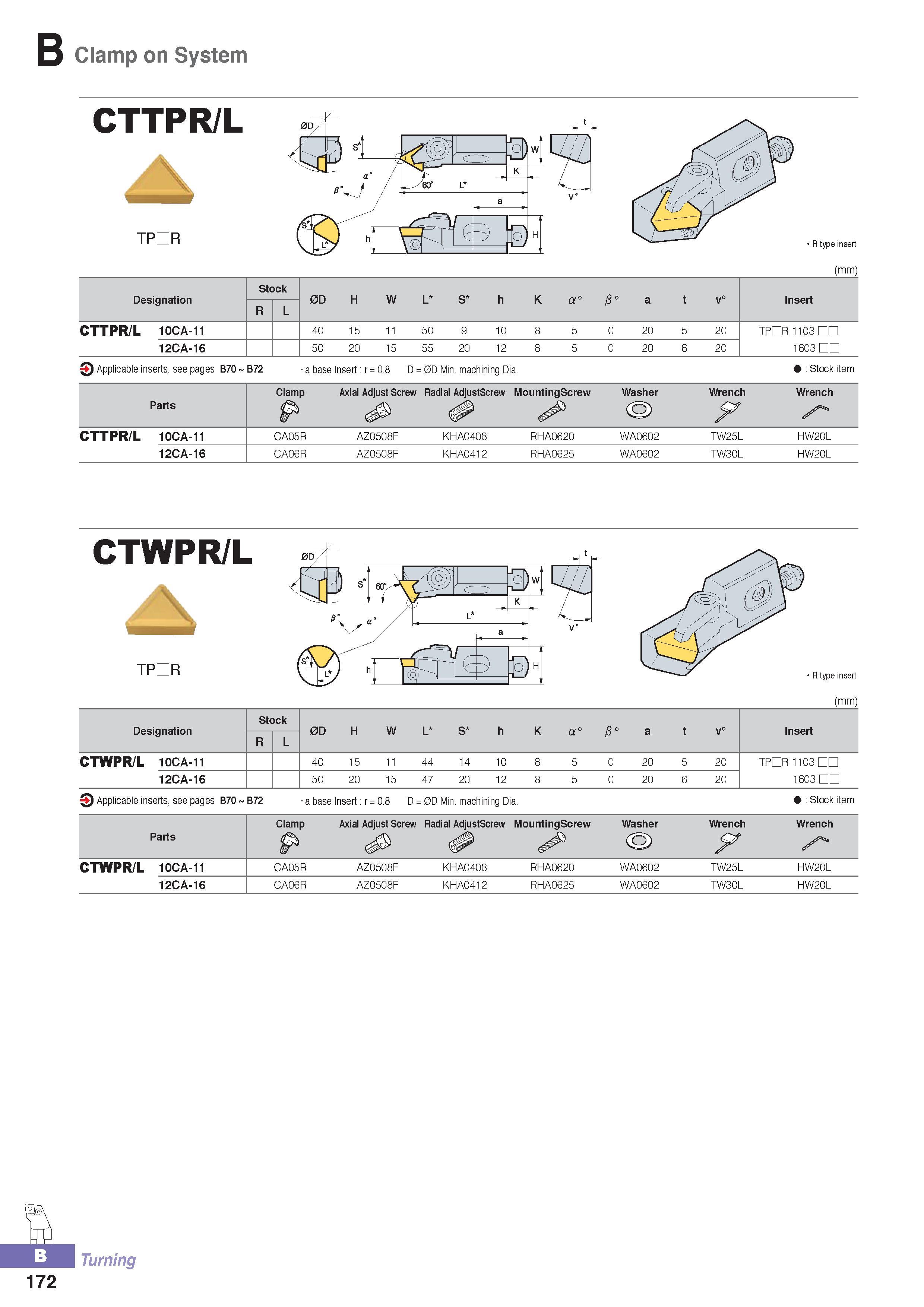

Clamp on System CTTPR/L tpdr (mm) Designation Stock 0D H W L S h K a0 8 o a t Insert R L CTTPR/L 10CA-11 40 15 11 50 9 10 8 5 0 20 5 20 TPDR 1103 12CA-16 50 20 15 55 20 12 8 5 0 20 6 20 1603 3 Applicable inserts, see pages B70 B72 a base Insert r = 0.8 D 0D Min. machining Dia. Stock item Parts Clamp P Axial Adjust Screw Radial AdjustScrew MountingScrew Washer (Q) Wrench P Wrench y CTTPR/L 10CA-11 CA05R AZ0508F KHA0408 RHA0620 WA0602 TW25L HW20L 12CA-16 CA06R AZ0508F KHA0412 RHA0625 WA0602 TW30L HW20L CTWPR/L \ tpdr (mm) Designation Stock 0D HW L S h K ffO 8 0a t Insert R L CTWPR/L 10CA-11 40 15 11 44 14 10 8 5 0 20 5 20 TPDR 1103 12CA-16 50 20 15 47 20 12 8 5 0 20 6 20 1603 3 Applicable inserts, see pages B70 B72 a base Insert r = 0.8 D 0D Min. machining Dia. Stock item Parts Clamp P Axial Adjust Screw Radial AdjustScrew MountingScrew Washer Wrench F Wrench A" CTWPR/L 10CA-11 CA05R AZ0508F KHA0408 RHA0620 WA0602 TW25L HW20L 12CA-16 CA06R AZ0508F KHA0412 RHA0625 WA0602 TW30L HW20L Turning 172
