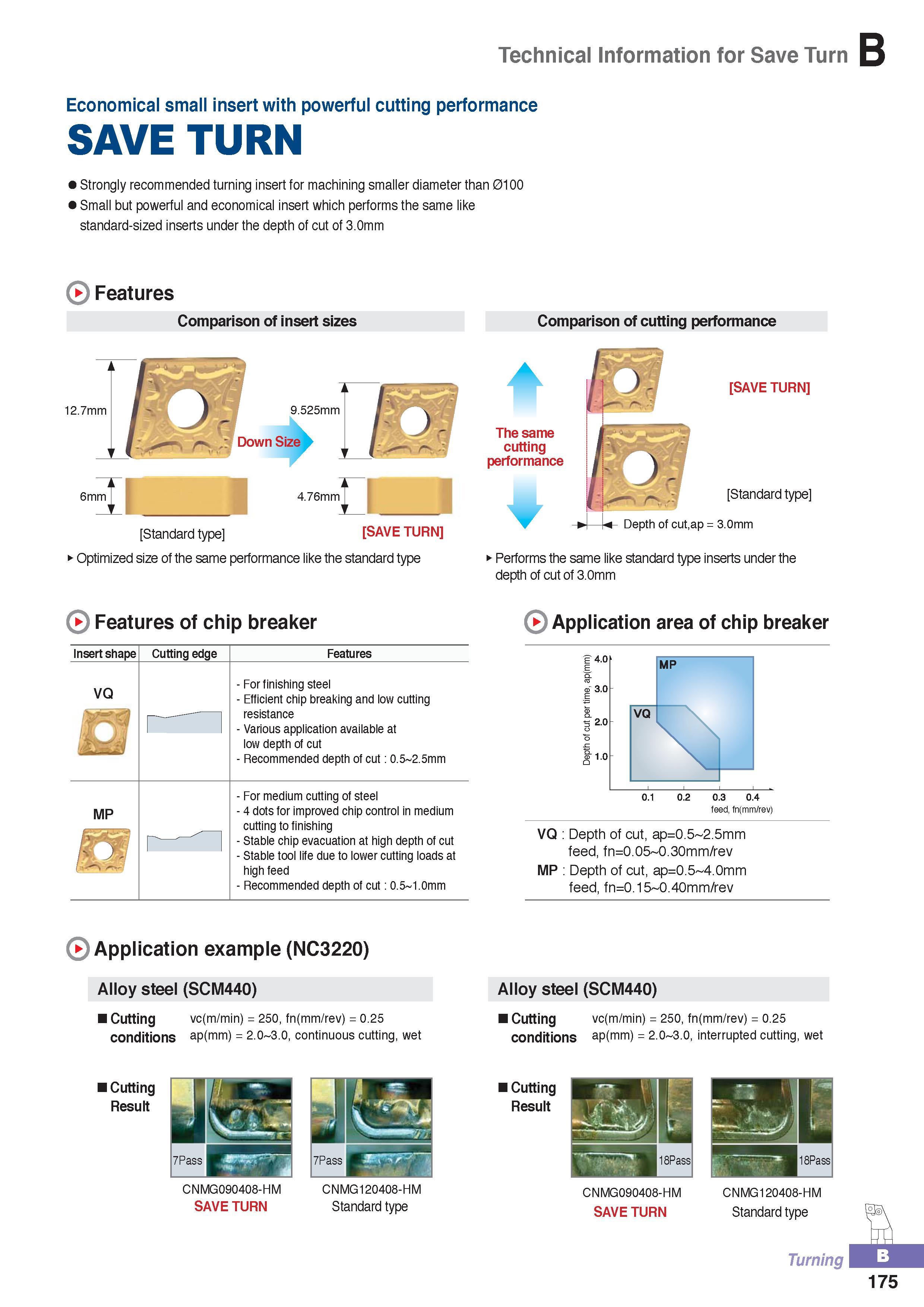

Economical turning small inserts Korloy with powerful cutting performance SAVE TURN Strongly recommended turning insert for machining smaller diameter than 0100 Small but powerful and economical insert which performs the same like standard-sized inserts under the depth of cut of 3.0mm Features Comparison of insert sizes 12.7mm 9.525mm 6mm 4.76mm Standard type SAVE TURN Optimized size of the same performance like the standard type Features of chip breaker Comparison of cutting performance SAVE TURN F -r" The same cutting performance Standard type Depth of cut,ap = 3.0mm Performs the same like standard type inserts under the depth of cut of 3.0mm Application area of chip breaker Insert shape Cutting edge Features VQ - For finishing steel - Efficient chip breaking and low cutting resistance - Various application available at low depth of cut - Recommended depth of cut 0.5 2.5mm a 1 MP - For medium cutting of steel - 4 dots for improved chip control in medium JGI cutting to finishing - Stable chip evacuation at high depth of cut - Stable tool life due to lower cutting loads at high feed MP - Recommended depth of cut 0.5 1.0mm 0.2 0.3 0.4 feed, fn(mm/rev) feed, fn=0.05 0.30mm/rev Depth of cut, ap=0.5 4.0mr feed, fn=0.15 0.40mm/rev Application example (NC3220) Alloy steel (SCM440) Cutting vc(m/min) = 250, fn(mm/rev) = 0.25 conditions ap(mm) = 2.0 3.0, continuous cutting, wet Alloy steel (SCM440) Cutting vc(m/min) = 250, fn(mm/rev) = 0.25 conditions ap(mm) = 2.0 3.0, interrupted cutting, wet l Cutting Result CNMG090408-HM SAVE TURN CNMG120408-HM Standard type l Cutting Result CNMG090408-HM SAVE TURN CNMG120408-HM Standard type Turning 175 Technical Information for Save Turn B
